ER1018-0002 | EtherCAT Box, 8-channel digital input, 24В VВ DC, 10В Вµs, M12, zinc die-cast
0,00 ₽The ER1018-0002 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M12 screw type connectors.
-
ER1098-0001 | EtherCAT Box, 8-channel digital input, 24В VВ DC, 10В Вµs, ground switching, M8, zinc die-cast
0,00 ₽The ER1098-0001 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M8 screw type connectors.
-
ER1258-0001 | EtherCAT Box, 8-channel digital input, 24В VВ DC, 1В Вµs, M8, timestamp, zinc die-cast
0,00 ₽The ER1258-0001 EtherCAT Box with digital inputs acquires the fast binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The signals are furnished with a timestamp that identifies the time of the last edge change with a resolution of 1В ns. This technology enables signals to be traced exactly over time and synchronized with the distributed clocks across the system. With this technology, machine-wide parallel hardware wiring of digital inputs or encoder signals for synchronization purposes is often no longer required. In this way, the ER1258-0001 enables responses with equidistant time intervals, largely independent of the bus cycle time.
-
ER1258-0002 | EtherCAT Box, 8-channel digital input, 24В VВ DC, 1В Вµs, M12, timestamp, zinc die-cast
0,00 ₽The ER1258-0002 EtherCAT Box with digital inputs acquires the fast binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The signals are furnished with a timestamp that identifies the time of the last edge change with a resolution of 1В ns. This technology enables signals to be traced exactly over time and synchronized with the distributed clocks across the system. With this technology, machine-wide parallel hardware wiring of digital inputs or encoder signals for synchronization purposes is often no longer required. In this way, the ER1258-0002 enables responses with equidistant time intervals, largely independent of the bus cycle time.
-
ER1518-0002 | EtherCAT Box, 8-channel digital input, counter, 24В VВ DC, 1В kHz, M12, zinc die-cast
0,00 ₽The ER1518-0002 EtherCAT Box with digital inputs acquires binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The signal state is displayed by light emitting diodes. The signals are connected via M12 screw type connectors. The input filters can be set between 0В and 100В ms via EtherCAT. Inputs 0 and 4 can be used as 32-bit up/down counters.
-
ER1809-0022 | EtherCAT Box, 16-channel digital input, 24В VВ DC, 3В ms, M12, zinc die-cast
0,00 ₽The ER1809-0022 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M12 screw type connectors.
-
ER1819-0021 | EtherCAT Box, 16-channel digital input, 24В VВ DC, 10В Вµs, M8, zinc die-cast
0,00 ₽The ER1819-0021 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M8 screw type connectors.
-
ER1819-0022 | EtherCAT Box, 16-channel digital input, 24В VВ DC, 10В Вµs, M12, zinc die-cast
0,00 ₽The ER1819-0022 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M12 screw type connectors.
-

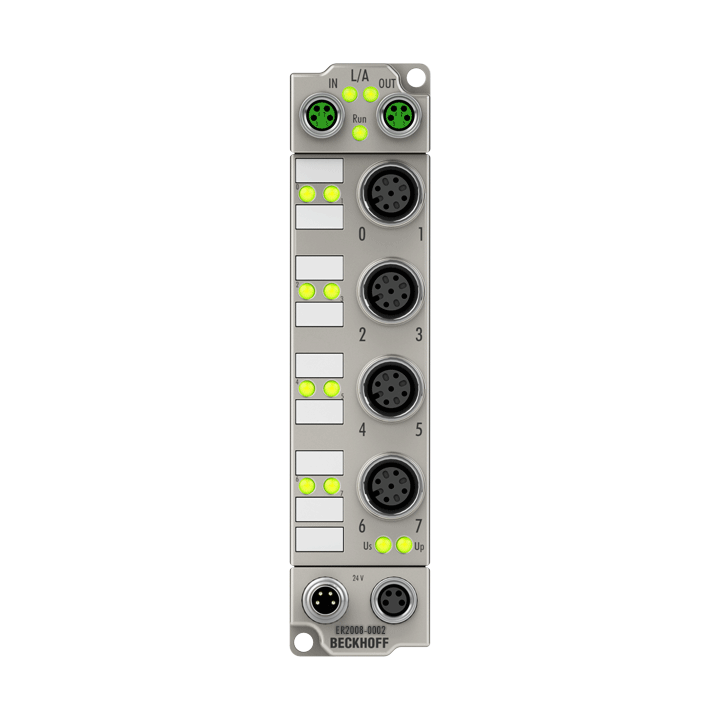

ER2008-0002 | EtherCAT Box, 8-channel digital output, 24В VВ DC, 0.5В A, M12, zinc die-cast
0,00 ₽The ER2008-0002 EtherCAT Box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 0.5В A and indicate their status through light emitting diodes. The signals are connected via M12 screw type connectors. The outputs are short-circuit proof and protected against inverse connection.
-
ER2028-0001 | EtherCAT Box, 8-channel digital output, 24В VВ DC, 2В A, M8, zinc die-cast
0,00 ₽The ER2028-0001 EtherCAT Box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 2В A each, although the total current is limited to 4В A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time, or in which not all of the actuators draw 2В A signal current.
-
ER2038-0001 | EtherCAT Box, 8-channel digital output, 24В VВ DC, 2В A, M8, with diagnostics, zinc die-cast
0,00 ₽The ER2038-0001 EtherCAT Box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 2В A each, although the total current is limited to 4В A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time, or in which not all of the actuators draw 2В A signal current.
-
ER2308-0002 | EtherCAT Box, 4-канальный цифровой вход + 4-канальный цифровой выход, 24 В В постоянного тока, 3 В мс, 0,5 В А, M12, цинковое литье под давлением
0,00 ₽The ER2308-0002 EtherCAT Box combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5В A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via screw type M12 connectors.
-

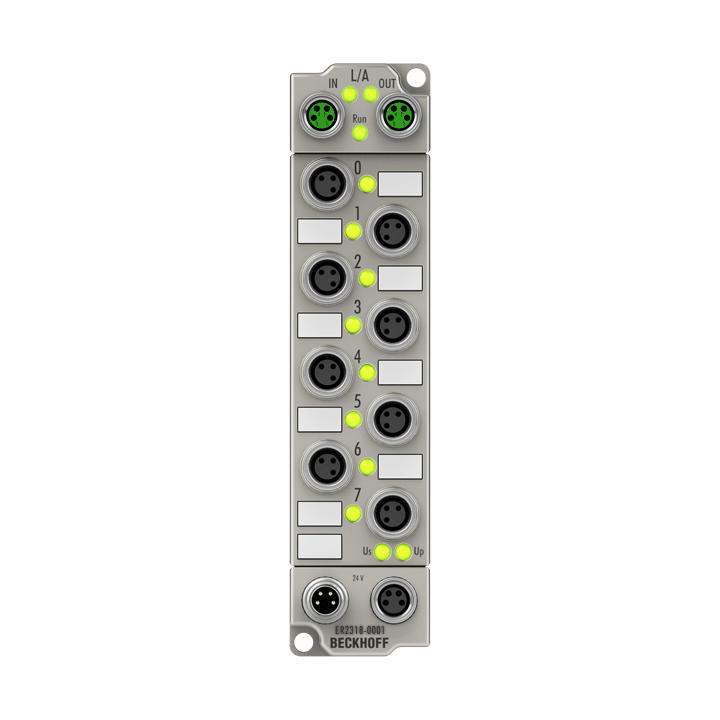

ER2318-0001 | EtherCAT Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 10В Вµs, 0.5В A, M8, zinc die-cast
0,00 ₽The ER2318-0001 EtherCAT Box combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5В A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via screw type M8 connectors.
-
ER2318-0002 | EtherCAT Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 10В Вµs, 0.5В A, M12, zinc die-cast
0,00 ₽The ER2318-0002 EtherCAT Box combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5В A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via screw type M12 connectors.
-
ER2338-1001 | EtherCAT Box, 8-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M8, zinc die-cast
0,00 ₽EtherCAT Box ER2338-1001 имеет восемь цифровых каналов, каждый из которых может опционально работать как вход или как выход. Конфигурация для использования канала как входа или выхода не требуется, входная цепь внутренне подключена к выходному драйверу, так что установленный выход автоматически отображается в образе входного процесса.
-
ER2338-1002 | EtherCAT Box, 8-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M12, zinc die-cast
0,00 ₽The ER2338-1002 EtherCAT Box has eight digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary, the input circuit is internally connected to the output driver, so that a set output is displayed automatically in the input process image.
-
ER2338-1002 | EtherCAT Box, 8-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M12, zinc die-cast
0,00 ₽The ER2338-1002 EtherCAT Box has eight digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary, the input circuit is internally connected to the output driver, so that a set output is displayed automatically in the input process image.
-

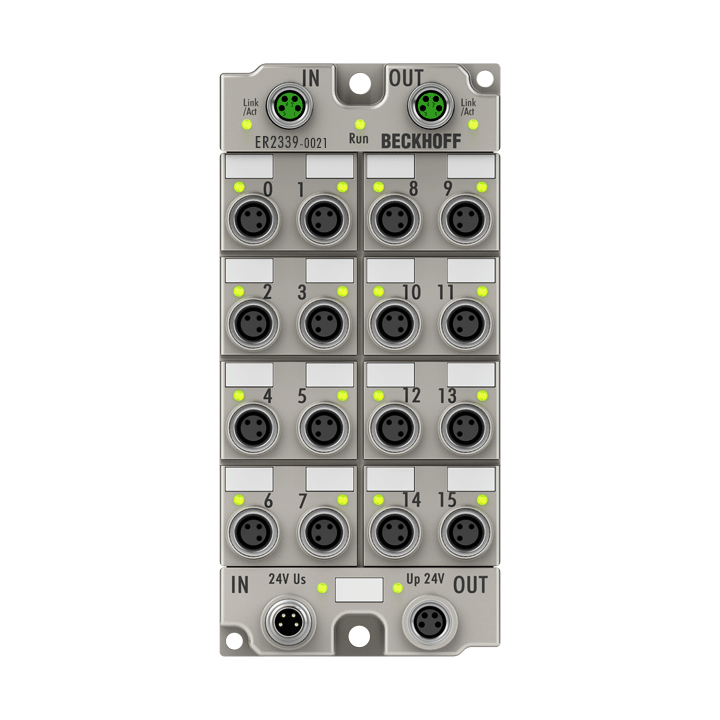

ER2339-0021 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M8, zinc die-cast
0,00 ₽EtherCAT Box ER2339-0021 имеет 16 цифровых каналов, каждый из которых может опционально работать как вход или как выход. Конфигурация для использования канала как входа или выхода не требуется, входная цепь внутренне подключена к выходному драйверу, так что установленный выход автоматически отображается в образе входного процесса.
-
ER2339-0021 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M8, zinc die-cast
0,00 ₽The ER2339-0021 EtherCAT Box has 16 digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary, the input circuit is internally connected to the output driver, so that a set output is displayed automatically in the input process image.
-
ER2349-0021 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 10В Вµs, 0.5В A, M8, zinc die-cast
0,00 ₽The ER2349-0021 EtherCAT Box has 16 digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary, the input circuit is internally connected to the output driver, so that a set output is displayed automatically in the input process image.
-

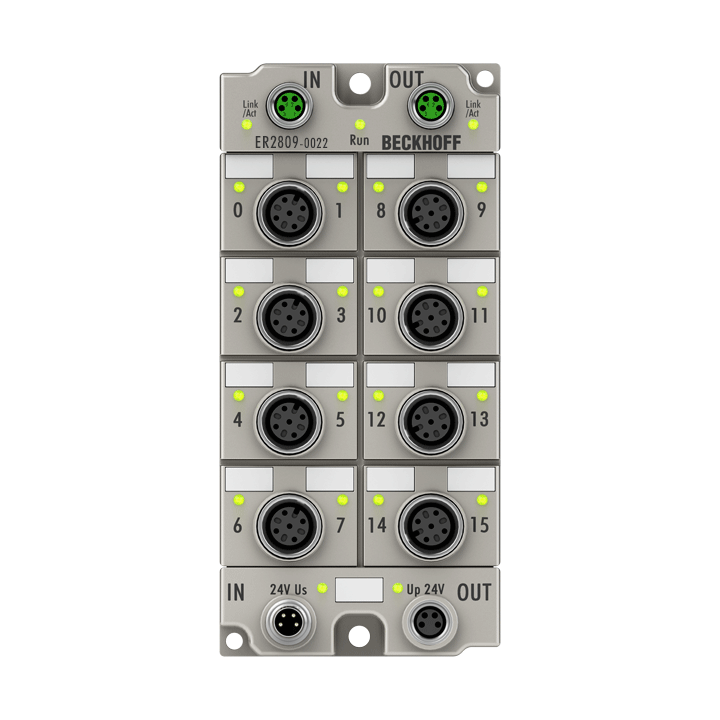

ER2809-0022 | EtherCAT Box, 16-channel digital output, 24В VВ DC, 0.5В A, M12, zinc die-cast
0,00 ₽The ER2809-0022 EtherCAT Box with digital outputs connects the binary control signals from the controller on to the actuators at the process level. The 16 outputs handle load currents of up to 0.5В A each, although the total current is limited to 4В A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time, or in which not all of the actuators draw 0.5В A current.
-

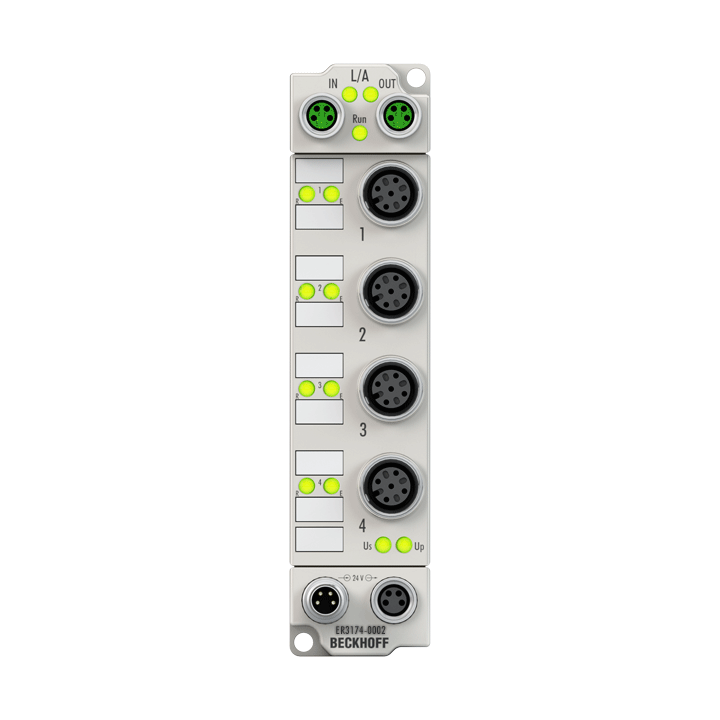

ER3174-0002 | EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12, zinc die-cast
0,00 ₽The ER3174-0002 EtherCAT Box has four analog inputs which can be individually parameterized, so that they process signals either in the -10…+10В V or the 0/4…20В mA range. The voltage or input current is digitized with a resolution of 16В bits, and is transmitted (electrically isolated) to the higher-level automation device. The four input channels have differential inputs and possess a common, internal ground potential. The input filter and therefore the conversion times are configurable in a wide range. If required, the inputs can be scaled differently, and automatic limit monitoring is also available. EtherCAT is used for parameterization purposes. The parameters are stored in the module.
-
ER3184-0002 | EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12, zinc die-cast
0,00 ₽The ER3184-0002 EtherCAT Box has four analog inputs which can be individually parameterized, so that they process signals either in the -10/0…+10В V or the 0/4…20В mA range. The voltage or input current is digitized with a resolution of 16В bits, and is transmitted (electrically isolated) to the higher-level automation device. The four input channels are single-ended inputs and possess a common, internal ground potential. The input filter and therefore the conversion times are configurable in a wide range. If required, the inputs can be scaled differently, and automatic limit monitoring is also available. EtherCAT is used for parameterization purposes. The parameters are stored in the module.
-
ER3184-1002 | EtherCAT Box, 4-канальный аналоговый вход, многофункциональный, ±10 В В, 0/4×20 В мА, 16 В бит, несимметричный, M12, литой цинк
0,00 ₽EtherCAT Box ER3184-1002 имеет четыре аналоговых входа, которые могут быть индивидуально параметризованы, так что они обрабатывают сигналы либо в диапазоне -10/0…+10 В, либо 0/4…20 мА. Напряжение или входной ток оцифровываются с разрешением 16 бит и передаются (электрически изолированно) на устройство автоматизации более высокого уровня. Четыре входных канала являются несимметричными входами и имеют общий внутренний потенциал заземления. Входной фильтр и, следовательно, время преобразования настраиваются в широком диапазоне. При необходимости входы можно масштабировать по-разному, а также доступен автоматический контроль пределов. EtherCAT используется для параметризации. Параметры хранятся в модуле. Сигнальное соединение выполнено по 2 канала на гнездо M12, гнезда 2 и 4 не используются.
-
ER3204-0002 | EtherCAT Box, 4-канальный аналоговый вход, температура, RTD (Pt100), 16 В бит, M12, цинковое литье под давлением
0,00 ₽The ER3204-0002 EtherCAT Box with analog inputs allows resistance sensors to be connected directly. The module’s circuitry can operate the sensors using 2-, 3- or 4-wire connection techniques. Linearization over the full temperature range is realized with the aid of a microprocessor. The temperature range can be selected freely. The module can also be used for simple resistance measurement with the output in ohms. The module’s standard settings are: resolution 0.1В°C in the temperature range of Pt100 sensors in 2-wire connection. Sensor malfunctions such as broken wires are indicated by error LEDs. The module is quite versatile, but the default values are selected in such a way that in most cases it is not necessary to perform configuration. The input filter and associated conversion times can be set within a wide range, several data output formats may be chosen. If required, the inputs can be scaled differently. Automatic limit monitoring is also available. Parameterization is carried out via EtherCAT.
-
ER6001-0002 | EtherCAT Box, 1-channel communication interface, serial, RS232/RS422/RS485, M12, zinc die-cast
0,00 ₽The ER6001-0002 serial interface module allows the connection of devices with an RS232 or RS422/RS485 interface. The module transmits the data in a fully transparent manner to the higher-level automation device. The active serial communication channel functions independently of the higher-level bus system in full duplex mode at up to 115,200 baud, while a 864 byte receive buffer and a 128 byte send buffer are available. The 1-channel version has an increased end device power supply of up to 1В A, the connector assignment depends on the selected interface. The two integrated digital inputs/outputs allow the connection of additional sensors/actuators in order, for example, to trigger the reading process of the barcode reader or, depending on the result, to initiate an action. In conjunction with the TwinCAT Virtual Serial COM Driver the ER6001-0002 can be used as a normal Windows COM interface.
-
ER6002-0002 | EtherCAT Box, 2-канальный интерфейс связи, последовательный, RS232/RS422/RS485, M12, цинковое литье под давлением
0,00 ₽The ER6002-0002 serial interface module allows the connection of devices with an RS232 or RS422/RS485 interface. The module transmits the data in a fully transparent manner to the higher-level automation device. The data is transferred via the fieldbus using a simple handshake protocol. This does not have any effect on the protocol of the serial interface. The active serial communication channel functions independently of the higher-level bus system in full duplex mode at up to 115,200 baud, while a 864 byte receive buffer and a 128 byte send buffer are available.
-
ER7041-3002 | EtherCAT Box, 1-channel motion interface, stepper motor, 48В VВ DC, 5В A, for high-speed applications, M12, with incremental encoder, zinc die-cast
0,00 ₽EtherCAT Box ER7041-3002 предназначен для прямого подключения различных шаговых двигателей. Выходные каскады ШИМ для двух катушек двигателя охватывают широкий диапазон напряжения и тока. ER7041-3002 можно настроить под двигатель и приложение, изменив всего несколько параметров. 256-кратный микрошаг обеспечивает особенно тихую и точную работу двигателя. Подключение инкрементного энкодера позволяет реализовать простую сервоось. Два цифровых входа и цифровой выход 0,5 В A позволяют подключать концевые выключатели и тормоз двигателя.
