EL4004 | EtherCAT Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit
0,00 ₽The EL4004 analog output terminal generate signals in the range between 0В and 10В V. The voltage is supplied to the process level with a resolution of 12В bits and is electrically isolated. The output channels of the EtherCAT Terminal have a common ground potential. The EL4004 has four channels. The output stages are powered by the 24В V supply. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
-
EL4012 | EtherCAT Terminal, 2-channel analog output, current, 0…20 mA, 12 bit
0,00 ₽The EL4012 analog output terminal generates analog output signals in the range between 0В and 20В mA. The power is supplied to the process level with a resolution of 12В bits and is electrically isolated. Ground potential for the output channels of an EtherCAT Terminal is common with the 0В VВ DC supply. The output stages are powered by the 24В VВ supply. The EL4012 combines two channels in one housing. The EtherCAT Terminal indicates its signal state by means of light emitting diodes.
-
EL4014 | EtherCAT Terminal, 4-channel analog output, current, 0…20 mA, 12 bit
0,00 ₽The EL4014 analog output terminal generates analog output signals in the range between 0В and 20В mA. The power is supplied to the process level with a resolution of 12В bits and is electrically isolated. Ground potential for the output channels of the EtherCAT Terminal is common with the 24В VВ DC supply. The output stages are powered by the 24В V supply. The EL4014 has four channels. The EtherCAT Terminal indicates its signal state by means of light emitting diodes.
-
EL4021 | EtherCAT Terminal, 1-channel analog output, current, 4…20 mA, 12 bit
0,00 ₽The EL4021 analog output terminal generates signals in the range between 4В and 20В mA. The power is supplied to the process level with a resolution of 12В bits and is electrically isolated. Ground potential for the output channels of the EtherCAT Terminal is common with the 24В VВ DC supply. The output stages are powered by the 24В V supply. The EL4021 is the single-channel variant. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
-
EL4028 | Терминал EtherCAT, 8-канальный аналоговый выход, ток, 4–20 мА, 12 бит
0,00 ₽The EL4028 analog output terminal generates signals in the range between 4В and 20В mA. The power is supplied to the process level with a resolution of 12В bits and is electrically isolated. Ground potential for the output channels of the EtherCAT Terminal is common with the 24В VВ DC supply. The output stages are powered by the 24В V supply. The EL4028 combines eight channels in one housing. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
-
EL4031 | Терминал EtherCAT, 1-канальный аналоговый выход, напряжение, ±10 В В, 12 В бит
0,00 ₽Аналоговый выходной терминал EL4031 генерирует сигналы в диапазоне от -10В до +10В В. Напряжение подается на уровень процесса с разрешением 12В бит и электрически изолировано. Выходные каналы терминала EtherCAT имеют общий потенциал земли. EL4031 — это одноканальный вариант, который в сочетании с EL95xx особенно подходит для сигналов с электрически изолированными потенциалами земли. Выходные каскады питаются от источника питания 24В В. Состояние сигнала терминала EtherCAT отображается светодиодами.
-
EL4032 | EtherCAT Terminal, 2-channel analog output, voltage, В±10В V, 12В bit
0,00 ₽The EL4032 analog output terminal generates signals in the range between -10В and +10В V. The voltage is supplied to the process level with a resolution of 12В bits and is electrically isolated. The output channels of the EtherCAT Terminal have a common ground potential. The EL4032 combines two channels in one housing. The output stages are powered by the 24В V supply. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
-
EL4034 | EtherCAT Terminal, 4-channel analog output, voltage, В±10В V, 12В bit
0,00 ₽Аналоговый выходной терминал EL4034 генерирует сигналы в диапазоне от -10В до +10В В. Напряжение подается на уровень процесса с разрешением 12В бит и электрически изолировано. Выходные каналы терминала EtherCAT имеют общий потенциал земли. EL4034 имеет четыре канала. Выходные каскады питаются от источника 24В В. Состояние сигнала терминала EtherCAT отображается светодиодами.
-

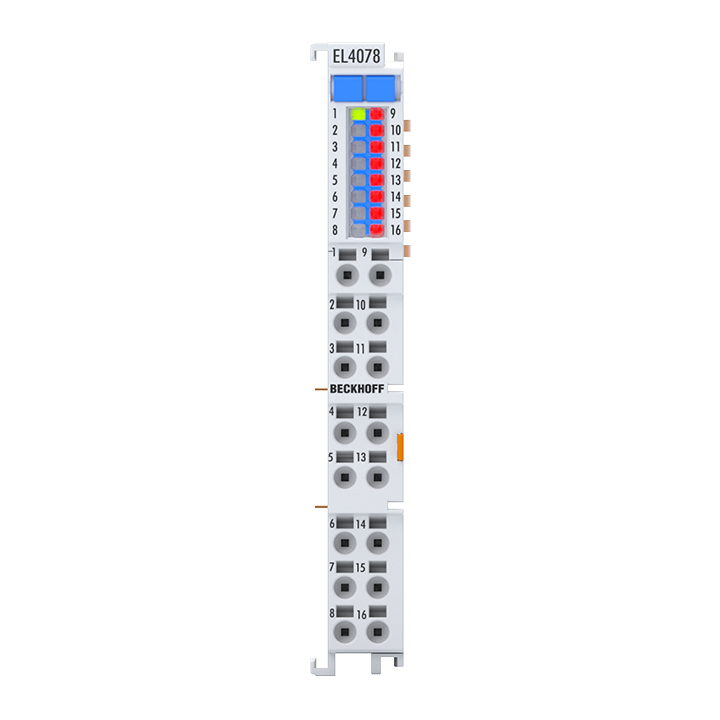

EL4078 | Терминал EtherCAT, 8-канальный аналоговый выход, многофункциональный, ±10 В В, ±20 В мА, 16 В бит, 2 В kspsНовый
0,00 ₽The EL4072, EL4074, and EL4078 analog output terminals output 10В V/20В mA standard signals with 16-bit resolution and up to 2000В values per second. Each channel can be parameterized individually via the controller/TwinCAT. All known standard signals in the range of В±10В V and В±20В mA can be output per channel – for example, 4…20 mA. The current outputs can also drive high burden resistors and report an overload or wire break or, in the case of a voltage output, a short circuit. The voltage and current outputs are designed as single-ended, which means that one connection point of each channel is already connected in the terminal to +24В V or GND and no longer needs to be wired separately. The EL4072 and EL4074 have 24В V/0В V contacts for the supply of the actuators. With a technical output range of В±107% of the nominal range, the channels can even transport unconventional setpoints, such as for error reporting purposes.
-
EL4102 | EtherCAT Terminal, 2-channel analog output, voltage, 0…10 V, 16 bit
0,00 ₽The EL4102 analog output terminal generates signals in the range between 0В and 10В V. The voltage is supplied to the process level with a resolution of 16В bits and is electrically isolated. The output channels of the EtherCAT Terminal have a common ground potential. The EL4102 combines two channels in one housing. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
-
EL4112 | EtherCAT Terminal, 2-channel analog output, current, 0…20 mA, 16 bit
0,00 ₽The EL4112 analog output terminal generates analog output signals in the range between 0В and 20В mA. The power is supplied to the process level with a resolution of 16В bits and is electrically isolated. Ground potential for the output channels of an EtherCAT Terminal is common with the 0В VВ DC supply. The output stages are powered by the 24В VВ supply. The EL4112 combines two channels in one housing. The EtherCAT Terminal indicates its signal state by means of light emitting diodes.
-

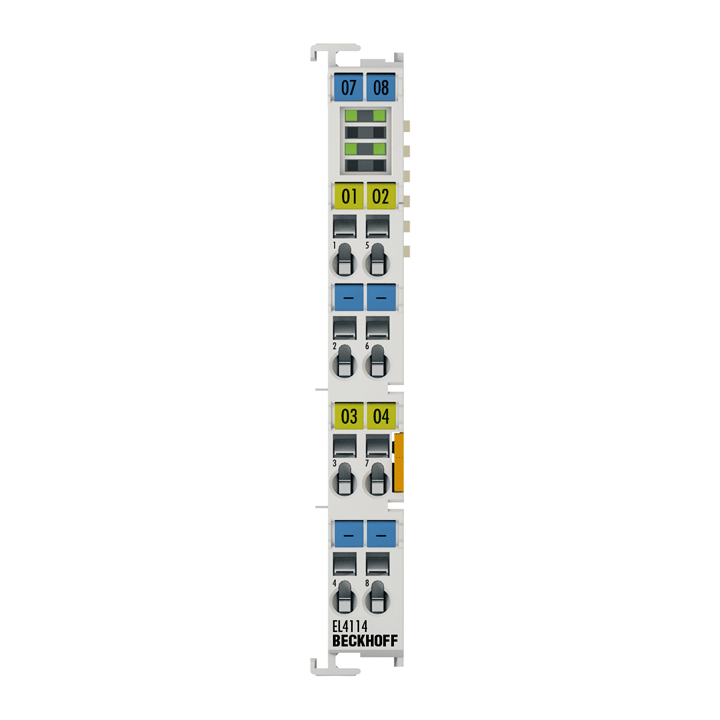

EL4114 | EtherCAT Terminal, 4-channel analog output, current, 0…20 mA, 16 bit
0,00 ₽The EL4114 analog output terminal generates analog output signals in the range between 0В and 20В mA. The power is supplied to the process level with a resolution of 16В bits and is electrically isolated. Ground potential for the output channels of the EtherCAT Terminal is common with the 24В VВ DC supply. The output stages are powered by the 24В V supply. The EL4114 has four channels. The EtherCAT Terminal indicates its signal state by means of light emitting diodes.
-
EL4122 | EtherCAT Terminal, 2-channel analog output, current, 4…20 mA, 16 bit
0,00 ₽The EL4122 analog output terminal generates signals in the range between 4В and 20В mA. The power is supplied to the process level with a resolution of 16В bits and is electrically isolated. Ground potential for the output channels of the EtherCAT Terminal is common with the 24В VВ DC supply. The output stages are powered by the 24В V supply. The EL4122 combines two channels in one housing. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
-
EL4124 | Терминал EtherCAT, 4-канальный аналоговый выход, ток, 4–20 мА, 16 бит
0,00 ₽Аналоговый выходной терминал EL4124 генерирует сигналы в диапазоне от 4 до 20 мА. Питание подается на уровень процесса с разрешением 16 бит и электрически изолировано. Потенциал заземления для выходных каналов терминала EtherCAT является общим с источником питания 24 В постоянного тока. Выходные каскады питаются от источника питания 24 В. EL4124 имеет четыре канала. Состояние сигнала терминала EtherCAT отображается светодиодами.
-
EL4132 | EtherCAT Terminal, 2-channel analog output, voltage, В±10В V, 16В bit
0,00 ₽Аналоговый выходной терминал EL4132 генерирует сигналы в диапазоне от -10В до +10В В. Напряжение подается на уровень процесса с разрешением 16В бит и электрически изолировано. Выходные каналы терминала EtherCAT имеют общий потенциал земли. EL4132 объединяет два канала в одном корпусе. Состояние сигнала терминала EtherCAT отображается светодиодами.
-
EL4134 | EtherCAT Terminal, 4-channel analog output, voltage, В±10В V, 16В bit
0,00 ₽The EL4134 analog output terminal generates signals in the range between -10В and +10В V. The voltage is supplied to the process level with a resolution of 16В bits and is electrically isolated. The output channels of the EtherCAT Terminal have a common ground potential. The EL4134 has four channels. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
-
EL4172 | EtherCAT Terminal, 2-channel analog output, multi-function, В±10В V, В±20В mA, 16В bit, 10 kspsNew
0,00 ₽The EL4172 and EL4174 analog output terminals output 10В V/20В mA standard signals with 16-bit resolution and up to 10,000В values per second – even with distributed clocks if necessary. Each channel can be parameterized individually using the control/TwinCAT and supports all common standard signals in the В±10В V and В±20В mA range, such as 4…20В mA. The current outputs can drive high load resistances and are equipped with 24В V/0В V contacts to supply actuators. With an extended output range of В±107В %, unconventional setpoints can also be output – for error reporting purposes, as an example.
-
EL4174 | EtherCAT Terminal, 4-channel analog output, multi-function, В±10В V, В±20В mA, 16В bit, 10 kspsNew
0,00 ₽The EL4172 and EL4174 analog output terminals output 10В V/20В mA standard signals with 16-bit resolution and up to 10,000В values per second – even with distributed clocks if necessary. Each channel can be parameterized individually using the control/TwinCAT and supports all common standard signals in the В±10В V and В±20В mA range, such as 4…20В mA. The current outputs can drive high load resistances and are equipped with 24В V/0В V contacts to supply actuators. With an extended output range of В±107В %, unconventional setpoints can also be output – for error reporting purposes, as an example.
-

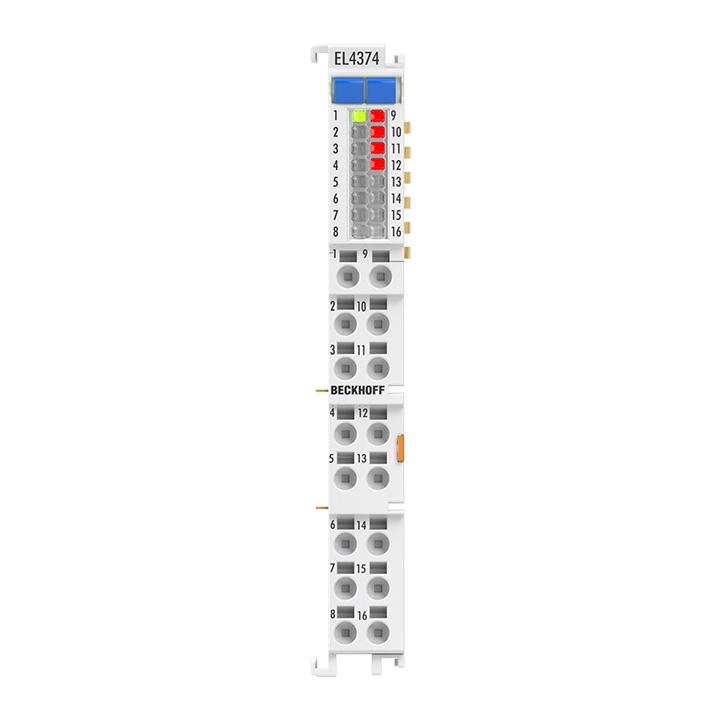

EL4374 | EtherCAT Terminal, 2-channel analog input + 2-channel analog output, multi-function, В±10В V, В±20В mA, 16В bit, 2В kspsNew
0,00 ₽The EL4374 analog input terminal combines two analog inputs and two analog outputs that can be individually parameterized by the controller/TwinCAT via CoE for current or voltage operation. Depending on the setting, the channels process signals with 2В ksps in the range of -10/0 to +10В V or -20/0/+4 to +20В mA.
-

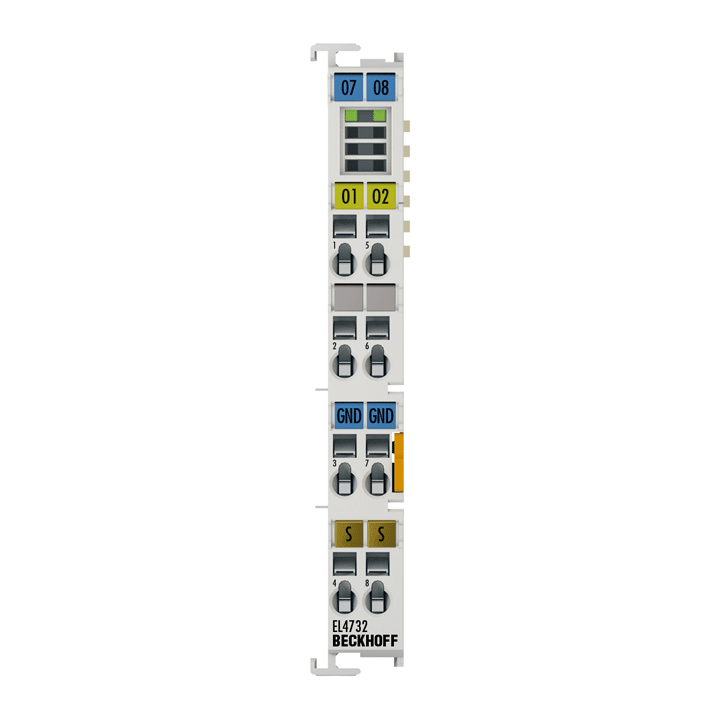

EL4732 | EtherCAT Terminal, 2-channel analog output, voltage, В±10В V, 16В bit, oversampling
0,00 ₽The EL4732 analog output terminal generates signals in the range between -10В V and +10В V. The voltage is supplied to the process level with a resolution of 16В bits and is electrically isolated. The output channels have a common ground potential. The outputs are oversampled with an adjustable, integer multiple (oversampling factor: n) of the bus cycle frequency (n microcycles per bus cycle). For each bus cycle, the EtherCAT Terminal receives a process data block that is output consecutively. The time base of the terminal can be synchronized precisely with other EtherCAT devices via distributed clocks. This procedure enables the temporal resolution of the analog output signals to be increased to n times the bus cycle time. In conjunction with the EL37xx (analog input terminal with oversampling), responses with equidistant time intervals, e.g. in the event of a threshold value being exceeded, become possible. The EL4732 device can output a maximum of 100,000В values (100В ksamples/s) per channel and second.
-
ELX4154 | EtherCAT Terminal, 4-channel analog output, current, 0/4…20 mA, 16 bit, single-ended, Ex i
0,00 ₽The ELX4154 analog output terminal is used for the direct connection of intrinsically safe field devices located in hazardous areas classified zone 0/20 or 1/21. It can be used, for example, to control intrinsically safe controllers for control valves. The output current range can be switched between 0…20В mA and 4…20В mA.
