KL4414 | Bus Terminal, 4-channel analog output, current, 0вЂ¦20В mA, 12В bit, single-ended

The KL4414 analog output terminal generates signals in the range between 0В to 20В mA. The power is supplied to the process level with a resolution of 12В bits and is electrically isolated. The output stage is powered by the 24В V supply. In the KL4414 Bus Terminal, the four outputs are 2-wire versions.

0,00 ₽

Артикул: KL4414 Категорий: Bus Terminals, Home Page, I/O, KL4xxx | Analog output, Products

Описание

Technical dataKL4414

Technology	single-ended
Number of outputs	4
Power supply	24 V DC via power contacts (alternative 15 V DC with power supply terminal KL9515)
Signal current	0вЂ¦20 mA
Load
Output error
Resolution	12 bit
Conversion time	~ 4 ms
Electrical isolation	500 V (K-bus/signal voltage)
Current consumption power contacts	typ. 60 mA + load
Current consumption K-bus	typ. 20 mA
Bit width in the process image	output: 4 x 16В bit data (4 x 8В bit control/status optional)
Weight	approx. 75 g
Operating/storage temperature	-25вЂ¦+60В°C/-40вЂ¦+85В°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, UL, ATEX, IECEx, DNV GL
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc

Каталог

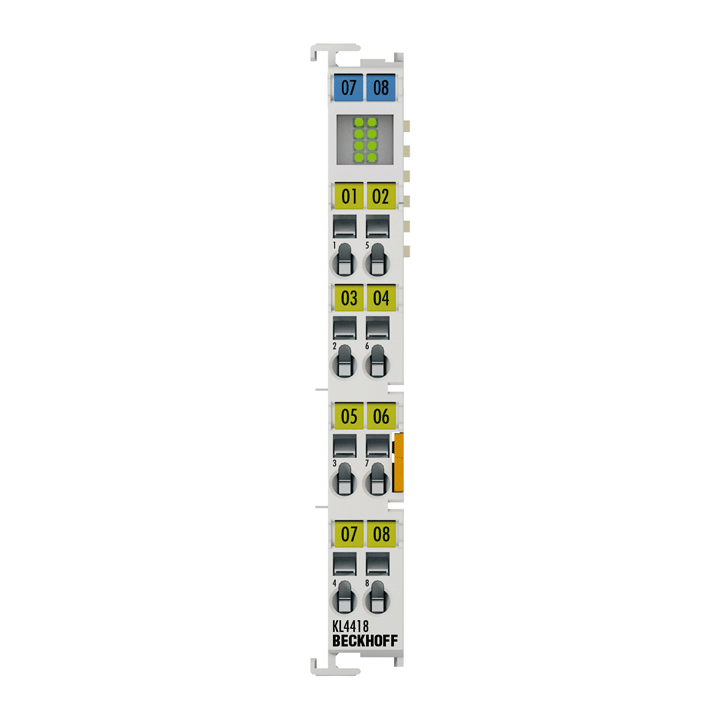

KL4418 | Bus Terminal, 8-channel analog output, current, 0вЂ¦20В mA, 12В bit, single-ended
