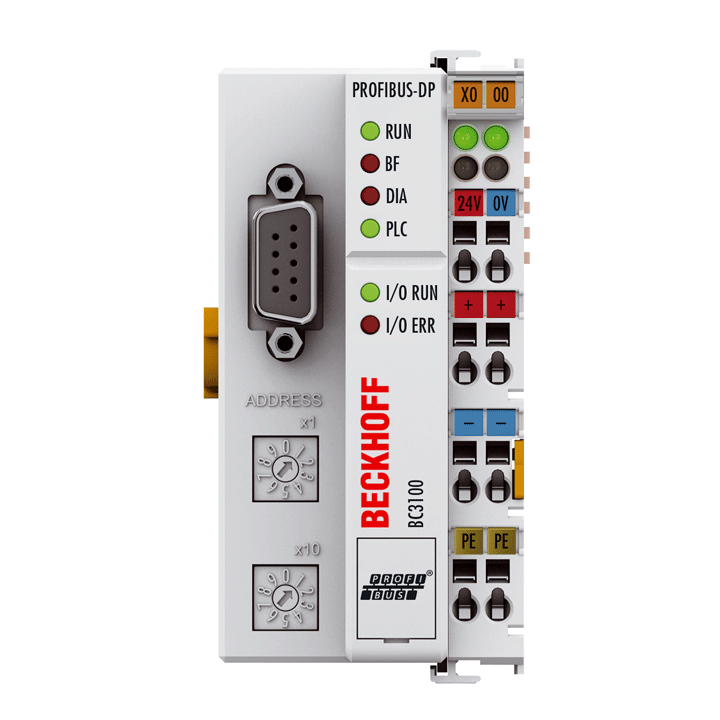

BC3100 | PROFIBUS Bus Terminal Controller
0,00 ₽The BC3100 Bus Terminal Controller is a Bus Coupler with integrated PLC functionality and has a fieldbus interface for PROFIBUS. It is an intelligent slave and can be used as distributed intelligence in the PROFIBUS system. In the BC3100, one unit consists of the controller, between 1 and 64 terminals, and a bus end terminal.
-

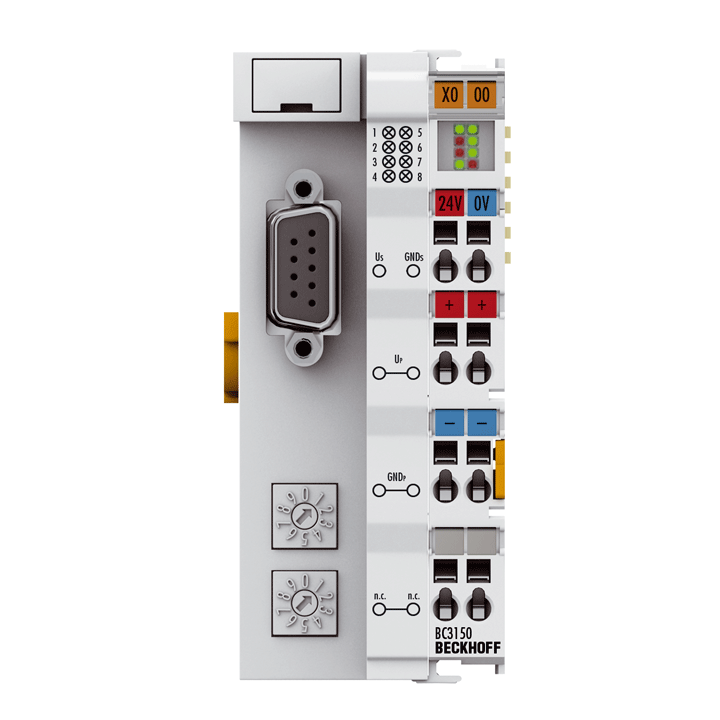

BC3150 | PROFIBUS Bus Terminal Controller
0,00 ₽The BC3150 Compact Bus Terminal Controller in a compact housing is a Bus Coupler with integrated PLC functionality and has a fieldbus interface for PROFIBUS. It is an intelligent slave and can be used as distributed intelligence in the PROFIBUS system. In the BC3150, one unit consists of the controller, between 1 and 64 terminals, and a bus end terminal. In addition, the BC3150 supports up to 255 Bus Terminals via the K-bus extension.
-

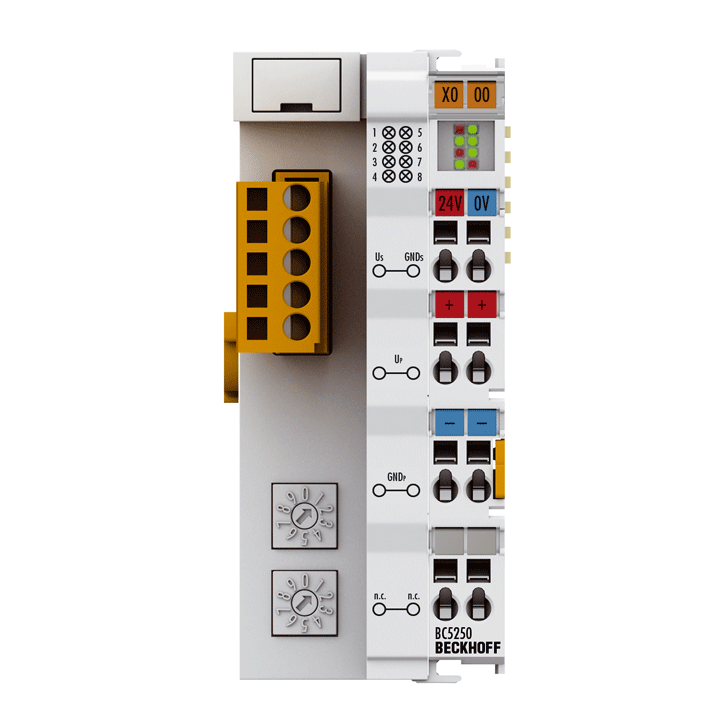

BC5250 | DeviceNet Compact Bus Terminal Controller
0,00 ₽The Bus Terminal Controllers are Bus Couplers with integrated PLC functionality. The “Compact” BC5250 Bus Terminal Controller for DeviceNet extends the Beckhoff small controller series by a cost-optimized version in a compact housing. The DeviceNet Controller offers automatic baud rate detection up to 500В kbaud and two address selection switches for address assignment.
-

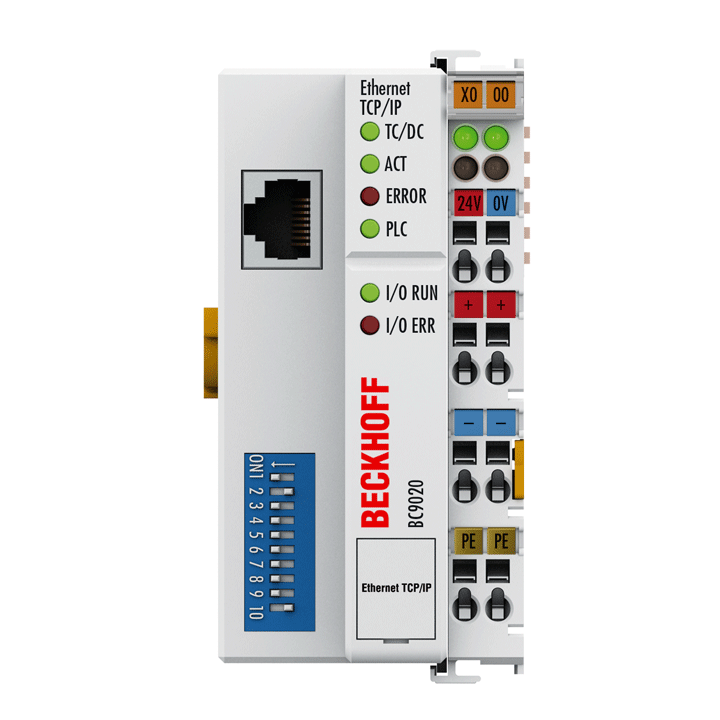

BC9020 | Ethernet TCP/IP Economy plus Bus Terminal Controller
0,00 ₽The BC9020 Bus Terminal Controller is a Bus Coupler with integrated PLC functionality and has a bus interface for Ethernet. It is an intelligent slave and can be used as decentralized intelligence in the Ethernet system. In conjunction with the K-bus extension, the “Economy plus” controller enables connection of up to 255 Bus Terminals to a controller.
-

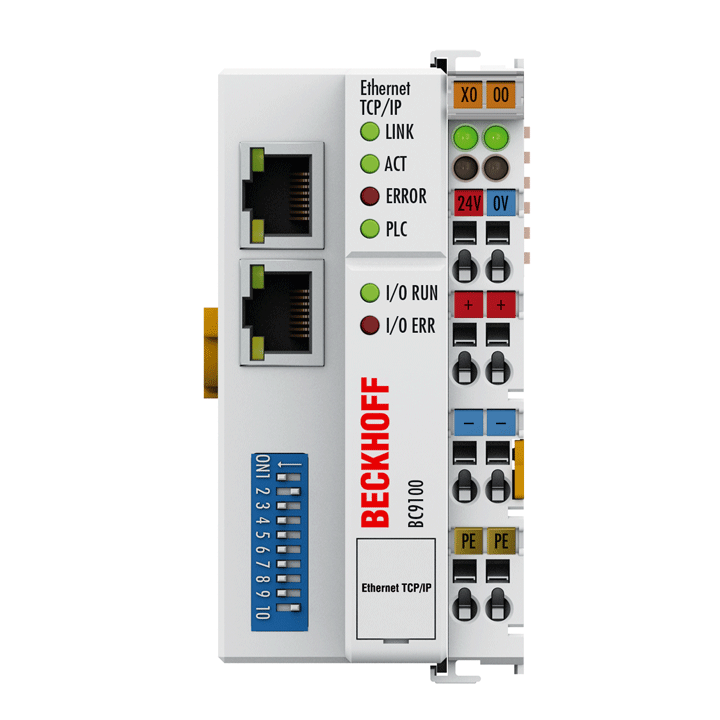

BC9100 | Ethernet TCP/IP Bus Terminal Controller
0,00 ₽The Bus Terminal Controller BC9100 is a Bus Coupler with integrated PLC functionality and has a fieldbus interface for Ethernet. The BC9100 is an intelligent slave and can be used as a non-central intelligence in the Ethernet system. One unit consists of the Bus Terminal Controller, any number of terminals between 1 and 64, and a bus end terminal.
-
BC9191 | Building automation room controller
0,00 ₽The compact BC9191 room controller has an integrated PLC and the sensor/actuator interfaces necessary for room automation. This way, it can be used as an autonomous or local controller. The BC9191 has an interface for coupling the KL6583 and can therefore transmit and receive EnOcean wireless telegrams. The K-bus interface makes extension by the entire range of Bus Terminals possible at any time.
-

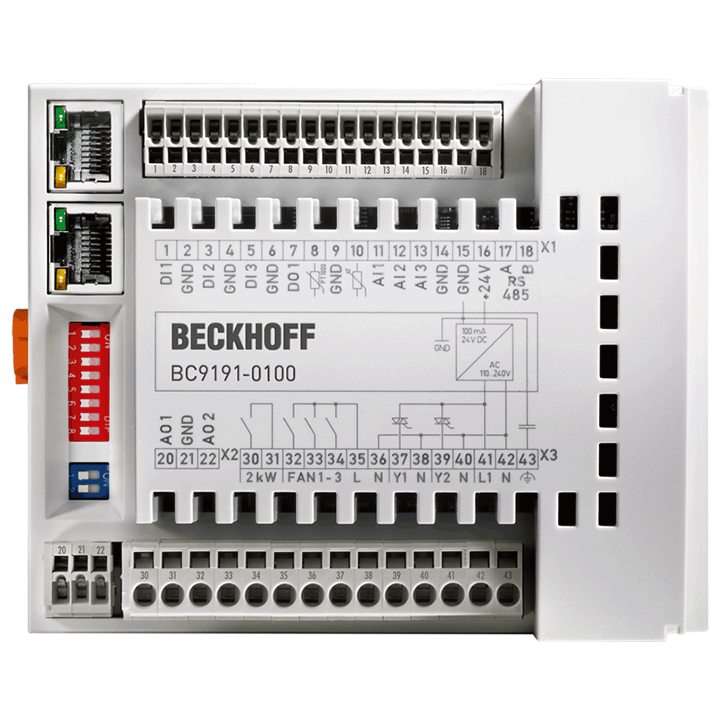

BC9191-0100 | Контроллер помещения для автоматизации зданий
0,00 ₽Компактный контроллер помещения BC9191 имеет встроенный ПЛК и интерфейсы датчиков/исполнительных механизмов, необходимые для автоматизации помещения. Таким образом, его можно использовать как автономный или локальный контроллер. По сравнению с BC9191-0000, BC9191-0100 имеет интерфейс RS485, так что, например, можно подключать блоки управления помещением, метеостанции, электрические открыватели дверей или подчиненные устройства DMX. Связь с устройствами обычно осуществляется по протоколу Modbus RTU, но может также осуществляться по последовательному протоколу, который пользователь может свободно определить. Интерфейс K-bus делает возможным расширение всего диапазона шинных терминалов в любое время.
-
BK1150 | EtherCAT Compact Bus Coupler
0,00 ₽The BK1150 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the Bus Terminals. The coupler converts the passing telegrams from Ethernet 100BASE-TX to the internal, fieldbus-independent terminal bus. A station consists of a coupler and up to 64 Bus Terminals plus a bus end terminal. The process image of the EtherCAT system is assigned automatically. Up to 255 Bus Terminals can be connected via the K-Bus extension.
-
BK3100 | Шинный соединитель PROFIBUS
0,00 ₽Шинный соединитель BK3100 соединяет систему PROFIBUS с электронными клеммными блоками, которые могут быть расширены модульным способом. Один блок состоит из шинного соединителя, любого количества до 64 клемм и одного конечного терминала.
-

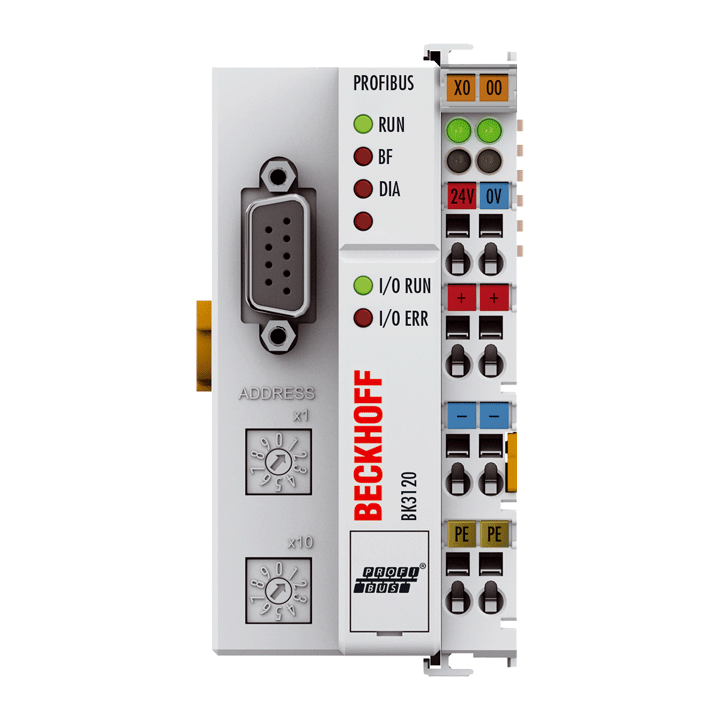

BK3120 | PROFIBUS Economy plus Bus Coupler
0,00 ₽The Economy plus version extends the existing PROFIBUS Bus Coupler series BK3xx0. The K-bus extension technology allows the connection of up to 255В spatially distributed Bus Terminals to one Bus Coupler. The BK3120 has been designed to accommodate automation requirements. The PROFIBUS protocols omit FMS operation in order to be able to transfer more user data in DP mode, which for this Bus Coupler type can be 128 byte inputs and 128 byte outputs. The BK3120 incorporates the PROFIBUS DP V1 services. These services allow direct access to the Bus Coupler register and the complex Bus Terminals in order, for example, to change the parameterization or to set/correct limit values for analog Bus Terminals.
-
BK3150 | PROFIBUS Compact Bus Coupler
0,00 ₽The Compact Bus Coupler BK3150 for PROFIBUS extends the Beckhoff Bus Terminal system by a cost-optimized version in a compact housing. Up to 64В Bus Terminals are supported, with the terminal bus extension, up to 255В Bus Terminals can be connected. The PROFIBUS Bus Coupler offers automatic baud rate detection up to 12В Mbaud and two address selection switches for address assignment. For the fieldbus connection, a D-sub 9-pin socket for the ZS1031-3000 or ZB3100 PROFIBUS connectors is available.
-

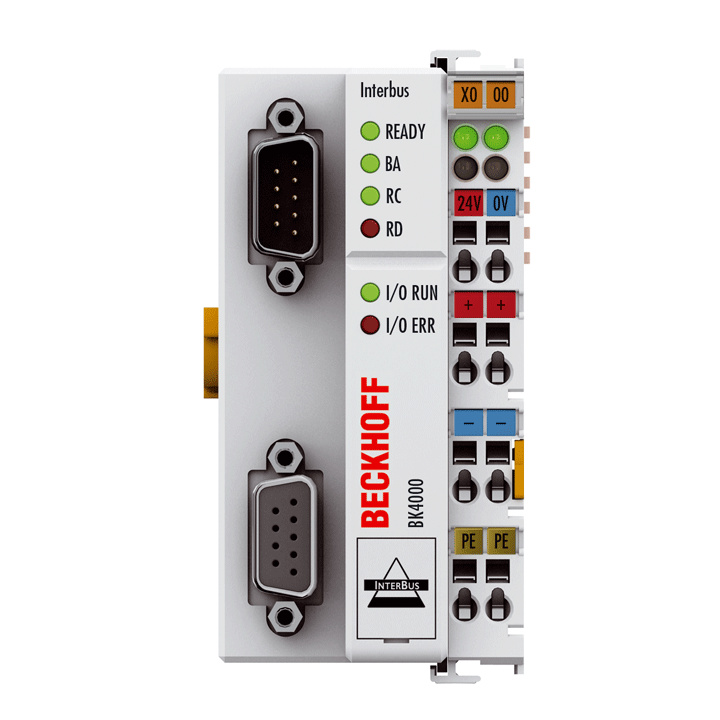

BK4000 | Шинный соединитель Interbus
0,00 ₽Шинный соединитель BK4000 соединяет шинную систему Interbus с электронными клеммными блоками, которые могут быть расширены модульным способом. Один блок состоит из одного шинного соединителя, любого количества до 64В терминалов и одного конечного терминала.
-
BK4020 | Interbus Bus Coupler
0,00 ₽The BK4020 Economy plus Bus Coupler connects the Interbus bus system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists of one Bus Coupler, any number of up to 64В terminals and one end terminal.
-
BK5200 | DeviceNet Bus Coupler
0,00 ₽The BK5200 Bus Coupler connects the DeviceNet bus system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists of one Bus Coupler, any number of up to 64 terminals and one end terminal.
-
BK5220 | DeviceNet Bus Coupler
0,00 ₽The BK5220 Economy plus Bus Coupler connects the DeviceNet bus system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists of one Bus Coupler, any number of up to 64 terminals and one end terminal. With the K-bus extension technology, the BK5220 allows the connection of up to 255 spatially distributed Bus Terminals to one Bus Coupler. The Economy plus series supports all Beckhoff system Bus Terminals and it can process in its full configuration 1020В digital signals and a maximum of 256В analog input and output channels per slave.
-
BK7520 | SERCOS II Bus Coupler
0,00 ₽The BK7520 Bus Coupler connects the SERCOS bus system with the electronic terminal blocks, which can be extended in modular fashion. One unit consists of one Bus Coupler, any number from 1В to 64В terminals and one end terminal. The BK7520 allows, with the K-bus extension technology, the connection of up to 255В Bus Terminals to one Bus Coupler. The Bus Coupler recognizes the connected terminals and automatically generates the affiliations of the inputs/outputs to the bytes of the process image.
-
BK8000 | RS485 Bus Coupler
0,00 ₽The BK8000 Bus Coupler usess the physics of the RS485 (V.24) specification for data transmission. Application of the Bus Coupler with a serial interface is suited to those cases in which the use of a fieldbus system can be omitted. The RS485 interface can be used by any automation device with the corresponding interface to gain access to the Bus Coupler. Data exchange is made via an open, documented protocol.
-

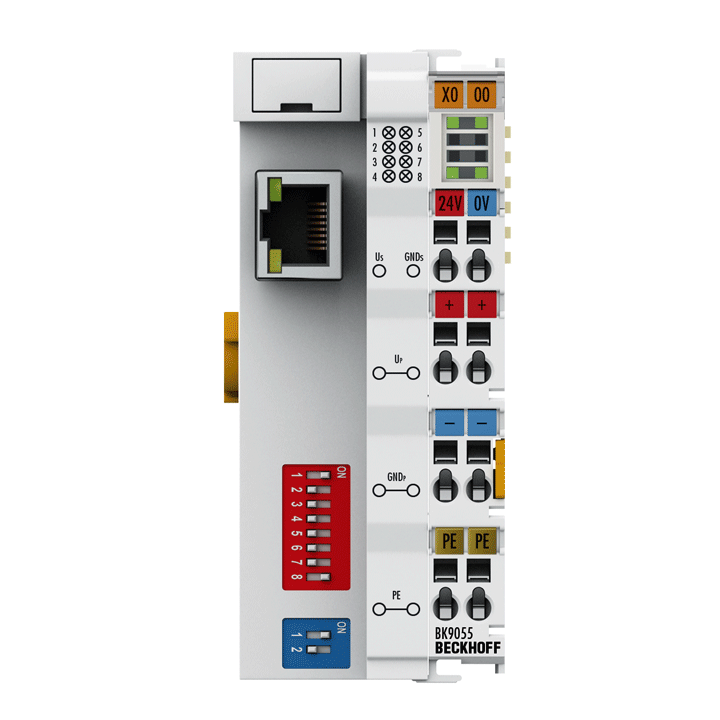

BK9055 | EtherNet/IP Bus Coupler
0,00 ₽The Compact BK9055 Bus Coupler connects EtherNet/IP with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1В to 64В terminals (255 with K-bus extension) and one end terminal.
-
BK9103 | PROFINET Bus Coupler
0,00 ₽The BK9103 Bus Coupler connects PROFINET RT with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals (255 with K-bus extension) and one end terminal.
-
BK9105 | EtherNet/IP Bus Coupler
0,00 ₽The BK9105 Bus Coupler connects EtherNet/IP with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals (255 with K-bus extension) and one end terminal.
-
BKxxxx | Bus Coupler
0,00 ₽ -

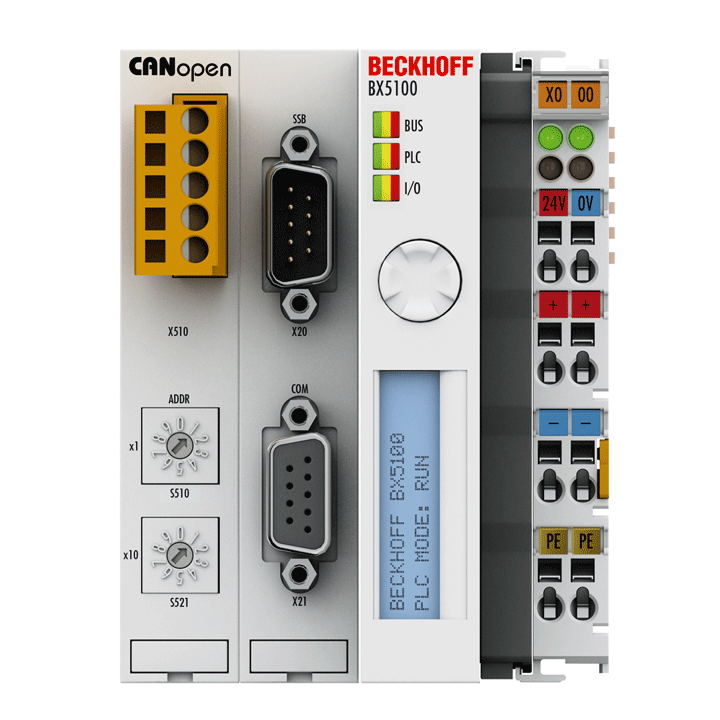

BX5100 | CANopen Bus Terminal Controller
0,00 ₽The BX5100 Bus Terminal Controller has a CANopen slave interface. It has automatic baud rate detection up to 1В Mbaud and an address selection switch for address assignment. Up to 16В Tx PDOs and 16В Rx PDOs can be exchanged with the control.
-
BX9000 | Ethernet TCP/IP Bus Terminal Controller
0,00 ₽The BX9000 Bus Terminal Controller has an Ethernet slave/master interface. The controller has automatic transmission rate detection up to 100В Mbit. The address can optionally be entered via DHCP, BootP, ARP or with the joystick switch. Up to 2В kbytes of input and 2В kbytes of output can be exchanged with the controller. The ModbusTCP and the ADS/TCP and ADS/UDP protocols are implemented.
-
KL1002 | Шинный терминал, 2-канальный цифровой вход, 24В В постоянного тока, 3В мс
0,00 ₽Цифровой входной терминал KL1002 получает двоичные сигналы управления 24В В DC с уровня процесса и передает их в электрически изолированной форме на блок автоматизации более высокого уровня. Шинный терминал содержит два канала, которые показывают состояние своего сигнала с помощью светодиодов.
-
KL1012 | Шинный терминал, 2-канальный цифровой вход, 24В В постоянного тока, 0,2В мс
0,00 ₽Цифровой входной терминал KL1012 получает двоичные сигналы управления 24В В DC с уровня процесса и передает их в электрически изолированной форме на блок автоматизации более высокого уровня. Шинный терминал содержит два канала, которые показывают состояние своего сигнала с помощью светодиодов.
-
KL1032 | Bus Terminal, 2-channel digital input, 48В VВ DC, 3В ms
0,00 ₽The KL1032 digital input terminal acquires the binary 48В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes. The 48В VВ DC supply voltage can be generated with the KL9290 power supply terminal, and fed into the power contacts.
-

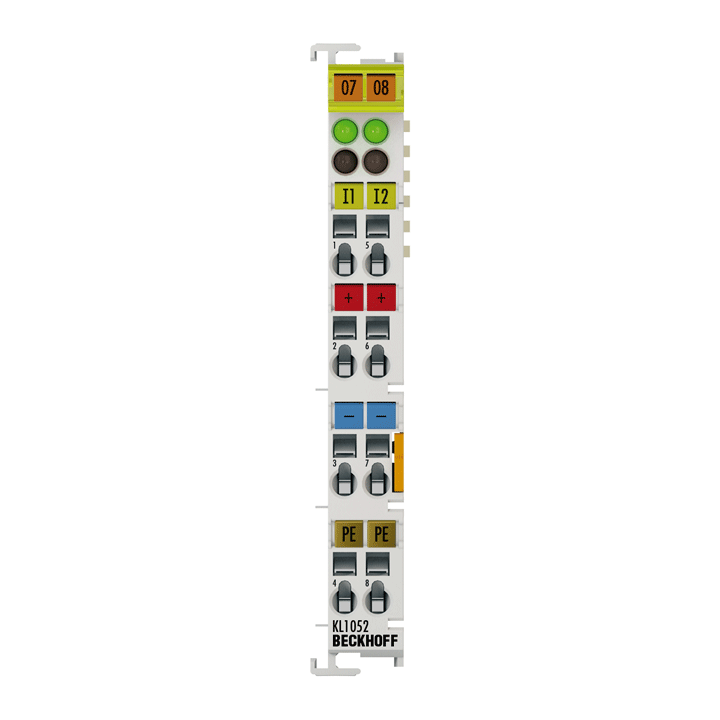

KL1052 | Bus Terminal, 2-channel digital input, 24В VВ DC, 3В ms, positive/ground switching
0,00 ₽The KL1052 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes.
-

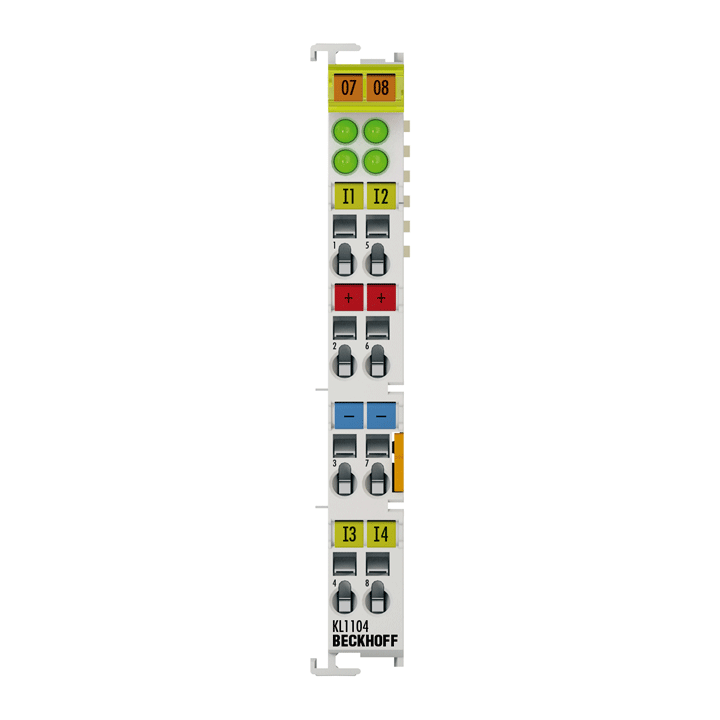

KL1104 | Bus Terminal, 4-channel digital input, 24В VВ DC, 3В ms, 2-/3-wire connection
0,00 ₽The KL1104 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains four channels that indicate its signal state by means of light emitting diodes.
-
KL1114 | Bus Terminal, 4-channel digital input, 24В VВ DC, 0.2В ms, 2-/3-wire connection
0,00 ₽The KL1114 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains four channels that indicate its signal state by means of light emitting diodes.
-
KL1194 | Bus Terminal, 4-channel digital input, 24В VВ DC, 0.2В ms, ground switching
0,00 ₽The KL1194 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains four channels that indicate its signal state by means of light emitting diodes.
-
KL1232 | Bus Terminal, 2-channel digital input, 24В VВ DC, 0.2В ms, pulse extension
0,00 ₽The KL1232 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal has two channels, whose signal state is displayed by light emitting diodes. The KL1232 has an input circuit that extends positively switched signals to 100В ms. The trigger takes place on the positive edge. The Bus Terminal is particularly well suited for the acquisition of very short signals in control systems with a longer processing time than the signal length.
-
KL1302 | Bus Terminal, 2-channel digital input, 24В VВ DC, 3В ms, typeВ 2
0,00 ₽The KL1302 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal has two channels, whose signal state is displayed by light emitting diodes.
-
KL1314 | Bus Terminal, 4-channel digital input, 24В VВ DC, 0.2В ms, typeВ 2
0,00 ₽The KL1314 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal has four channels, whose signal state is displayed by light emitting diodes.
-

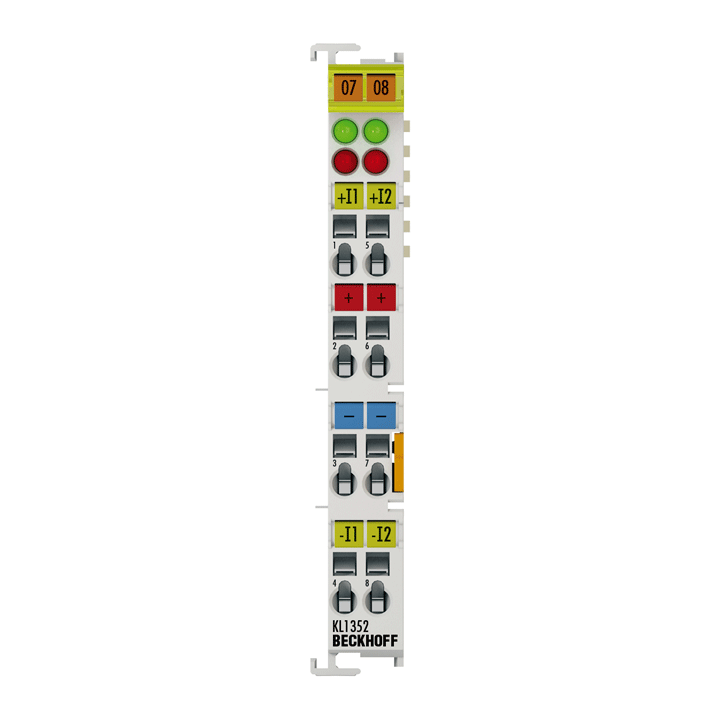

KL1352 | Bus Terminal, 2-channel digital input, NAMUR
0,00 ₽The KL1352 digital input terminal analyzes the input signal of NAMUR sensors according to IECВ 60947-5-6. The Bus Terminal has two channels. In addition to the display of the signal state from the sensor, short circuit or open circuit is also detected. The LEDs display the signal states or any error states.
-

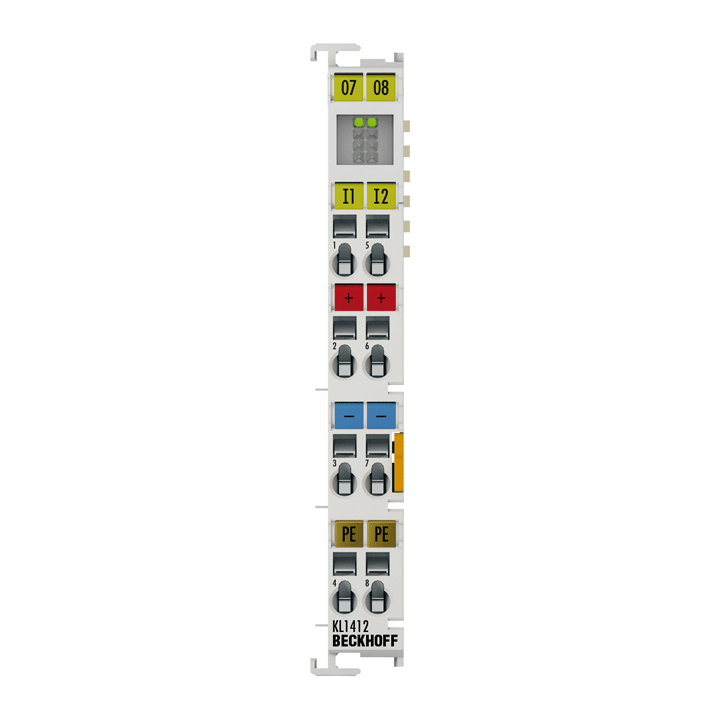

KL1412 | Bus Terminal, 2-channel digital input, 24В VВ DC, 0.2В ms
0,00 ₽The KL1412 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains two channels that indicate its signal state by means of light emitting diodes.
-
KL1434 | Шинный терминал, 4-канальный цифровой вход, 24В В постоянного тока, 0,2В мс, тип 2, 2-проводное соединение
0,00 ₽The KL1434 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal has four channels, whose signal state is displayed by light emitting diodes.
-
KL1488 | Bus Terminal, 8-channel digital input, 24В VВ DC, 3В ms, ground switching
0,00 ₽The KL1488 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The bus terminal contains eight channels, whose signal states are indicated by light emitting diodes. The KL1488 has the 24В V DC power contact as the reference point for all inputs. The power contacts are connected through.
-

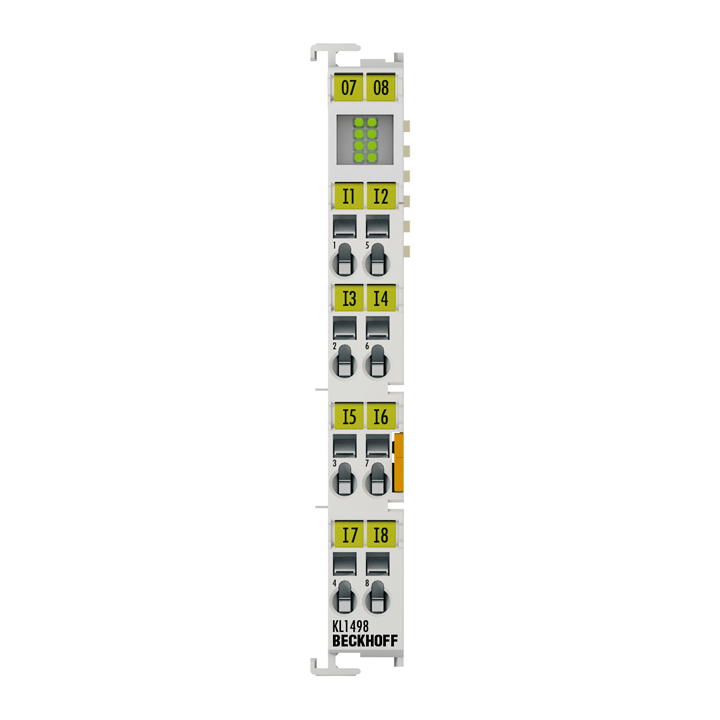

KL1498 | Bus Terminal, 8-channel digital input, 24В VВ DC, 0.2В ms, ground switching
0,00 ₽The KL1498 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The bus terminal contains eight channels, whose signal states are indicated by light emitting diodes. The KL1498 has the 24В VВ DC power contact as the reference point for all inputs. The power contacts are connected through.
-
KL1501 | Bus Terminal, 1-channel digital input, counter, 24В VВ DC, 100В kHz
0,00 ₽The digital input terminal KL1501 is an up/down counter and transports the counter value electrically isolated to the higher-level automation device. When used as a single-channel up/down counter (32В bits), the pulse is set via the clock input, the counting direction is specified via the U/D input. Furthermore, the input can also be used as a gate input for triggering the counter. In 2-counter mode, two separate counters (Clock and Clock1 inputs), parameterizable as up or down counters, are available with 16В bits each. Both outputs are switched according to the counter state, so that they can be used as fast control signals for field devices. The signal state of the inputs and outputs is indicated by light emitting diodes.
-
KL1704 | Шинный терминал, 4-канальный цифровой вход, 120–230 В В переменного тока, 10 В мс
0,00 ₽The KL1704 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The direct connection of 120В V/230В VВ AC signals is possible. The Bus Terminal contains four channels that indicate its signal state by means of light emitting diodes.
-
KL1712 | Bus Terminal, 2-channel digital input, 120В VВ AC/DC, 10В ms
0,00 ₽Цифровой входной терминал KL1712 получает двоичные сигналы управления с уровня процесса и передает их в электрически изолированной форме в блок автоматизации более высокого уровня. Возможно прямое подключение сигналов 120В В DC для постоянного и переменного напряжения. Шинный терминал содержит два канала, которые показывают состояние сигнала с помощью светодиодов.
-
KL1808 | Bus Terminal, 8-channel digital input, 24В VВ DC, 3В ms
0,00 ₽The KL1808 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains eight channels, consisting of a signal input and 24В VВ DC, whose signal states are displayed by light emitting diodes. The power contacts are connected through. With the KL1808, the reference ground for all inputs is the 0В VВ DC power contact.
-

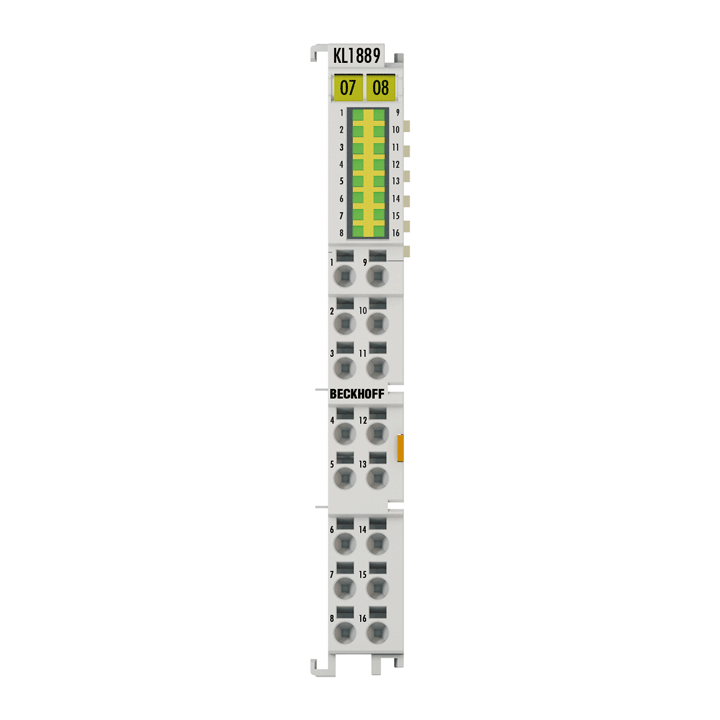

KL1889 | Bus Terminal, 16-channel digital input, 24В VВ DC, 3В ms, ground switching
0,00 ₽The KL1889 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains sixteen channels whose signal states are indicated by light emitting diodes. The power contacts are connected through. With the KL1889, the reference ground for all inputs is the 24В VВ DC power contact.
-
KL1904 | Bus Terminal, 4-channel digital input, 24В VВ DC, TwinSAFE
0,00 ₽The KL1904 safety Bus Terminal is a digital input terminal for sensors with potential-free contacts for 24 V DC and has four fail-safe inputs.
-

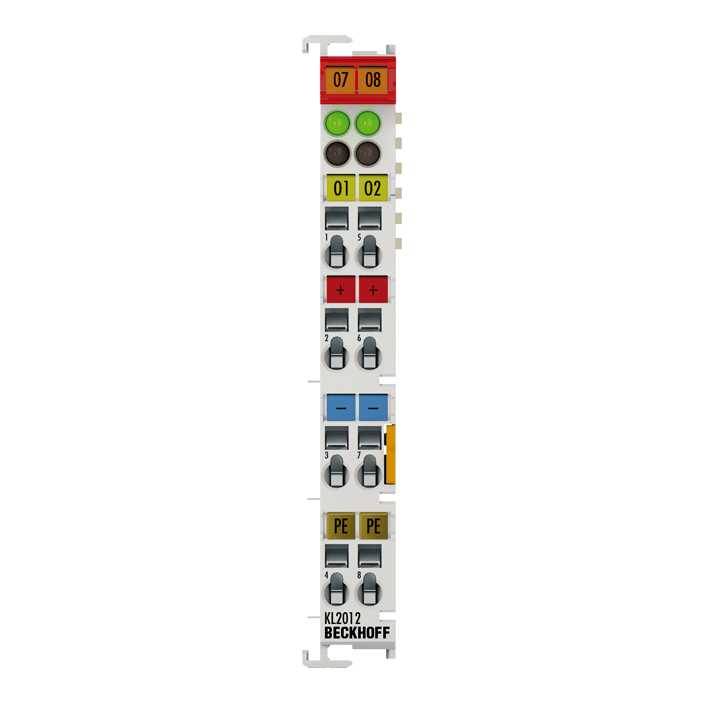

KL2012 | Bus Terminal, 2-channel digital output, 24В VВ DC, 0.5В A
0,00 ₽The KL2012 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. It handles different load currents, and its outputs are protected against overload and short-circuit. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes.
-
KL2022 | Bus Terminal, 2-channel digital output, 24В VВ DC, 2В A
0,00 ₽The KL2022 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. It handles different load currents, and its outputs are protected against short-circuit. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes.
-
KL2032 | Bus Terminal, 2-channel digital output, 24В VВ DC, 0.5В A, reverse voltage protection
0,00 ₽The KL2032 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. It is protected against reverse polarity connection. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes.
-
KL2114 | Bus Terminal, 4-channel digital output, 24В VВ DC, 0.5В A
0,00 ₽The KL2114 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. The load current output of the KL2114 is protected against overload and short-circuit. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.
-

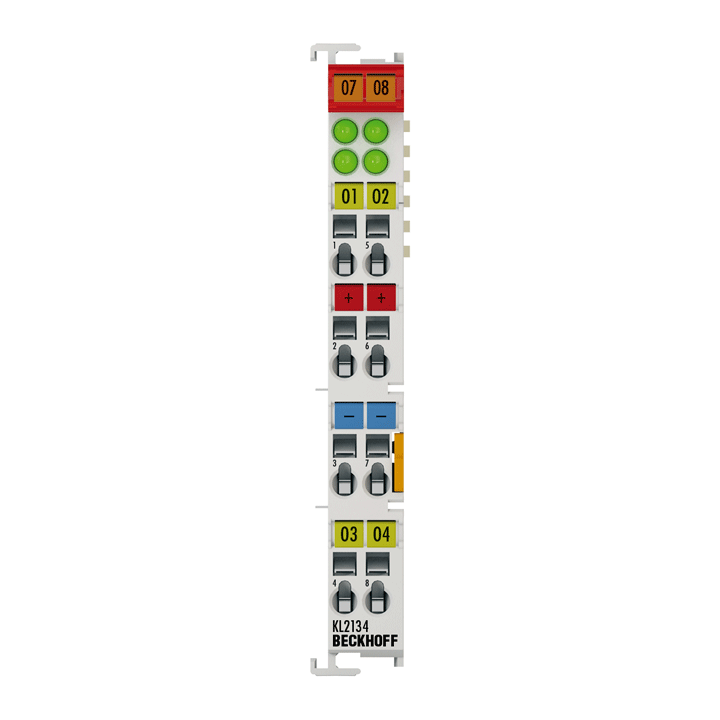

KL2134 | Bus Terminal, 4-channel digital output, 24В VВ DC, 0.5В A, reverse voltage protection
0,00 ₽The KL2134 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. The KL2134 is protected against reverse polarity connection. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.
-
KL2184 | Bus Terminal, 4-channel digital output, 24В VВ DC, 0.5В A, ground switching
0,00 ₽The KL2184 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. It has four ground switching outputs and generates load currents with outputs that are resistant to overload and short-circuit. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.
