IP2312-B310 | Fieldbus Box, 4-channel digital input + 4-channel digital output, PROFIBUS, 24В VВ DC, 0.2В ms, 0.5В A, M12

The IP2312-Bxxx digital I/O module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5В A, are short-circuit-proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M12 screw type connectors.

0,00 ₽

Артикул: IP2312-B310 Категорий: Compact Box, Fieldbus Box and IO-Link box, Home Page, I/O, IP23/24xx-Bxxx | Digital combi, IP2312-Bxxx, Products

Описание

Technical data digital inputs/outputsIP2312-Bxxx

Number of channels	4 inputs + 4 outputs
Input/output connections	M12, screw type
Input filter	0.2 ms
вЂњ0вЂќ signal voltage	-3вЂ¦+5 V
вЂњ1вЂќ signal voltage	11вЂ¦30 V, 6 mA input current (EN 61131-2, type 2)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof
Short-circuit current	typ. 1.5 A
Auxiliary power current	typ. 20 mA per channel
Current consumption from US (without sensor current)	see documentation
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded, downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	4 inputs + 4 outputs
Electrical isolation	channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system

Каталог

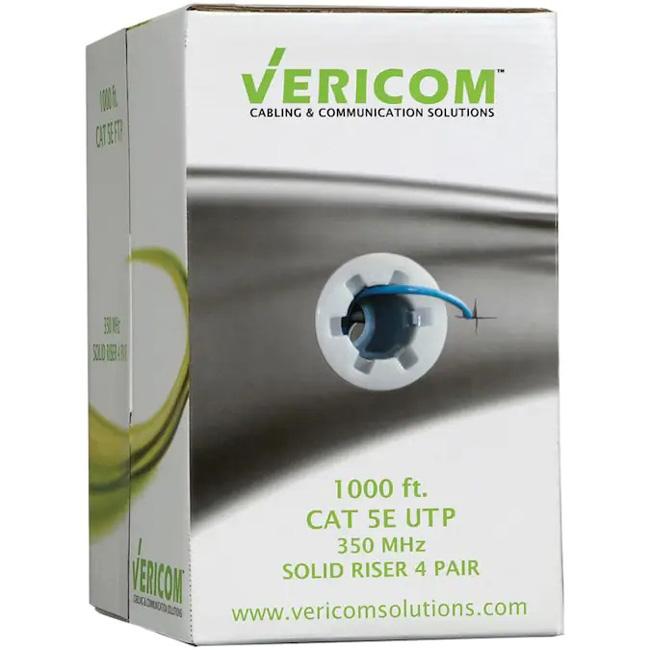

Vericom CAT 5e U/UTP Solid Riser CMR 1000 Foot Cable
