Compact Box
0,00 ₽ -

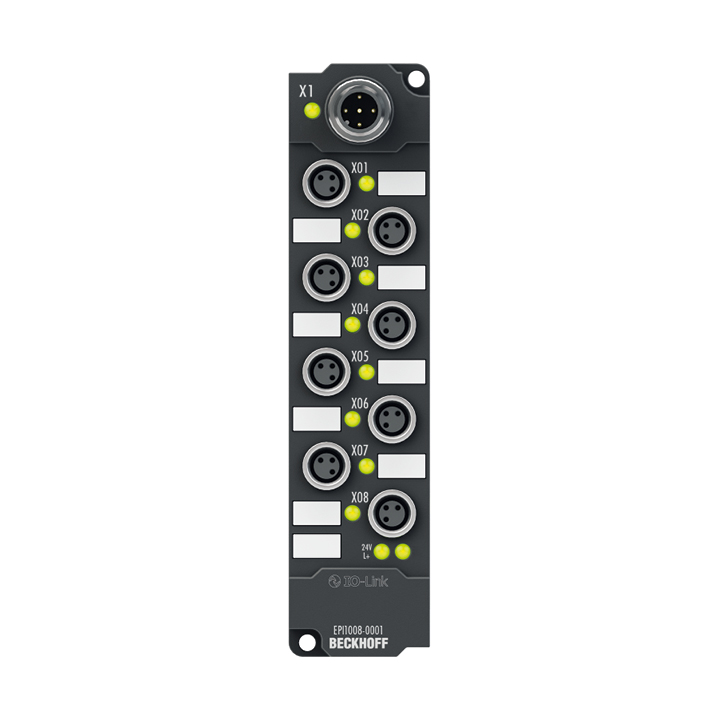

EPI1008-0001 | IO-Link box, 8-channel digital input, 24В VВ DC, 3В ms, M8
0,00 ₽Блок EPI1008-0001 IO-Link с цифровыми входами получает двоичные сигналы управления с уровня процесса и передает их в электрически изолированной форме на контроллер. Состояние сигналов отображается светодиодами. Сигналы подключаются через винтовые разъемы M8.
-
EPI1008-0002 | IO-Link box, 8-channel digital input, 24В VВ DC, 3В ms, M12
0,00 ₽The EPI1008-0002 IO-Link box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M12 screw type connectors.
-
EPI2008-0001 | IO-Link box, 8-channel digital output, 24В VВ DC, 0.5В A, M8
0,00 ₽The EPI2008-0001 IO-Link box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 0.5В A, and although the total current is limited to 4В A, they indicate their status through light emitting diodes. The signals are connected via M8 screw type connectors. The outputs are short-circuit proof and protected against inverse connection.
-
EPI2008-0002 | IO-Link box, 8-channel digital output, 24В VВ DC, 0.5В A, M12
0,00 ₽The EPI2008-0002 IO-Link box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 0.5В A, and although the total current is limited to 4В A, they indicate their status through light emitting diodes. The signals are connected via M12 screw type connectors. The outputs are short-circuit proof and protected against inverse connection.
-
EPI2339-0021 | IO-Link box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M8Preferred type
0,00 ₽The EPI2339-0021 IO-Link box has 16 digital channels, each of which can optionally be operated as an input or as an output. A filter constant of 3.0В ms is available for the inputs. The outputs are short-circuit proof and protected against inverse polarity. They handle load currents of up to 0.5В A each, although the total current is limited to 4В A. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M8 screw type connectors.
-
EPI2339-0022 | IO-Link box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M12
0,00 ₽The EPI2339-0022 IO-Link box has 16 digital channels, each of which can optionally be operated as an input or as an output. A filter constant of 3.0В ms is available for the inputs. The outputs are short-circuit proof and protected against inverse polarity. They handle load currents of up to 0.5В A each, although the total current is limited to 4В A. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M12 screw type connectors.
-
EPI2809-0021 | IO-Link box, 16-channel digital output, 24В VВ DC, 0.5В A, M8
0,00 ₽The EPI2809-0021 IO-Link box with digital outputs connects the binary control signals from the controller on to the actuators at the process level. The 16 outputs handle load currents of up to 0.5В A each, although the total current is limited to 4В A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time, or in which not all of the actuators draw 0.5В A current.
-

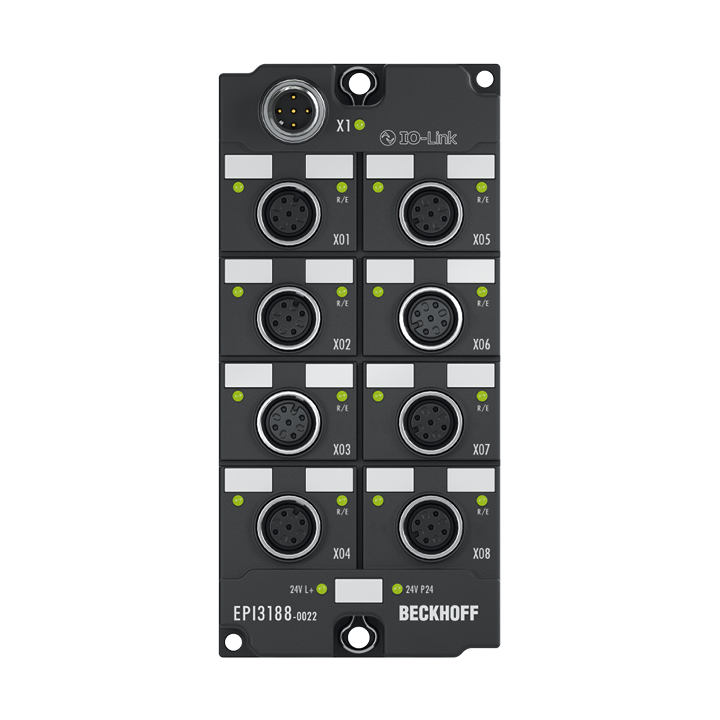

EPI3188-0022 | IO-Link box, 8-channel analog input, multi-function, ±10 V, 0/4…±20 mA, 16 bit, single-ended, M12
0,00 ₽The EPI3188-0022 IO-Link box has eight analog inputs which can be individually parameterized, so that they process signals either in the В±10В V or the 0/4…±20В mA range. The voltage or input current is digitized with a resolution of 16В bit, and is transmitted (electrically isolated) to the higher-level automation device. The eight input channels have single-ended inputs and possess a common, internal ground potential. The input filter and therefore the conversion times are configurable in a wide range. If required, the inputs can be scaled differently, and automatic limit monitoring is also available.
-
EPI4374-0002 | IO-Link box, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12
0,00 ₽The EPI4374-0002 IO-Link box combines two analog inputs and two analog outputs which can be individually parameterized, so that they process/generate signals either in the -10…+10В V or the 0/4…20В mA range. The resolution for the current and voltage signals is 16В bit (signed).
-

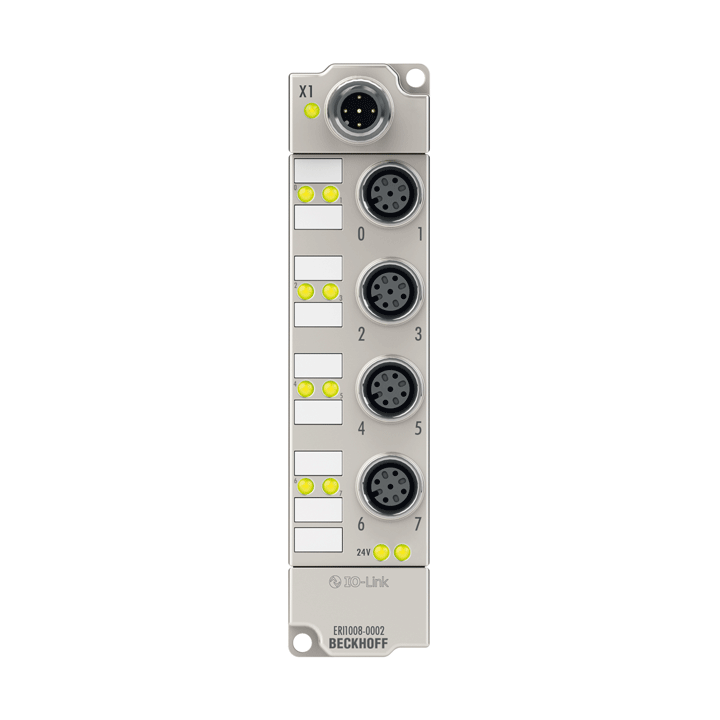

ERI1008-0002 | IO-Link box, 8-channel digital input, 24В VВ DC, 3В ms, M12, zinc die-cast
0,00 ₽The ERI1008-0002 IO-Link box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M12 screw type connectors.
-
ERI1809-0021 | IO-Link box, 16-channel digital input, 24В VВ DC, 3В ms, M8, zinc die-cast
0,00 ₽The ERI1809-0021 IO-Link box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M8 screw type connectors.
-

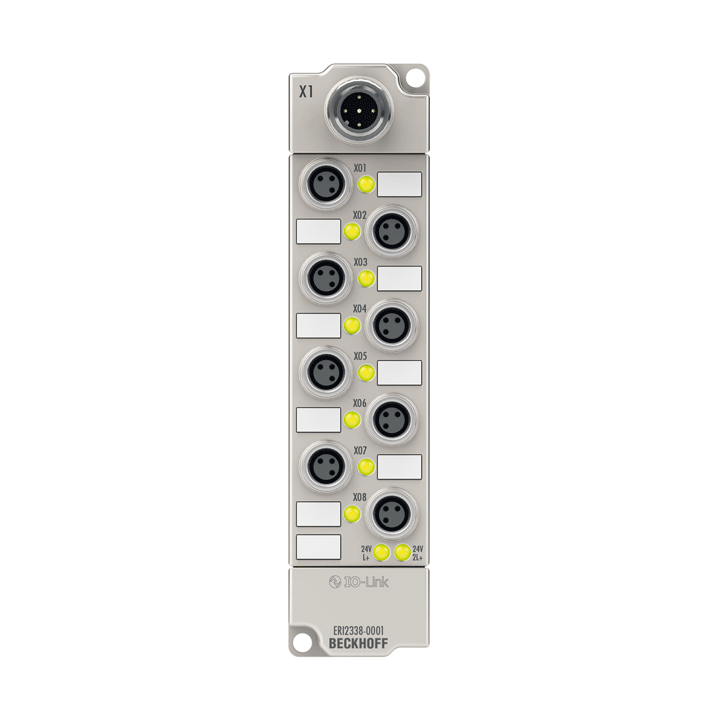

ERI2338-0001 | IO-Link box, 8-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M8, zinc die-cast
0,00 ₽The ERI2338-0001 IO-Link box has eight digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary, the input circuit is internally connected to the output driver, so that a set output is displayed automatically in the input process image.
-
ERI2809-0021 | IO-Link box, 16-channel digital output, 24В VВ DC, 0.5В A, M8, zinc die-cast
0,00 ₽The ERI2809-0021 IO-Link box with digital outputs connects the binary control signals from the controller on to the actuators at the process level. The 16 outputs handle load currents of up to 0.5 A each, although the total current is limited to 4 A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time, or in which not all of the actuators draw 0.5 A current.
-
ERI2809-0022 | IO-Link box, 16-channel digital output, 24В VВ DC, 0.5В A, M12, zinc die-cast
0,00 ₽The ERI2809-0022 IO-Link box with digital outputs connects the binary control signals from the controller on to the actuators at the process level. The 16 outputs handle load currents of up to 0.5 A each, although the total current is limited to 4 A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time, or in which not all of the actuators draw 0.5 A current.
-
ERI4374-0002 | IO-Link box, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12, zinc die-cast
0,00 ₽The ERI4374-0002 IO-Link box combines two analog inputs and two analog outputs which can be individually parameterized, so that they process/generate signals either in the -10…+10В V or the 0/4…20В mA range. The resolution for the current and voltage signals is 16 bit (signed).
-
Extension Box
0,00 ₽ -
Fieldbus systems
0,00 ₽ -
FM33xx | Fieldbus modules
0,00 ₽ -
IE1011 | Extension Box, 8-channel digital input, 24В VВ DC, 0.2В ms, M8
0,00 ₽The IE1011 digital input module acquires the binary control signals from the process level and transmits them to the higher-level automation unit. The input filter is 0.2В ms. The state of the signals is indicated by light emitting diodes. The signals are connected via M8 screw type connectors.
-
IE1012 | Extension Box, 8-channel digital input, 24В VВ DC, 0.2В ms, M12
0,00 ₽The IE1012 digital input module acquires the binary control signals from the process level and transmits them to the higher-level automation unit. The input filter is 0.2В ms. The state of the signals is indicated by light emitting diodes. The signals are connected via M12 screw type connectors.
-
IE2002 | Extension Box, 8-channel digital output, 24В VВ DC, 0.5В A, M12
0,00 ₽The IE2002 digital output module connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 0.5В A and indicate their status through light emitting diodes. The signals are connected via M12 screw type connectors.
-
IE2042 | Extension Box, 8-channel digital output, 24 V DC, 2 A (∑ 12 A), M12
0,00 ₽The IE2042 digital output module connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 2В A each, although the total current is limited to 12В A. The outputs are supplied by three load circuits, for this reason this module does not relay the supply voltage.
-
IE2311 | Extension Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 0.2В ms, 0.5В A, M8
0,00 ₽The IE2311 digital I/O module combines four digital inputs and four digital outputs in one device. The input filter is 0.2В ms. The outputs handle load currents of up to 0.5В A, are short-circuit-proof and protected against inverse polarity.
-
IE2331 | Extension Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 0.2В ms, 2В A, M8
0,00 ₽Цифровой модуль ввода-вывода IE2331 объединяет четыре цифровых входа и четыре цифровых выхода в одном устройстве. Выходы выдерживают токи нагрузки до 2 В А, защищены от короткого замыкания и обратной полярности. Общий ток для всех четырех выходов ограничен 4 В А. Входной фильтр составляет 0,2 В мс.
-
IE2401 | Extension Box, 8-channel digital input + 8-channel digital output, 24В VВ DC, 3В ms, 0.5В A, M8
0,00 ₽The IE2401 digital I/O module has sixteen channels that can be used as eight inputs and eight outputs. The device can therefore be flexibly adapted to the requirements of the application. The signals are connected through M8 screw type connectors, which have four pins (with separate input and output pins). Adapter cables are available for use in input-only or output-only cases, as well as connectors for field wireable. It is also possible to use the power supply cable directly as the sensor cable.
-
IE3202 | Extension Box, 4-channel analog input, temperature, RTD (Pt100), 16В bit, M12
0,00 ₽The IE3202 analog input module allows resistance sensors to be connected directly. The module’s circuitry can operate the sensors using 2-, 3- or 4-wire connection techniques. Linearization over the full temperature range is realized with the aid of a microprocessor. The temperature range can be selected freely. The module can also be used for simple resistance measurement with the output in ohms. The module’s standard settings are: resolution 0.1В°C in the temperature range of Pt100 sensors in 4-wire connection. Sensor malfunctions such as broken wires are indicated by error LEDs.
-
IE4112 | Extension Box, 4-channel analog output, current, 0/4…20 mA, 16 bit, single-ended, M12
0,00 ₽The IE4112 analog output module generates analog output signals in the range from 0/4 to 20В mA. The power is supplied to the process level with a resolution of 15В bits (default), and is electrically isolated. If the input is transmitted without an arithmetical sign, 16В bit resolution may also be selected. If necessary, the output scaling can be altered.
-
IL2301-B310 | Coupler Box, 4-channel digital input + 4-channel digital output, PROFIBUS, 24В VВ DC, 3В ms, 0.5В A, M8
0,00 ₽The IL2301-Bxxx Coupler Box module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M8 screw type connectors.
-
IL2301-B318 | Coupler Box, 4-channel digital input + 4-channel digital output, PROFIBUS, 24В VВ DC, 3В ms, 0.5В A, M8, integrated T-connector
0,00 ₽The IL2301-Bxxx Coupler Box module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M8 screw type connectors.
-
IL2301-B528 | Соединительная коробка, 4-канальный цифровой вход + 4-канальный цифровой выход, DeviceNet, 24 В В постоянного тока, 3 В мс, 0,5 В А, M8, встроенный Т-образный соединитель
0,00 ₽The IL2301-Bxxx Coupler Box module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M8 screw type connectors.
-
IL2301-B900 | Coupler Box, 4-channel digital input + 4-channel digital output, Ethernet, 24В VВ DC, 3В ms, 0.5В A, M8
0,00 ₽The IL2301-Bxxx Coupler Box module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M8 screw type connectors.
-
IL2301-B901 | Coupler Box, 4-channel digital input + 4-channel digital output, Ethernet, 24В VВ DC, 3В ms, 0.5В A, M8
0,00 ₽The IL2301-Bxxx Coupler Box module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M8 screw type connectors.
-
IL2302-B310 | Coupler Box, 4-channel digital input + 4-channel digital output, PROFIBUS, 24В VВ DC, 3В ms, 0.5В A, M12
0,00 ₽The IL2300-Bxxx Coupler Box module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M12 screw type connectors.
-
IL2302-B900 | Coupler Box, 4-channel digital input + 4-channel digital output, Ethernet, 24В VВ DC, 3В ms, 0.5В A, M12
0,00 ₽The IL2300-Bxxx Coupler Box module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M12 screw type connectors.
-

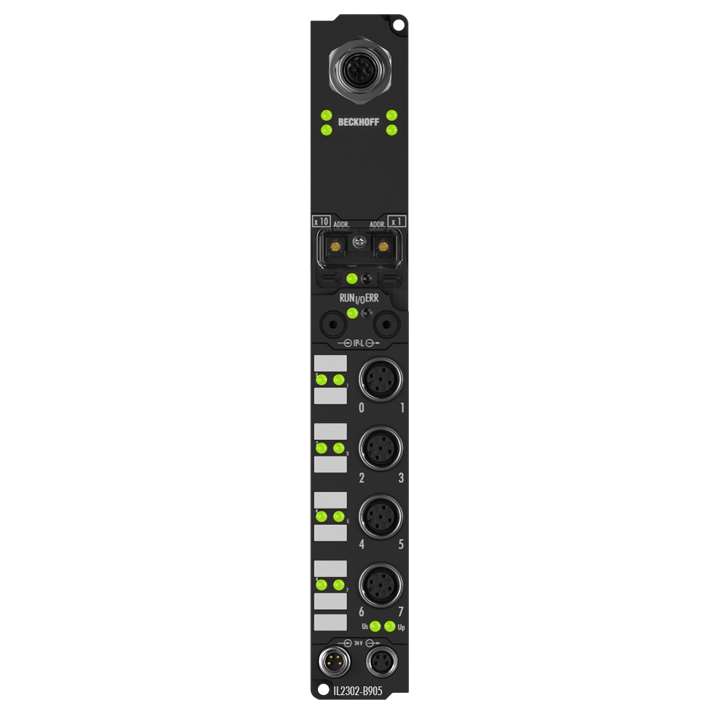

IL2302-B905 | Coupler Box, 4-channel digital input + 4-channel digital output, EtherNet/IP, 24В VВ DC, 3В ms, 0.5В A, M12
0,00 ₽The IL2300-Bxxx Coupler Box module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M12 screw type connectors.
