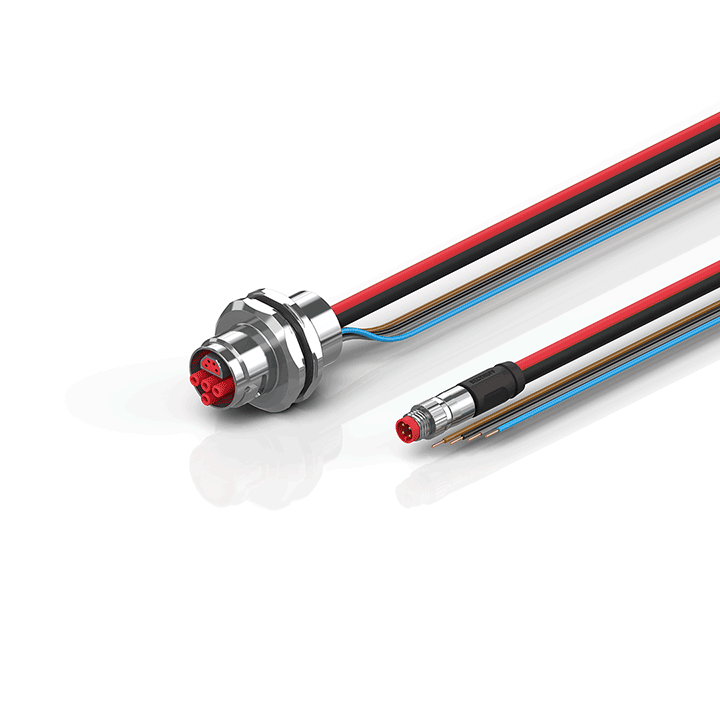

ZK7624-AQ00-0xxx | B17, ECP cable, pre-assembled, PUR, 4 x 1.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 2 (user-defined voltage)
01.01.2025
EL3751-0004 | EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 24В bit, 10В ksps
The EL3751-0004 analog input terminal is a variant of the EL3751 multi-functional terminal that has been reduced to resistance or temperature measurement (RTD). The EL3751-0004 measures to 5В kО© full scale value in 2-/3-/4-wire connection. RTD temperature sensors (Pt100/1000, NI, KTY etc.) can also be connected.
0,00 ₽
| Number of inputs | 1 |
| Power supply | via the E-bus |
| Oversampling factor | n = 1…64 |
| Distributed clocks | yes |
| Distributed clock precision | |
| Internal resistance | > 4 MО© |
| Input filter limit frequency | 3 kHz |
| Dielectric strength | max. 36 V |
| Connection method | 2-, 3-, 4-wire |
| Conversion time | 100 Вµs/10 ksps |
| Measuring range, nominal | 0…5 kΩ, RTD, Pt100/Pt1000, Ni, KTY |
| Measuring range, technical | generally 107% of the nominal measuring range, see documentation |
| Resolution | 24 bit (incl. sign) |
| Measurement error/uncertainty | typ. В±0.01% relative to the respective full scale value @ 23В°C in some measuring ranges, see documentation |
| Temperature coefficient | typ. |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 260 mA |
| Configuration | no address or configuration setting |
| Special features | parameterizable, ExtendedRange 107%, free numeric filter, TrueRMS, integrator/differentiator, non-linear scaling, PeakHold |
| Operating/storage temperature | 0…+55°C/-25…+85°C |
| Weight | approx. 65В g |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Protect. rating/installation pos. | IP20/variable |
