EtherCAT Terminals

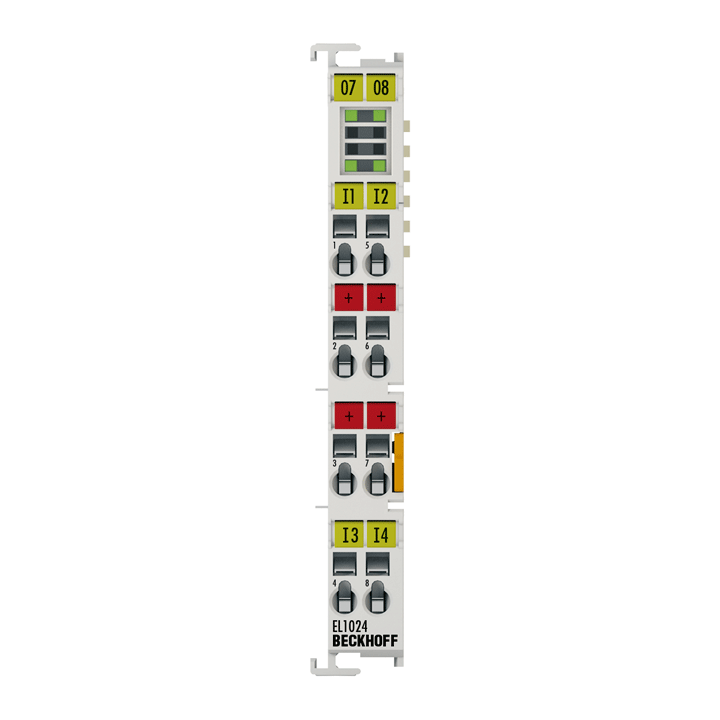

The EL1024 digital input terminal acquires the binary 24В VВ DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has four channels that indicate their signal state via light emitting diodes.

The EL1124 digital input terminal acquires the binary 5В V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has four channels that indicate their signal state via light emitting diodes. The 5В V supply voltage can be generated with the EL9505 power supply terminal, and fed into the power contacts.

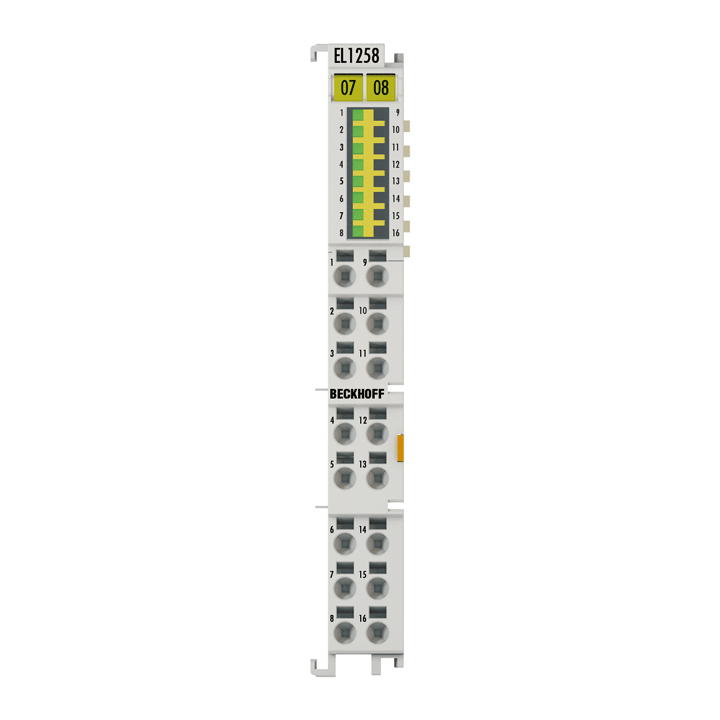

The EL1258 digital input terminal acquires the fast binary 24В V control signals from the process level and transmits them, in an electrically isolated form, to the controller. Each EtherCAT Terminal has eight channels that indicate their signal state via light emitting diodes. In comparison with the EL1252, the EL1258 offers not only a higher channel density, but also a higher performance thanks to the XFC multi-timestamp function. Whereas the EL1252 can accept one edge change with time stamp per bus cycle, the EL1258 offers the possibility to register up to 32 events with time stamps. The EL1258 is synchronized with other EtherCAT devices through the distributed clocks system, so that events in the whole system can be measured with a uniform timebase.

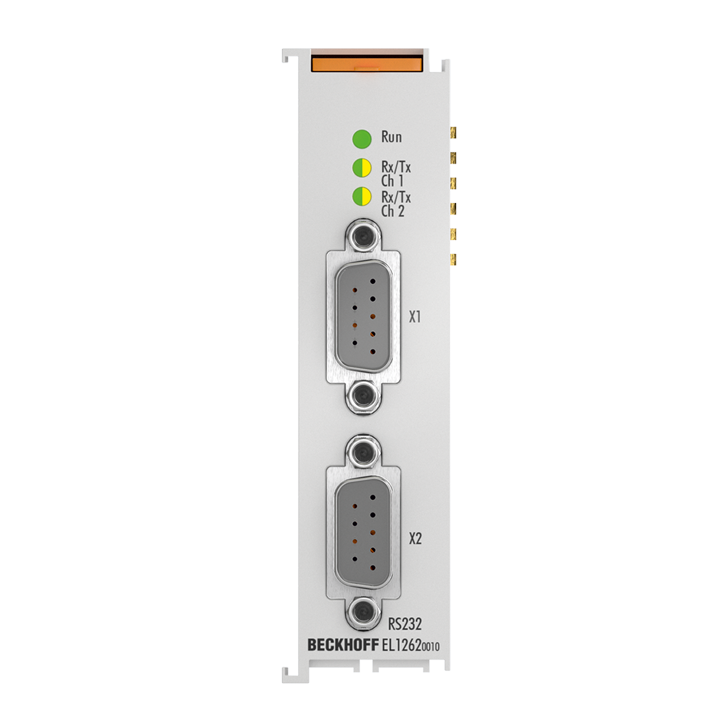

The EL1262-0010 is a universal, high-performance oversampling terminal for input and output signals. It contains two input and two output channels that can all be operated simultaneously at up to 10В Mbit/s. It can thus resolve binary states with up to 100В ns fineness. Electrically it can read and output differential RS422 (full duplex), RS485 (half duplex) as well as 5В V single-ended. Termination and bias are electronically switchable for serial operation. This makes it suitable for the most demanding high-speed applications, e.g. laser control or the emulation and read-along of serial protocols. It thus extends the application range of the previous EL1262/EL2262 with 1В Mbit/s by a factor of 10.

The EL1702 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The direct connection of 120В V/230В VВ AC signals is possible. The EtherCAT Terminal has two channels that indicate their signal state via light emitting diodes.

The EL1804 digital input terminal acquires the binary 24В VВ control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal contains four channels whose signal state is indicated by LEDs. The power contacts are connected through. With the EL1804, the reference ground for all inputs is the 0В VВ power contact.

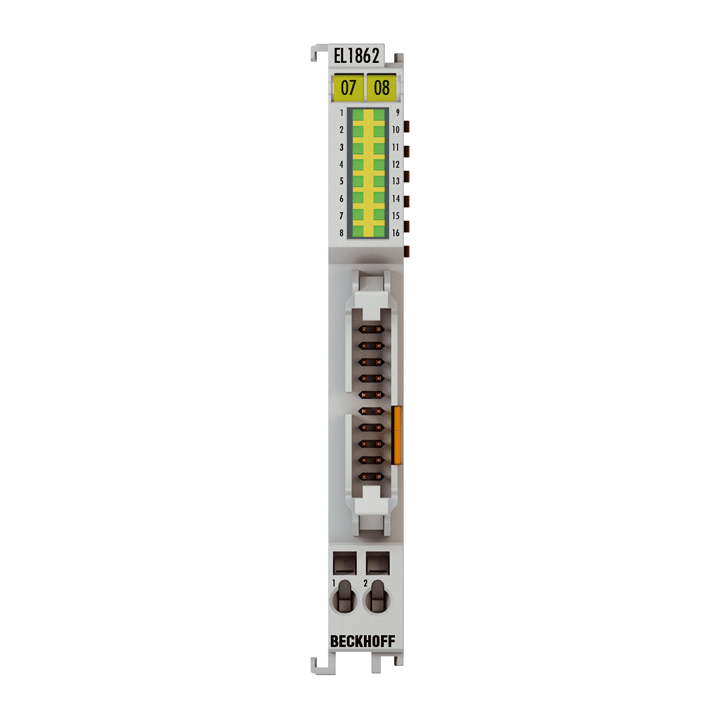

The EL1862 digital input terminal offers 16 channels in a very compact design. A 20-pin contact strip enables the secure connection of plug connectors using insulation displacement contact, as is usual for ribbon cables and special round cables. This significantly simplifies the wiring of many channels. The signal states of the channels are indicated by LEDs. The power contacts are connected through.
