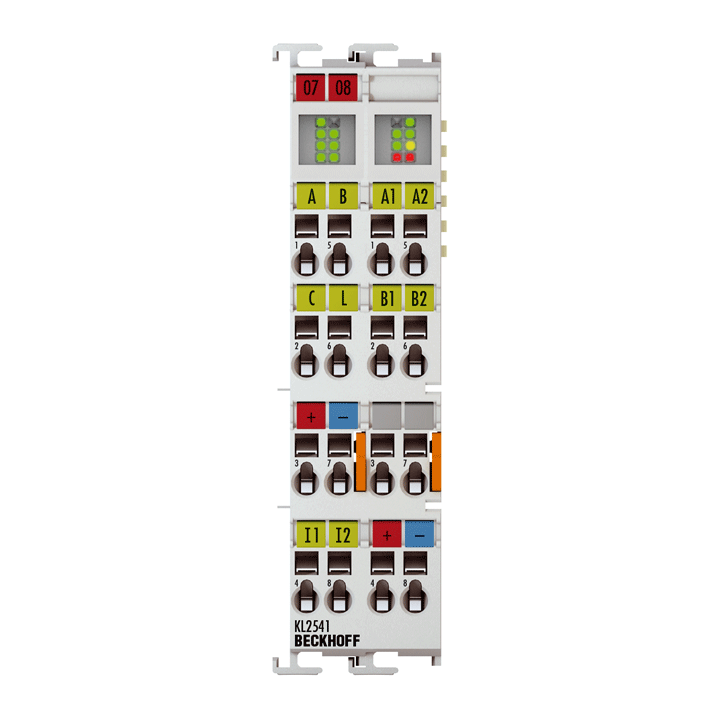

KL2541 | Bus Terminal, 1-channel motion interface, stepper motor, 48В VВ DC, 5В A, with incremental encoder
01.01.2025
XGL1010-822
01.01.2025
EL2535-0002 | EtherCAT Terminal, 2-channel PWM output, 24В VВ DC, 2В A, current-controlled
The EL2535-xxxx output terminals control the output current through pulse width control of the supply voltage. They are electrically isolated from the E-bus. The current values (0 to maximum output current) are specified by the automation device through a 16-bit value. The output stages are protected against overload and short circuit. Each EtherCAT Terminal contains two channels whose signal state is indicated by LEDs. The light emitting diodes simplify local diagnosis by displaying typical load and wiring faults.
0,00 ₽
| Connection technology | PWM output, push-pull outputs |
| Number of outputs | 2 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load type | inductive > 1 mH |
| Distributed clocks | – |
| Max. output current | В±2 A |
| Short-circuit current | typ. |
| PWM clock frequency | 30 kHz default |
| Duty factor | 0…100% (current-controlled) |
| Resolution | 10 bit |
| Reverse voltage protection | yes |
| Current consumption E-bus | typ. 110 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption power contacts | typ. 30 mA + load |
| Bit width in the process image | 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status |
| Special features | 2 digital 24 V inputs |
| Weight | approx. 50 g |
| Operating/storage temperature | 0…+55°C/-25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
