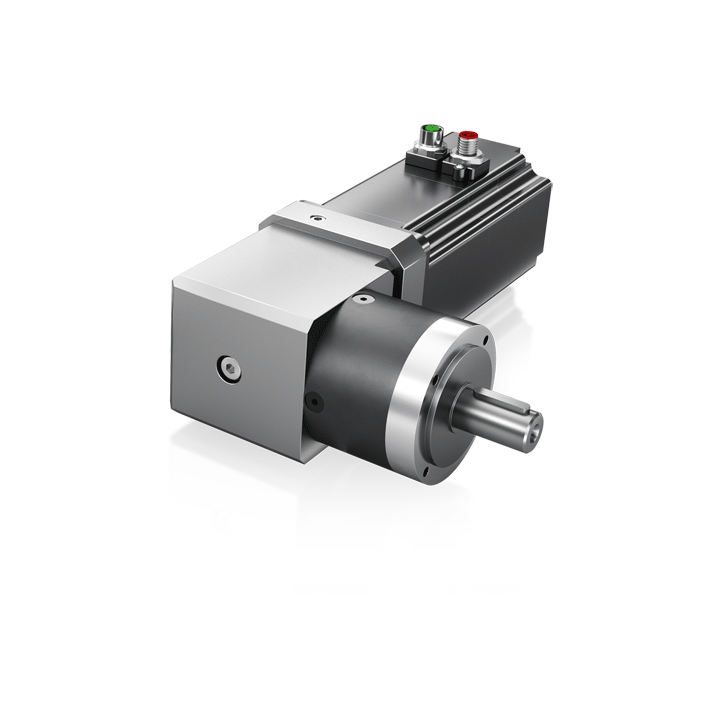

AG2250-+WPLE40-M02-12 | 2-stage angled planetary gear units for rotary servomotors

The AG2250 planetary gears are especially matched to the rotary motor series and have been expanded by 2- or 3-stage version. For better design, planetary and angled planetary gears are available with different transmission ratios.

0,00 ₽

Артикул: AG2250-+WPLE40-M02-12 Категорий: AG2250 | Planetary gear units for servo and stepper motors, AG2250-+WPLE40, Home Page, Motion, Planetary gears, Products

Описание

Technical dataAG2250-+WPLE40-M02-12

Design	angled
Variant	economy
Nominal output torque	20 Nm
Max. acceleration torque	32 Nm
Gear stages	2
Gear ratio	12
Max. torsional backlash standard/reduced	в‰¤ 25/вЂ“ arcmin
Ambient temperature (operation)	-25вЂ¦+40В°C
