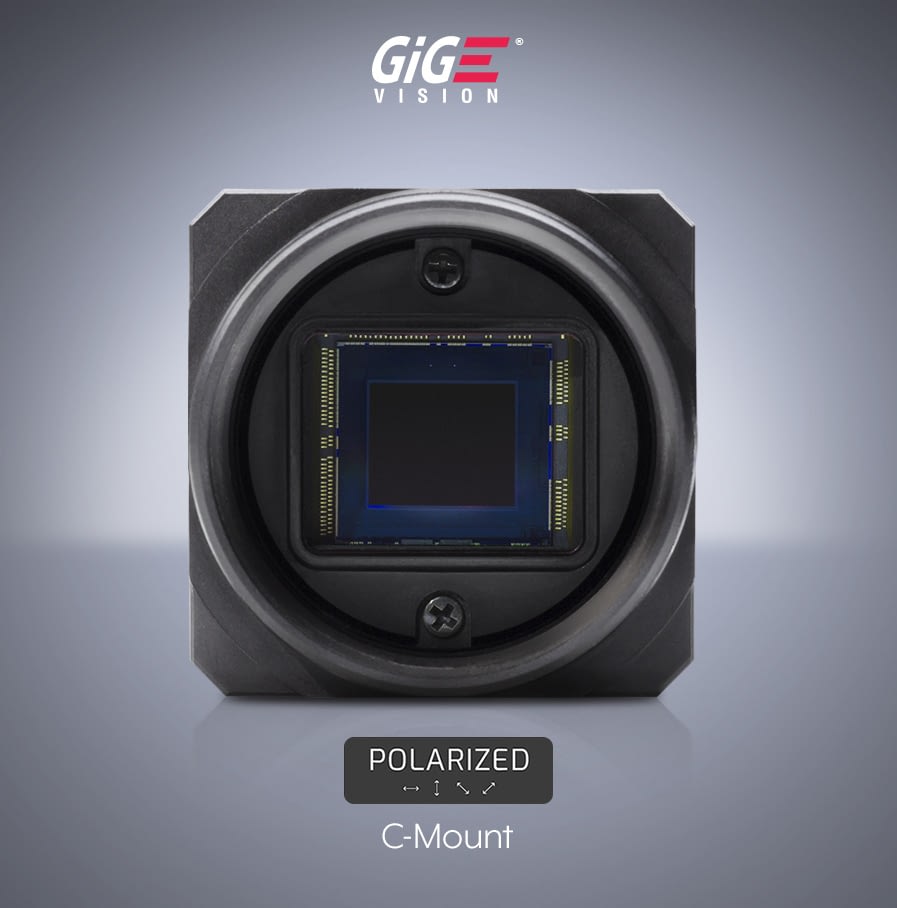

Поляризационная модель Triton 5.0 MP (IMX250MZR/MYR) -> Поляризационная модель Тритон 5.0 МП (IMX250MZR/MYR)

Описание

Технические характеристики камеры TRI050

Датчик

Sensor
Sony IMX250MZR Sony IMX250MYR

Разрешение

Resolution
5.0 MP, 2448 x 2048 px

Частота кадров

Frame Rate
22 FPS

Модель SKUs

Model SKUs	Chroma	Lens Mount	GigE Vision Connector	Included Accessory
TRI050S-QC	Color	C-mount	M12	M8 GPIO IP67 Cap
TRI050S-PC	Mono	C-mount	M12	M8 GPIO IP67 Cap

Технические характеристики

Sensor Properties
Sensor Model	Sony IMX250MZR CMOS (mono) Sony IMX250MYR CMOS (color) Polarized four different directional polarizing filters (0°, 90°, 45°, and 135°)
Shutter Type	Global
Sensor Size	11.1 mm (Type 2/3)
Resolution	2448 x 2048 px, 5.0 MP
Pixel Size	3.45 µm (H) x 3.45 µm (V)
Framerate*	22 FPS (24 FPS) @ 5.0 MP

Физические характеристики

Physical Properties
Dimensions	29 x 29 x 45 mm
Lens Mount	C-Mount
Weight	67 g
Ingress Protection	IP67 (For IP67 protection Triton must be used with IP67 lens tube and cables)

Интерфейс и информация о питании

Interface and Power Information
Digital Interface	1000BASE-T GigE M12 (8 Pin X-Coded), PoE
GPIO Interface	8 pin M8 connector
Opto-Isolated I/O Ports	1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption	3.1W via PoE, 2.5W when powered externally

Свойства изображения

Imaging Properties
Image Buffer	128 MB
Image Processing	Gain
Pixel Formats	Mono8/12/16, PolarizeMono8/12/16 (Mono) BayerRG8/12/16, PolarizeMono8/12/16 (Color)
Image Modes	Horizontal and vertical binning, ROI, horizontal and vertical flip
ADC	12 bit
Gain Range	0 dB to 48 dB analog and digital
Exposure Time	30 μs to 10 s

Особенности камеры

Camera Features
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data	Acquisition start/end, exposure start/end, line rise/fall, error
Counter Timer	2 counters and 2 timers
Sequencer	Exposure time, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Стандарты и сертификаты

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-20 to 55°C ambient
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Industrial EMC Immunity	DIN EN 61000-6-2
Warranty	3 year

Результаты EVMA 1288

EVMA 1288 Results
Dynamic Range	71.34 dB
SNR (Max)	40.14 dB
Saturation Capacity	10318 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	5.28 γ
Temporal Dark Noise	2.16 e-
Gain	0.369 DN / e-
Dark Current	3.51 e- / s
Dark Signal Non-Uniformity	0.71 e-
Photo Response Non-Uniformity	1.66 %
Linearity Error Max/Min	0.22/-0.50 %
