N5242A Анализатор цепей Agilent

Options

007

008

010

015

020

021

022

025

028

029

080

082

083

084

086

087

088

089

090

118

1CM

1CP

200

201

219

224

301

302

400

417

419

423

460

510

514

518

520

551

WIN7

Automatic Fixture Removal

Pulsed-RF Measurements

Time-domain measurements

Dynamic Uncertainty for S-Parameter Measurements

Add IF inputs

Add pulse modulator to internal first source

Add pulse modulator to internal second source

Internal pulse generators, Add 4

Noise figure measurements using standard receivers

Fully-corrected noise-figure measurements to 13.5 GHz

Frequency offset measurements

Scalar calibrated converter measurements

Vector and scalar calibrated converter measurements

Add embedded LO measurements

Gain compression measurements

Intermodulation distortion measurements

Source phase control

Differential and I/Q devices application

Spectrum Analyzer

Fast CW mode

Rack mount kit for installation without handles

Rack mount kit for installation with handles

2 ports, single source

2-ports, single source, with configurable test set

Add extended power range and bias-tees to 2 port analyzer

Add internal second source, combiner and mechanical switches to 2-port analyzer

Application for use with standard CalPods

Application for use with temperature-characterized CalPods

4 ports, dual source

4-ports, dual source, with extended power range

Add extended power range and bias-tees to 4 port analyzer

Add internal combiner and mechanical switches to 4-port analyzer

Integrated true-mode stimulus application

Nonlinear component characterization, full frequency range

Nonlinear X-Parameters

Nonlinear Pulse Envelope Domain

Arbitrary load impedance X-parameters

N-port calibrated measurements

Windows 7

Additional Features:

• 10 MHz to 26.5 GHz
• 2- or 4-ports with two built-in sources
• 132 dB system and 130 dB receiver dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth
• High output power (+18 dBm), low harmonics (-60 dBc) and a wide power sweep range (38 dB)
• Best dynamic accuracy: 0.1 dB compression with +13 dBm input power at the receiver
• Low noise floor of -114 dBm at 10 Hz IFBW

Applications:

• S-parameters (CW and pulsed)
• Noise figure
• Gain compression
• Intermodulation and harmonic distortion
• Conversion gain/loss
• True-differential stimulus
• Millimeter-wave
• Nonlinear waveform and X-parameter® characterization
• Antenna test

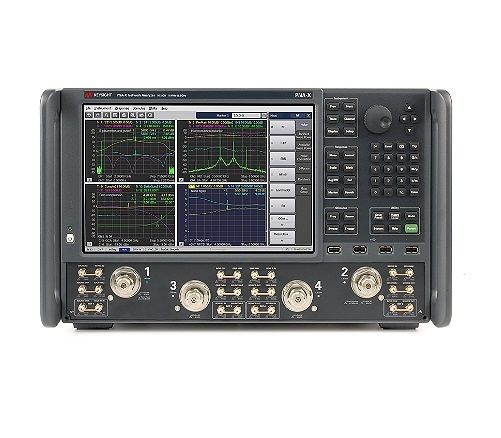

The Agilent N5242A PNA-X network analyzer is the world´s most integrated and flexible single-connection microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. You can choose from five frequency models to meet your specific device test needs: 13.5, 26.5, 43.5, 50, and 67 GHz. The PNA-X provides unrivaled configurability with a built-in second source, combiner, and internal signal-routing switches.

Технические характеристики

Manufacturer	Agilent, HP, Keysight
Condition	Used
Frequency	26.5 GHz
