MSD1514-105

General specification Core Material: Ferrite Weight: 9.0 – 11.8 g Packaging: 175/13 reel, Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 14.3 mm pocket depth Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.

900,00 ₽

Артикул: MSD1514-105KED Категорий: MSD1514, MSD1514-105, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR (Ω) 3		Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	typ	max	Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
MSD1514-105KE_	1000	1.1	1.3	500	2.0	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR (Ω) 3		SRF typ (kHz) 4	Coupling coefficient	Leakage Inductance (H) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	typ	max	SRF typ (kHz) 4	Coupling coefficient	Leakage Inductance (H) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
MSD1514-105KE_	1000	1.1	1.3	1100	&gt,0.99	2.0	1.3	1.5	1.6	0.66	0.77

Каталог

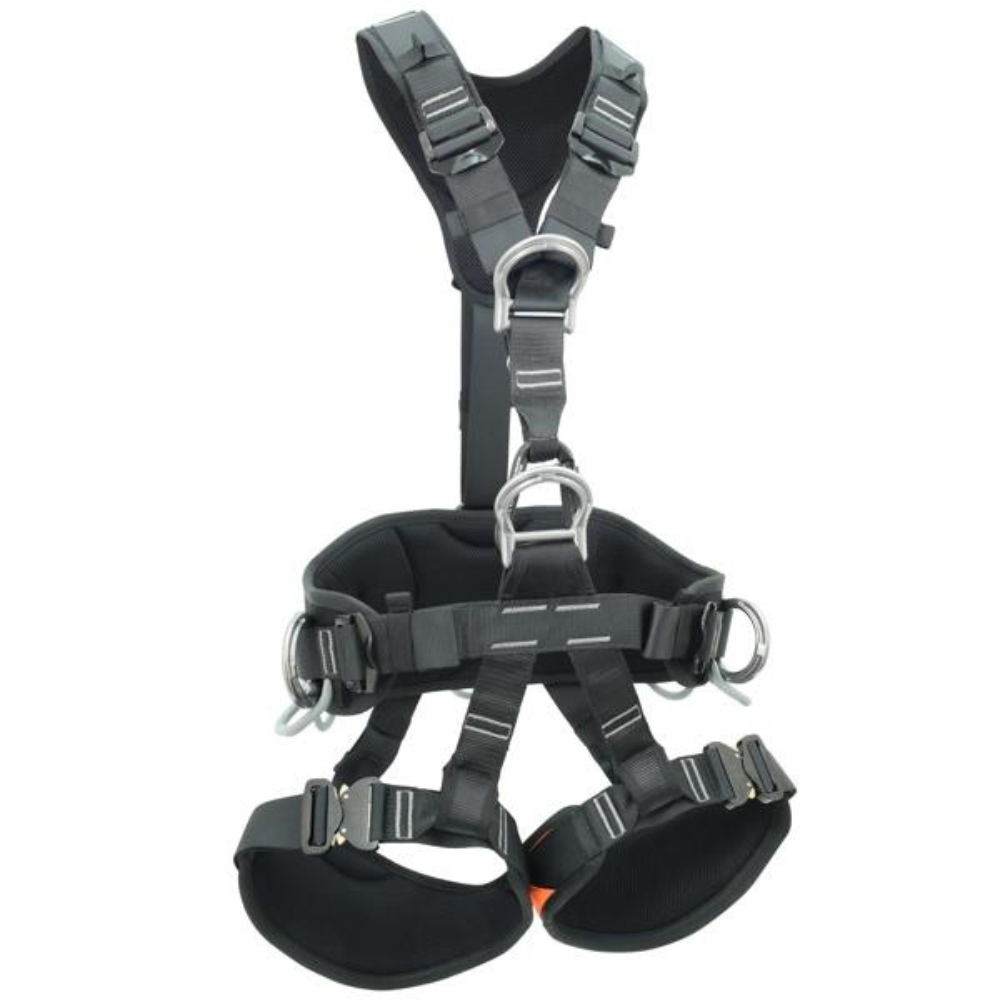

Kong X-Five Fast Work Harness
