Купить Мощный 3-осевой многофункциональный измерительный микроскоп светлого поля

Описание

The MF-UB series 3-axis measuring microscope gives operators bright field observation and a wide field of view. The microscope”s ultra-long working distance and manual Z-axis adjustment provides the ability to observe larger objects with detail for added flexibility.

Integration of metallurgical and measurement microscope functions provides high-resolution observation and high-accuracy measurement solution
Illumination unit (reflected/transmitted) selectable from a high-intensity LED or halogen bulb (required)
Variable aperture diaphragm (reflected/ transmitted) allows for contrast adjustment
Variety of standardized stages with travel range up to 400 × 200 mm
Quick-release mechanism useful for moving the stage quickly when measuring workpieces that are large in size or quantity
High-magnification observation up to 2000X
Dedicated camera port for seamless integration of Mitutoyo Vision unit or third party c-mount camera
4 or 5 Position motorized or manual turret is available

Order No.:	Product Image:	Model:	Range X-Axis:	Range Y-Axis:	Range Z-Axis:	Accuracy:	XY Stage Top Size:	Effective glass size:	Swivel Function:	Workpiece Max Load:

Order No.:

176-876-10	–	MF-UB1010D	4″ / 100mm	4″ / 100mm	6″ / 150mm	XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7153	11 x 11″ / 280 x 280mm	7 x 7″ / 280 x 280mm	–	22lbs / 10kg
176-877-10	–	MF-UB2010D	8″ / 200mm	4″ / 100mm	6″ / 150mm	XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7154	14x 11″ / 350 x 280mm	10 x 6″ / 350 x 280mm	–	22lbs / 10kg
176-878-10	–	MF-UB2017D	8″ / 200mm	7″ / 170mm	8.7″ / 220mm	XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7155	16.1 x 13.4″ / 410 x 342mm	10.6 x 9.4″ / 410 x 342mm	+ / – 5 degree (left)	44lbs / 20kg
176-879-10	–	MF-UB3017D	12″ / 300mm	7″ / 170mm	8.7″ / 220mm	XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7156	20.07 x 13.4″ / 510 x 342mm	14.5 x 9.4″ / 510 x 342mm	+ / – 5 degree (left)	44lbs / 20kg
176-880-10	–	MF-UB4020D	16″ / 400mm	8″ / 200mm	8.7″ / 220mm	XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7157	24 x 13.4″ / 610 x 342mm	17.3 x 9.4″ / 610 x 342mm	+ / – 3 degree (left)	33lbs / 15kg

176-876-10

176-877-10

176-878-10

176-879-10

176-880-10

Технические характеристики

Focusing Method:	Manual focusing ( coarse focusing: 30mm/rev, Fine Focusing: 0.2mm/rev)
Measuring Method:	Linear encoder (2-axis model: X/Y axis, 3-axis model: X/Y/Z axis
Indication accuracy:	Z-axis: (5+0.04)Lum, L = Measuring length (mm)
Floating Function:	X and Y axes with Quick-release mechanism
Resolution:	.0001/.00005/.00001 (.001mm/.0005mm/.0001mm)

Каталог

Мощная лазерная указка 5 Вт (5000 мВт) синего цвета 445 нм.

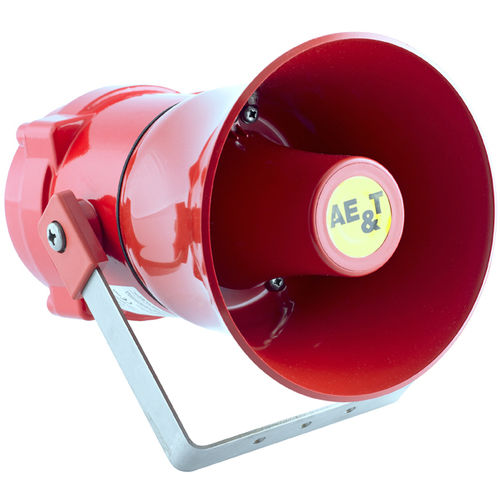

Мощный громкоговоритель BEXL25D, монтируемый на кронштейне, взрывозащищенный по стандарту ATEX.
