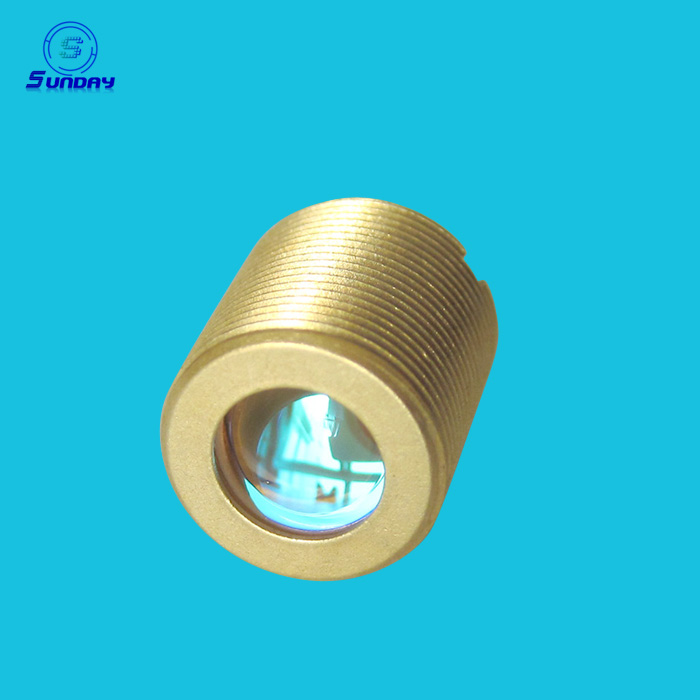

Коллиматор с оптоволоконным соединителем, 1310 нм, 9/125 мкм, одномодовый, FC/UPC Модель: F-COL-9-13-FCUPC-Опто

Технические характеристики

• Type Fiber-optic Collimator
• Fiber Type Singlemode
• Fiber Connector FC/UPC
• Operating Wavelength 1310 nm
• Maximum Insertion Loss 0.3 dB
• Typical Insertion Loss 0.2 dB
• Return Loss ≥ 55 dB
• Operating Temperature 0 to 70°C
• Operating Humidity 0.85
• Maximum Back Reflection -65 dB

• Beam Diameter (1/e2)
• Polarization Dependent Loss, Maximum 0.03 @ 1550 nm
• Polarization Dependent Loss, Typical 0.01 @ 1550 nm
• Acceptance Angle ≤ 0.15˚
• Beam Divergence ≤ 0.25˚
• Core Diameter 9 μm
• Cladding Diameter 125 μm
• Spectral Width (FWHM) ≥ ± 30 nm
• Working Distance 0.5 – 1.5 cm
