KL2545 | Bus Terminal, 2-channel PWM output, 8вЂ¦50В VВ DC, 3.5В A, current-controlled

The KL2545 output terminal controls an output current via pulse width control of the supply voltage. It is galvanically isolated from the K-bus. The current value (0 to В±3.5 A) is specified by the automation device via a 16 bit value. The output stage is protected against overload and short-circuit. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes. The LEDs simplify local diagnosis by displaying typical load and wiring faults.

0,00 ₽

Артикул: KL2545 Категорий: Compact drive technology, Home Page, I/O components, Motion, Products

Описание

Technical dataKL2545

Number of outputs	2
Nominal voltage	8вЂ¦50 V DC
Load type	inductive > 1 mH, valves, coils
Max. output current	2 x В±3.5 A (short-circuit proof, thermal-overload proof for both channels together)
PWM clock frequency	36 kHz
Duty factor	0вЂ¦100% (current-controlled)
Resolution	max. 12 bit
Electrical isolation	500 V (K-bus/field potential)
Current consumption power contacts	typ. 30 mA + load
Current consumption K-bus	typ. 100 mA
Bit width in the process image	48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status
Configuration	no address setting, configuration via Bus Coupler or controller
Weight	approx. 100 g
Operating/storage temperature	0вЂ¦+55В°C/-25вЂ¦+85В°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/see documentation
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE

Каталог

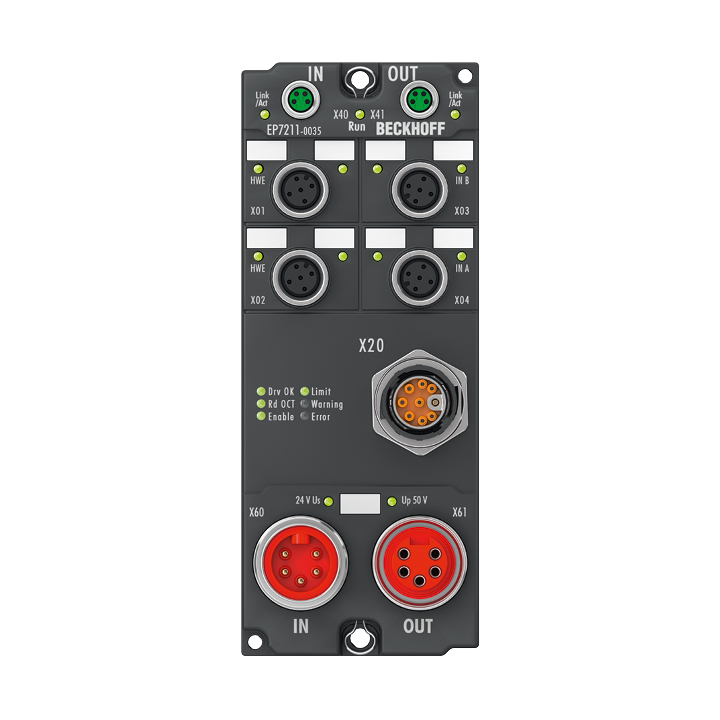

EP7211-0035 | EtherCAT Box, 1-канальный интерфейс движения, серводвигатель, 48 В В постоянного тока, 4,5 В А, OCT, подходит для приложений STO
