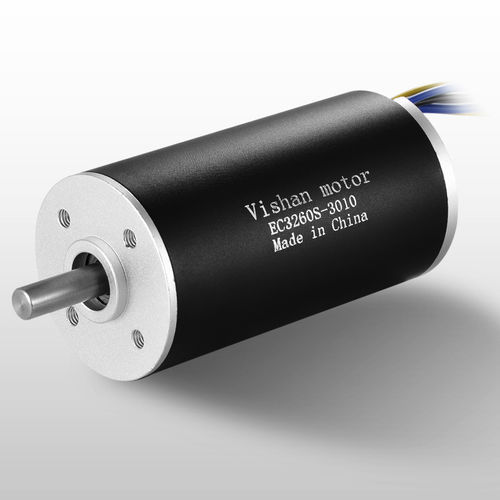

Vishan Motor Group

Vishan motor group is always well prepared to delivery our best service via such downsize and optimize brushless slotless DC motor, our Efficient work will assistant you to find the right solution from our products.

Конфигурация

• With or without Hall sensor
• Customized in the continuous operating range
• Ball bearing: Preload
• Flange: Standard frange front & back/customize the frange
• Shaft: Length/Diameter/Cut face/double shaft/hollow shaft
• Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length
• Connector: JST/MOLEX/TE

Технические характеристики

Characteristics

• Type: brushless
• Voltage: 24 V, 12 V, 48 V, 36 V
• Configuration: aluminum, slotless, hollow-shaft
• Number of poles: single-pole
• Applications: for pumps, for medical equipment, blower, for robotics, for power tools
• Other characteristics: high-efficiency, high-torque, low-noise, high-power, double Power

Power: 22 W (0.03 hp)

Current:

• Max.: 21,900 mA
• Min.: 79 mA

Torque:

• 0.018 Nm
• 0.173 Nm
• 0.175 Nm
• 0.18 Nm
• 0.199 Nm (0.0133 ft.lb)

Rotational speed:

• Max.: 30,000 rpm (188,495.56 rad.min-1)
• Min.: 12,446 rpm (78,200.52 rad.min-1)

Diameter: 24 mm (0.94 in)

Operating temperature:

• Max.: 100 °C (212 °F)
• Min.: -40 °C (-40 °F)
