AMP8542-Fx2z | Distributed servo drive with increased rotor moment of inertia 4.05 Nm (M0), F4 (87В mm)

The AMP8542 permanent magnet-excited three-phase synchronous motor with integrated servo drive and increased rotor moment of inertia can be equipped with either multi-turn or single-turn encoders. With One Cable Automation, the EtherCAT P single cable solution, it features a simple, convenient and fail-safe connection to the AMP8600 distributed power supply module or the AMP8800 decentralized distribution module.

0,00 ₽

Артикул: AMP8542-Fx2z Категорий: AMP8542, Distributed drive systems, Motion, Products, TwinSAFE safe drive technology, Домашняя страница

Описание

Data for 400 V ACAMP8542-Fx2z

Motor type	permanent magnet-excited three-phase synchronous motor with increased rotor moment of inertia and with integrated servo drive
DC link voltage	0вЂ¦848 V DC
Standstill torque	4.05В Nm
Rated torque	3.15 Nm
Peak torque	16.2 Nm
Rated speed	5000 min-1
Rated power	1.65 kW
Rotor moment of inertia	5.51 kgcmВІ
Motor feedback	multi-turn absolute encoder
System bus	EtherCAT
Drive profile	CiA402 according to IEC 61800-7-201 (CoE)
Connection technology	ECP B23 plug
Realization STO	by local TwinSAFE Logic or by FSoE
Safe stop functions	Safe Torque Off (STO), Safe Stop 1 (SS1)
Safety standard	EN ISO 13849-1:2015 (Cat 4, PL e), EN 61508:2010 (SILВ 3) and EN 62061:2005 + A1:2013/A2:2015 (SIL CL3)
Ambient temperature (operation)	+5вЂ¦+40В°C
Approvals/markings	CE, cULus, EAC, TГњV SГјd

Каталог

AA3053-6xyz | Электроцилиндр 12500В Н (Fmax), 1,0В м/с (vmax)

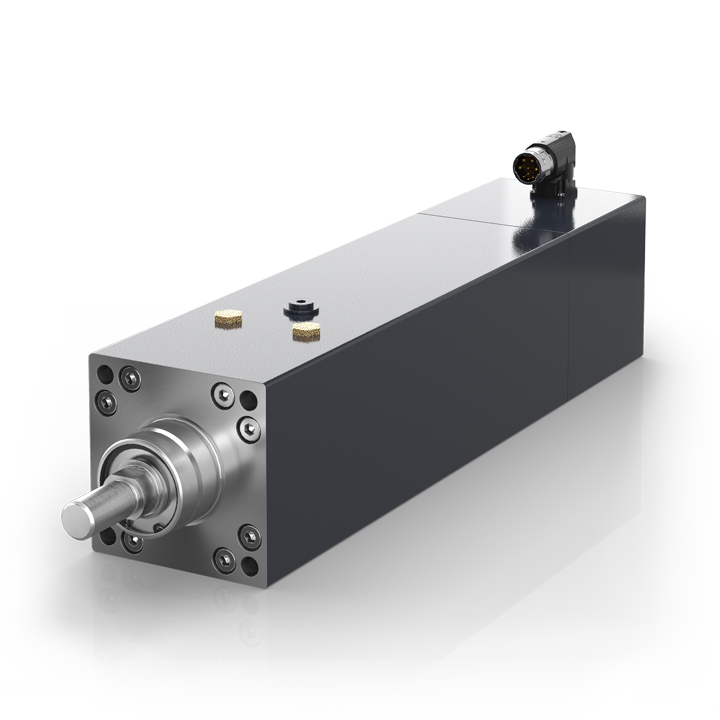

AA3053 | Electric cylinder 12,500вЂ¦25,000В N (Fmax), 0.5вЂ¦1.0В m/s (vmax)
