AMP8531-Cx1z | Distributed servo drive with increased rotor moment of inertia 1.38 Nm (M0), F3 (72В mm)

The AMP8531 permanent magnet-excited three-phase synchronous motor with integrated servo drive and increased rotor moment of inertia can be equipped with either multi-turn or single-turn encoders. With One Cable Automation, the EtherCAT P single cable solution, it features a simple, convenient and fail-safe connection to the AMP8600 distributed power supply module or the AMP8800 decentralized distribution module.

0,00 ₽

Артикул: AMP8531-Cx1z Категорий: AMP8531, Home Page, Motion, Products, Servo drives, TwinSAFE safe drive technology

Описание

Data for 400 V ACAMP8531-Cx1z

Motor type	permanent magnet-excited three-phase synchronous motor with increased rotor moment of inertia and with integrated servo drive
DC link voltage	0вЂ¦848 V DC
Standstill torque	1.38 Nm
Rated torque	1.36 Nm
Peak torque	6.10 Nm
Rated speed	3000 min-1
Rated power	0.43 kW
Rotor moment of inertia	1.67В kgcmВІ
Motor feedback	single-turn absolute encoder
System bus	EtherCAT
Drive profile	CiA402 according to IEC 61800-7-201 (CoE)
Connection technology	ECP B23 plug
Realization STO	by local TwinSAFE Logic or by FSoE
Safe stop functions	Safe Torque Off (STO), Safe Stop 1 (SS1)
Safety standard	EN ISO 13849-1:2015 (Cat 4, PL e), EN 61508:2010 (SILВ 3) and EN 62061:2005 + A1:2013/A2:2015 (SIL CL3)
Ambient temperature (operation)	+5вЂ¦+40В°C
Approvals/markings	CE, cULus, EAC, TГњV SГјd

Каталог

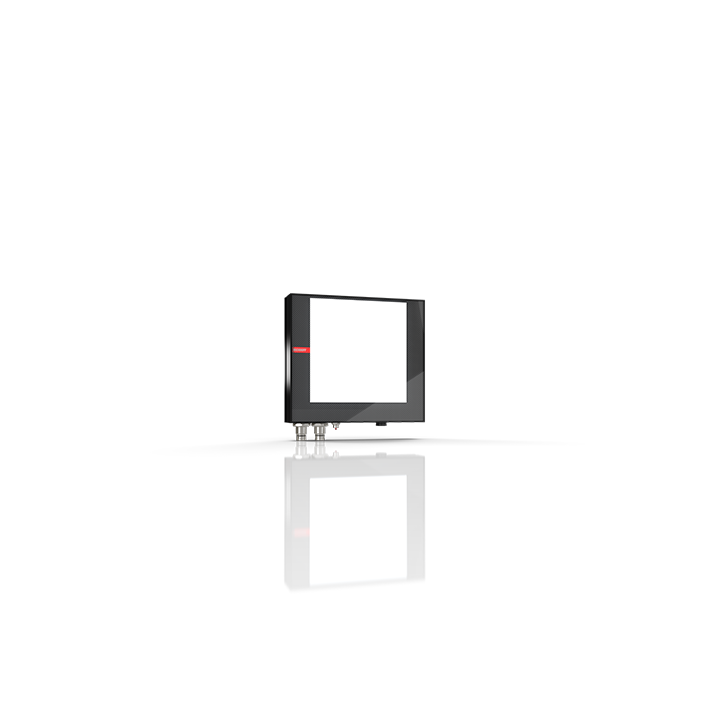

VIP2000-1515 | Panel illumination, OGB-IR850, wide beam, light emitting surface 150 x 150В mm
