AMP8031-Fx1z | Distributed servo drive 1.36 Nm (M0), F3 (72В mm)

The AMP8031 permanent magnet-excited three-phase synchronous motor with integrated servo drive can be equipped with either multi-turn or single-turn encoders. With One Cable Automation, the EtherCAT P single cable solution, it features a simple, convenient and fail-safe connection to the AMP8600 distributed power supply module or the AMP8800 decentralized distribution module.

0,00 ₽

Артикул: AMP8031-Fx1z Категорий: AMP8031, Distributed drive systems, Home Page, Motion, Products, TwinSAFE safe drive technology

Описание

Data for 400 V ACAMP8031-Fx1z

Motor type	permanent magnet-excited three-phase synchronous motor with integrated servo drive
DC link voltage	0вЂ¦848 V DC
Standstill torque	1.36 Nm
Rated torque	1.30 Nm
Peak torque	6.07 Nm
Rated speed	9000 min-1
Rated power	1.23 kW
Rotor moment of inertia	0.470В kgcmВІ
Motor feedback	single-turn absolute encoder
System bus	EtherCAT
Drive profile	CiA402 according to IEC 61800-7-201 (CoE)
Connection technology	ECP B23 plug
Realization STO	by local TwinSAFE Logic or by FSoE
Safe stop functions	Safe Torque Off (STO), Safe Stop 1 (SS1)
Safety standard	EN ISO 13849-1:2015 (Cat 4, PL e), EN 61508:2010 (SILВ 3) and EN 62061:2005 + A1:2013/A2:2015 (SIL CL3)
Ambient temperature (operation)	+5вЂ¦+40В°C
Approvals/markings	CE, cULus, EAC, TГњV SГјd

Каталог

Tractel Corso Push Trolly

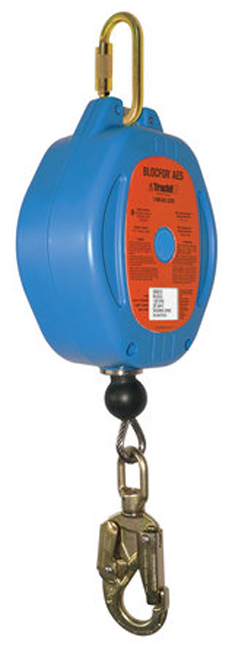

Tractel Blocfor Self-Retracting Lifeline
