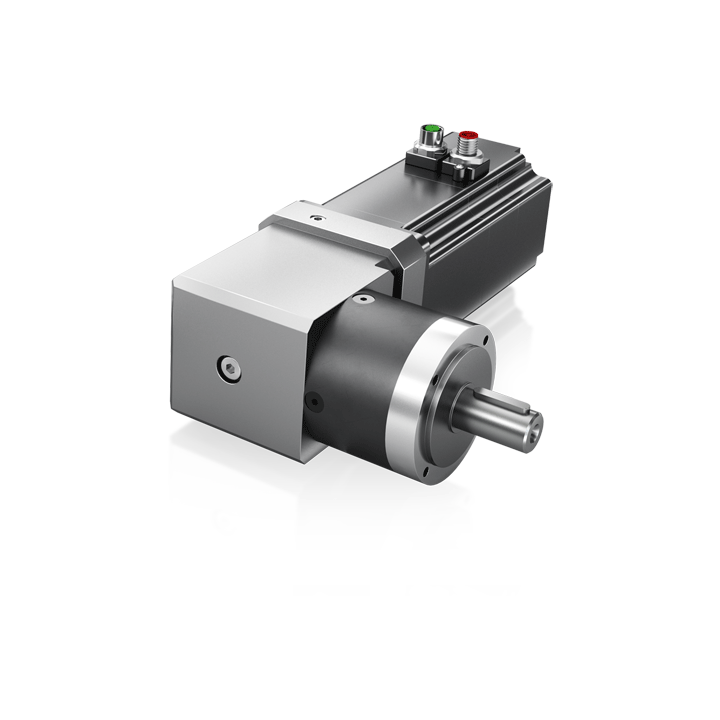

AG2250-+WPLE80-M03-60 | 3-stage angled planetary gear units for rotary servomotors

The AG2250 planetary gears are especially matched to the rotary motor series and have been expanded by 2- or 3-stage version. For better design, planetary and angled planetary gears are available with different transmission ratios.

0,00 ₽

Артикул: AG2250-+WPLE80-M03-60 Категорий: AG2250 | Planetary gear units for servo and stepper motors, AG2250-+WPLE80, Home Page, Motion, Planetary gears, Products

Описание

Technical dataAG2250-+WPLE80-M03-60

Design	angled
Variant	economy
Nominal output torque	110 Nm
Max. acceleration torque	176 Nm
Gear stages	3
Gear ratio	60
Max. torsional backlash standard/reduced	в‰¤ 17/вЂ“ arcmin
Ambient temperature (operation)	-25вЂ¦+40В°C
