C1023 PoE Transformer
900,00 ₽General specification Core Material: Ferrite Weight: 12.4 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
C1154-BL
0,00 ₽General specification Core Material: Ferrite Weight: 4.9 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.35 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
C1587-AL
675,00 ₽General specification Core Material: Ferrite Weight: 3.85 g Packaging: C1587-AL : 250 per 13 reel Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 11.2 mm pocket depth C1588/C1589-AL : 200 per 13 reel Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 11.2 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.
-
C1588-AL
450,00 ₽General specification Core Material: Ferrite Weight: 3.85 g Packaging: C1587-AL : 250 per 13 reel Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 11.2 mm pocket depth C1588/C1589-AL : 200 per 13 reel Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 11.2 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.
-
C1590-AL
450,00 ₽General specification Core Material: Ferrite Weight: 2.05 g Packaging: 350 per 13 reel Plastic tape: 32 mm wide, 0.42 mm thick, 20 mm pocket spacing, 9.16 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.
-
DA2062-AL PoE Transformer
1350,00 ₽General specification Core Material: Ferrite Weight: 2.4 g Packaging: 400 per 13 reel Plastic tape: 32 mm wide, 0.4 mm thick, 20 mm pocket spacing, 7.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More Info.
-
DA2257-AL PoE-трансформатор
450,00 ₽Общая спецификация Материал сердечника: Феррит Вес: 6,35 г Упаковка: 175 на 13 катушек. Пластиковая лента: ширина 32 мм, толщина 0,5 мм, расстояние между карманами 28 мм, глубина кармана 12,93 мм Пайка/мойка Уровень чувствительности к влаге (MSL): 1 (неограниченный срок службы при стойкости к нагреву при пайке: максимум три 40-секундных цикла оплавления при температуре +260 °C, детали охлаждаются до комнатной температуры между циклами. Перед пайкой ознакомьтесь с разделом «Паяние компонентов Coilcraft». Промывание печатной платы: протестировано только чистой водой или спиртом. Дополнительная информация.
-
DA2362-AL PoE Transformer
450,00 ₽General specification Core Material: Ferrite Weight: 6.3 g Packaging: 175 per 13 reel Plastic tape: 32 mm wide, 0.5 mm thick, 28 mm pocket spacing, 12.93 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Only pure water or alcohol recommended
-
DA2420-AL and DA2421-AL PoE Transformers
450,00 ₽General specification Weight: 14.1 – 14.6 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.p mm pocket depth Soldering Resistance to soldering heat: Three reflows at >,217C for 90 seconds (+260C ±,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering.
-
ETH1-460 PoE
2475,00 ₽General specification Core Material: Ferrite Weight: 3.6 g Packaging: 250/13 reel, Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 10.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.
-
FA2519-AL PoE Transformer
675,00 ₽General specification Weight: 13.5 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 11.9 mm pocket depth Soldering Resistance to soldering heat: Three reflows at >,217C for 90 seconds (+260C ±,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering.
-
FA2636-AL
450,00 ₽General specification Core Material: Ferrite Weight: 6.28 g Packaging: 175 per 13 reel Plastic tape: 32 mm wide, 0.5 mm thick, 32 mm pocket spacing, 12.98 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Only pure water or alcohol recommended
-
FA2677-AL
900,00 ₽General specification Core Material: Ferrite Weight: 13.6 – 13.9 g Packaging: 175 per 13 reel, Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More Info.
-
FA2898-AL
900,00 ₽General specification Core Material: Ferrite Weight: 13.6 – 13.9 g Packaging: 175 per 13 reel, Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More Info.
-
FA2900-AL
900,00 ₽General specification Core Material: Ferrite Weight: 13.6 – 13.9 g Packaging: 175 per 13 reel, Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More Info.
-
FA2924-AL
675,00 ₽Общая спецификация Материал сердечника: Феррит Вес: 6,57–6,71 г Упаковка: 175 на 13 катушек Пластиковая лента: ширина 32 мм, толщина 0,5 мм, расстояние между карманами 28 мм, глубина кармана 12,93 мм Пайка/мойка Уровень чувствительности к влаге (MSL): 1 (неограниченный срок службы при стойкости к нагреву при пайке: максимум три 40-секундных цикла оплавления при температуре +260 °C, детали охлаждаются до комнатной температуры между циклами. Перед пайкой ознакомьтесь с разделом «Паяние компонентов Coilcraft». Промывка печатной платы: протестировано по методу 215 MIL-STD-202 плюс дополнительная водная промывка. Дополнительная информация.
-
Flyback & Forward Transformers
675,00 ₽General specification Core Material: Ferrite Packaging: 150 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 14.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.
-
Flyback Transformer
1575,00 ₽General specification Core Material: Ferrite Weight: 5.3 – 5.7 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
-
Flyback Transformers
675,00 ₽General specification Core Material: Ferrite Weight: 5.0 – 5.6 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
GA3562-BL
900,00 ₽General specification Core Material: Ferrite Weight: 5.0 – 5.3 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.35 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.
-
HA3585-BL
1575,00 ₽General specification Core Material: Ferrite Weight: 5.3 – 5.7 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
-
HA3802-BL
1125,00 ₽General specification Core Material: Ferrite Weight: 5.0 – 5.3 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
-
HA3803-BL
900,00 ₽General specification Core Material: Ferrite Weight: 5.0 – 5.3 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
-
HA3809-AL
1125,00 ₽General specification Core Material: Ferrite Weight: 11.4 – 11.8 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
-
HA3905 Flyback Transformer
450,00 ₽General specification Core Material: Ferrite Weight: 6.7 g Packaging: 175 per 13 reel Plastic tape: 32 mm wide, 0.5 mm thick, 28 mm pocket spacing, 12.93 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: t Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Only pure water or alcohol recommended
-
HA3905-CL
450,00 ₽General specification Core Material: Ferrite Weight: 6.7 g Packaging: 175 per 13 reel Plastic tape: 32 mm wide, 0.5 mm thick, 28 mm pocket spacing, 12.93 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: t Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Only pure water or alcohol recommended
-
HPX2126L
2250,00 ₽General specification Core Material: Ferrite Weight: HPF2187L: 240 mg, HPX2126L: 3.9 g Packaging: HPF2187L: 500/7 reel, 2000/13 reel, Plastic tape: 16 mm wide, 0.35 mm thick, 8 mm pocket spacing, 4.4 mm pocket depth HPX2126L: 300/13 reel, Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 11 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.
-
JA4456-DL
1125,00 ₽General specification Core Material: Ferrite Weight: 11.7 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 12.0 mm pocket depth PCB washing Tested to MIL-STD-202 Method Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
-
Midspan PoE Plus Magnetics
900,00 ₽General specification Weight: 1.56 g Packaging: 400/13 reel 24 mm tape width Soldering Resistance to soldering heat: Three reflows at >,217C for 90 seconds (+260C ±,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering.
-
NA6083-BLD
0,00 ₽General specification Core Material: Ferrite Weight: 11.5 – 13.5 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 12 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE120PL-12L
1800,00 ₽Общая спецификация Материал сердечника: Феррит Вес: 11,1 – 11,9 г Упаковка: Дополнительная упаковка в виде ленты и катушки (за дополнительную плату). Только по заказу завода, не имеется на складе. POE120PL-12: рулон 250/13 Пластиковая лента: ширина 44 мм, толщина 0,5 мм, расстояние между карманами 28 мм, глубина кармана 9,40 мм POE120PL-24: рулон 200/13 Пластиковая лента: ширина 44 мм, толщина 0,5 мм, расстояние между карманами 28 мм, глубина кармана 9,98 мм POE120PL-33: рулон 200/13 Пластиковая лента: ширина 44 мм, толщина 0,5 мм, расстояние между карманами 28 мм, глубина кармана 10,68 мм POE120PL-50: рулон 250/13 Пластиковая лента: ширина 44 мм, толщина 0,5 мм, расстояние между карманами 28 мм, глубина кармана 9,78 мм Пайка/мытье Уровень чувствительности к влаге (MSL): ) 1 (неограниченный срок службы пола при Устойчивость к нагреву при пайке: макс. три 40 секунд оплавления при температуре +260C, детали охлаждаются до комнатной температуры между циклами. Перед пайкой ознакомьтесь с разделом «Паяние компонентов Coilcraft». Промывка печатной платы: протестировано по методу MIL-STD-202 215 плюс дополнительная промывка водой. Дополнительная информация.
-
POE13F-12
675,00 ₽General specification Core Material: Ferrite Weight: 5.0 – 5.6 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE13F-19
675,00 ₽General specification Core Material: Ferrite Weight: 5.0 – 5.6 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE13F-24
675,00 ₽General specification Core Material: Ferrite Weight: 5.0 – 5.6 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE13F-25
675,00 ₽General specification Core Material: Ferrite Weight: 5.0 – 5.6 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE13F-33
675,00 ₽General specification Core Material: Ferrite Weight: 5.0 – 5.6 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE13P-24
675,00 ₽General specification Core Material: Ferrite Weight: 2.05 g, 3.85 g, 6.15 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE13P-33
675,00 ₽General specification Core Material: Ferrite Weight: 2.05 g, 3.85 g, 6.15 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE13P-50
675,00 ₽General specification Core Material: Ferrite Weight: 2.05 g, 3.85 g, 6.15 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE21PR-33
675,00 ₽General specification Core Material: Ferrite Packaging: 150 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 14.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.
-
POE22PR-50
675,00 ₽General specification Core Material: Ferrite Packaging: 150 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 14.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.
-

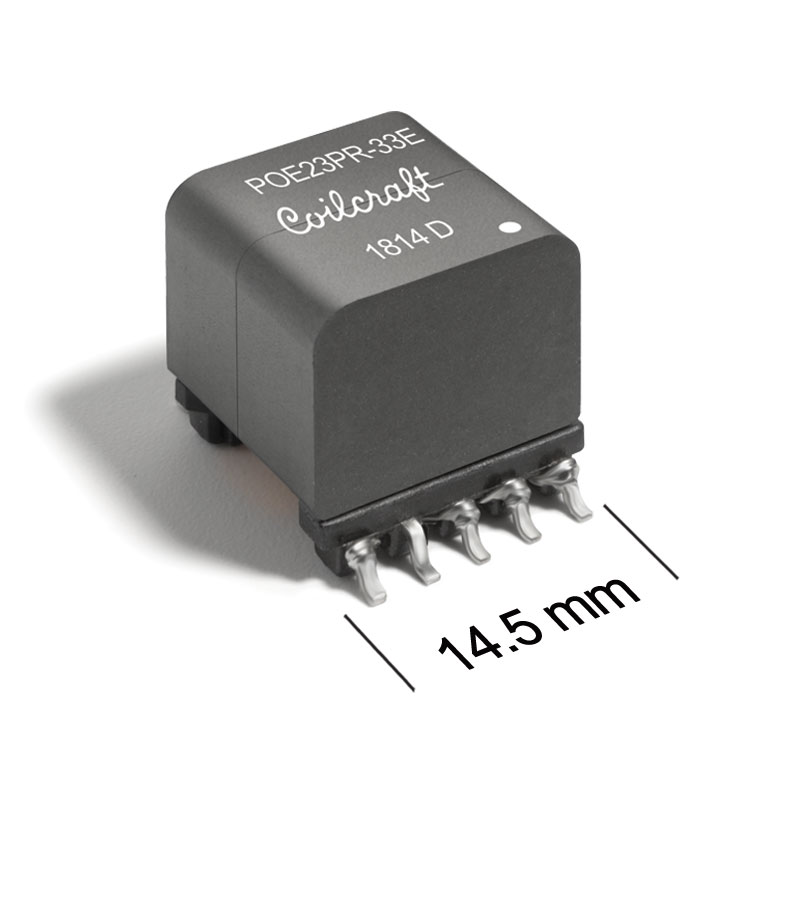

POE23PR-33
675,00 ₽General specification Core Material: Ferrite Packaging: 150 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 14.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.
-
POE24PR-12
675,00 ₽Общая спецификация Материал сердечника: феррит Упаковка: 150 на 13 катушек Пластиковая лента: ширина 44 мм, толщина 0,5 мм, расстояние между карманами 28 мм, глубина карманов 14,6 мм Уровень чувствительности к влаге (MSL) пайки/мойки: 1 (неограниченный срок службы при стойкости к нагреву при пайке: максимум три 40-секундных цикла оплавления при температуре +260 °C, детали охлаждаются до комнатной температуры между циклами Перед пайкой ознакомьтесь с разделом «Паяние компонентов Coilcraft».
-
POE300 Flyback Transformers
675,00 ₽General specification Core Material: Ferrite Weight: 11.9 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth
-
POE30P-50
450,00 ₽General specification Core Material: Ferrite Weight: 2.05 g, 3.85 g, 6.15 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
-
POE35PR-50
675,00 ₽General specification Core Material: Ferrite Packaging: 150 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 14.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.
-
POE36PR-12
675,00 ₽General specification Core Material: Ferrite Packaging: 150 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 14.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.
-
POE38PR-12
675,00 ₽General specification Core Material: Ferrite Packaging: 150 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 14.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.
-
POE40Q-48
675,00 ₽General specification Core Material: Ferrite Weight: 6.5 – 8 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.
-
POE51Q-12
675,00 ₽General specification Core Material: Ferrite Weight: 6.5 – 8 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.
Power Over Ethernet
