POE21PR-33

General specification Core Material: Ferrite Packaging: 150 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 14.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.

675,00 ₽

Артикул: POE21PR-33ED Категорий: POE21PR-33, POExxPR, Power Over Ethernet, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Flyback Transformers

Part number (Hover for schematics)	Power (W)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Isat (A) 2	DCR max (mΩ)				Leakage Inductance max (H) 3	Turns Ratio	Isolation Voltage (Vrms) 5	Secondary Output (V, A) 6
Part number (Hover for schematics)	Power (W)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Isat (A) 2	Pri	Sec1	Sec2	Aux	Leakage Inductance max (H) 3	Pri : Sec1 : Sec2 : Aux	Isolation Voltage (Vrms) 5	Secondary Output (V, A) 6
POE21PR-33E_	21	21	6.2	31.0	10.0	10.0	80.0	0.30	1 : 0.231 : 0.231 : 0.692	1500	3.3 V , 3.2 A

Каталог

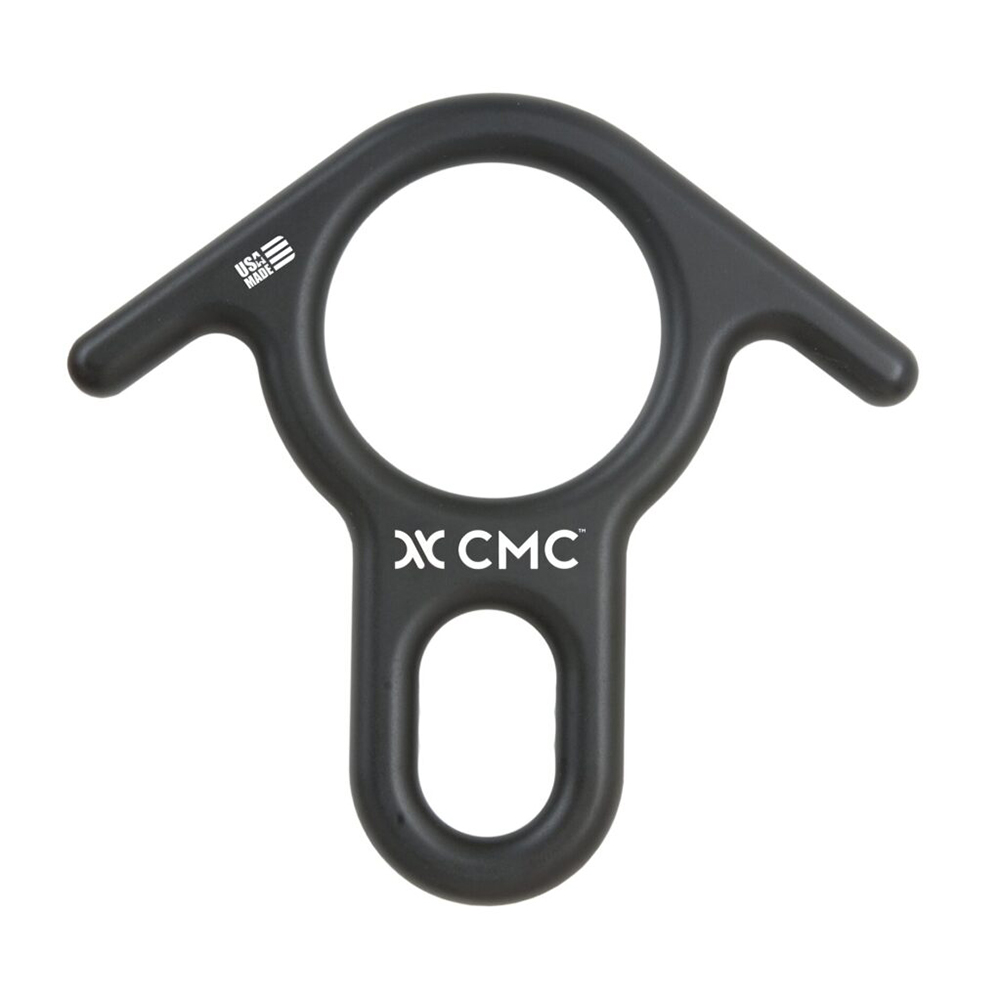

CMC Rescue 8 Descender

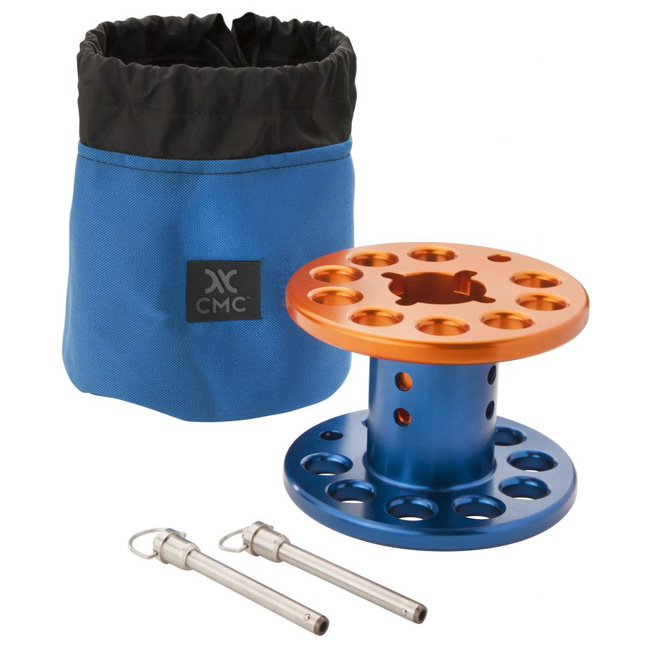

CMC AZORP (Arizona Omni Rigging Pod) Kit
