POE600F-33L

General specification Core Material: Ferrite Weight: 12.7 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

1350,00 ₽

Артикул: POE600F-33LD Категорий: POE600, POE600F-33L, Power Over Ethernet, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,20%)	DCR max (mΩ) 3			Leakage Inductance max (H) 4	Turns Ratio	Isolation Voltage (Vrms) 5	Secondary Output (V, A)
Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,20%)	Pri	Sec	Aux	Leakage Inductance max (H) 4	Pri : Sec : Aux	Isolation Voltage (Vrms) 5	Secondary Output (V, A)
POE600F-33L_	60	100	35.0	2.3	185	0.55	1 : 0.167 : 0.583	1500	3.3 V , 18.18 A

Каталог

Channellock Straight Jaw Tongue & Groove Pliers

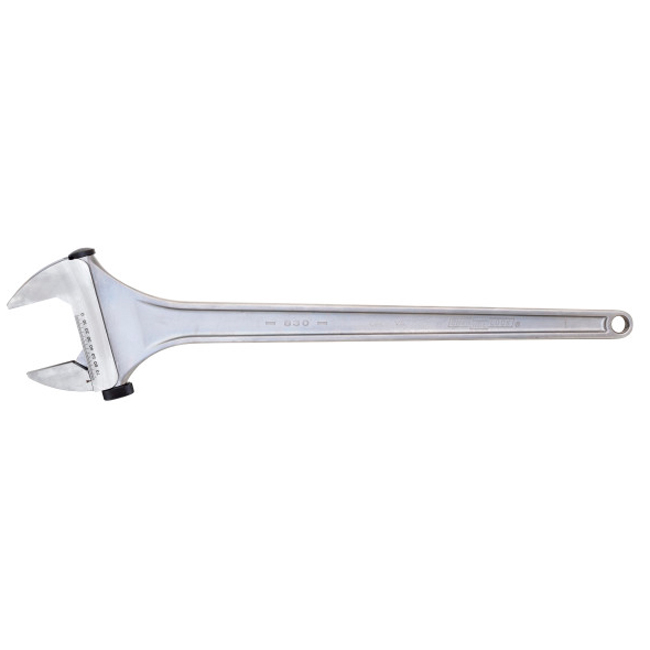

Channellock 830 30-Inch Adjustable Wrench
