IP3112-B310 | Fieldbus Box, 4-channel analog input, PROFIBUS, current, 0/4…20 mA, 16 bit, differential, M12
0,00 ₽The IP3112 analog input module handles signals in the range from 0/4 to 20В mA. The input current is digitized to a resolution of 16В bits (the default is 15В bits) and is transmitted, electrically isolated, to the higher-level automation device. The four input channels have differential inputs and possess a common, internal ground potential. The applied auxiliary voltage (which can be any value up to 30В VВ DC) is fed through to supply the sensor. The module is quite versatile, but default settings have been selected in such a way that in most cases it is not necessary to perform configuration. The input filter and associated conversion times can be set within a wide range, several data output formats may be chosen. If required, the inputs can be scaled differently. Automatic limit monitoring is also available. Parameterization may be carried out either via the fieldbus or, using the KS2000 software tool, through the configuration interface. The parameters are stored in the module.
-
IP3112-B318 | Fieldbus Box, 4-channel analog input, PROFIBUS, current, 0/4…20 mA, 16 bit, differential, M12, integrated T-connector
0,00 ₽The IP3112 analog input module handles signals in the range from 0/4 to 20В mA. The input current is digitized to a resolution of 16В bits (the default is 15В bits) and is transmitted, electrically isolated, to the higher-level automation device. The four input channels have differential inputs and possess a common, internal ground potential. The applied auxiliary voltage (which can be any value up to 30В VВ DC) is fed through to supply the sensor. The module is quite versatile, but default settings have been selected in such a way that in most cases it is not necessary to perform configuration. The input filter and associated conversion times can be set within a wide range, several data output formats may be chosen. If required, the inputs can be scaled differently. Automatic limit monitoring is also available. Parameterization may be carried out either via the fieldbus or, using the KS2000 software tool, through the configuration interface. The parameters are stored in the module.
-
IP3112-B510 | Fieldbus Box, 4-канальный аналоговый вход, CANopen, ток, 0/4–20 В мА, 16 В бит, дифференциальный, M12
0,00 ₽The IP3112 analog input module handles signals in the range from 0/4 to 20В mA. The input current is digitized to a resolution of 16В bits (the default is 15В bits) and is transmitted, electrically isolated, to the higher-level automation device. The four input channels have differential inputs and possess a common, internal ground potential. The applied auxiliary voltage (which can be any value up to 30В VВ DC) is fed through to supply the sensor. The module is quite versatile, but default settings have been selected in such a way that in most cases it is not necessary to perform configuration. The input filter and associated conversion times can be set within a wide range, several data output formats may be chosen. If required, the inputs can be scaled differently. Automatic limit monitoring is also available. Parameterization may be carried out either via the fieldbus or, using the KS2000 software tool, through the configuration interface. The parameters are stored in the module.
-

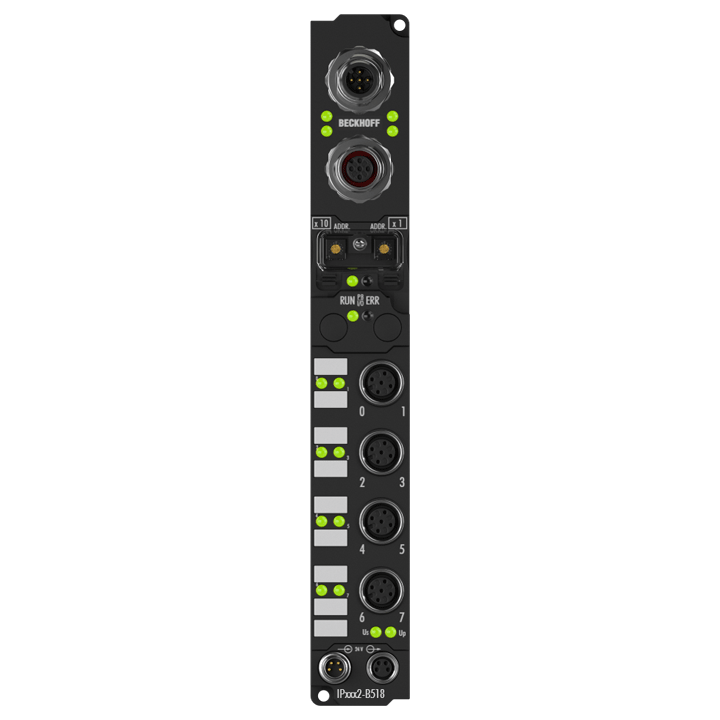

IP3112-B518 | Fieldbus Box, 4-channel analog input, CANopen, current, 0/4…20 mA, 16 bit, differential, M12, integrated T-connector
0,00 ₽The IP3112 analog input module handles signals in the range from 0/4 to 20В mA. The input current is digitized to a resolution of 16В bits (the default is 15В bits) and is transmitted, electrically isolated, to the higher-level automation device. The four input channels have differential inputs and possess a common, internal ground potential. The applied auxiliary voltage (which can be any value up to 30В VВ DC) is fed through to supply the sensor. The module is quite versatile, but default settings have been selected in such a way that in most cases it is not necessary to perform configuration. The input filter and associated conversion times can be set within a wide range, several data output formats may be chosen. If required, the inputs can be scaled differently. Automatic limit monitoring is also available. Parameterization may be carried out either via the fieldbus or, using the KS2000 software tool, through the configuration interface. The parameters are stored in the module.
-

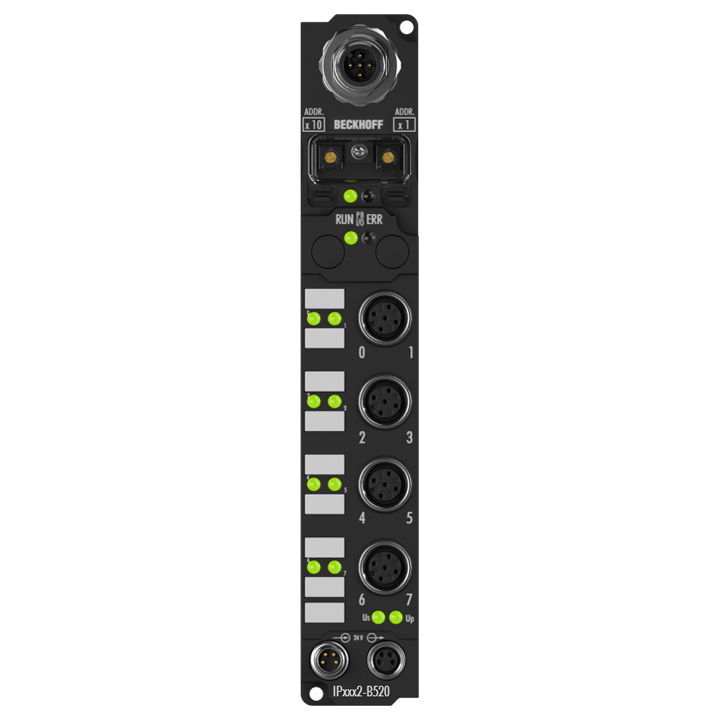

IP3112-B520 | Fieldbus Box, 4-канальный аналоговый вход, DeviceNet, ток, 0/4–20 В мА, 16 В бит, дифференциальный, M12
0,00 ₽The IP3112 analog input module handles signals in the range from 0/4 to 20В mA. The input current is digitized to a resolution of 16В bits (the default is 15В bits) and is transmitted, electrically isolated, to the higher-level automation device. The four input channels have differential inputs and possess a common, internal ground potential. The applied auxiliary voltage (which can be any value up to 30В VВ DC) is fed through to supply the sensor. The module is quite versatile, but default settings have been selected in such a way that in most cases it is not necessary to perform configuration. The input filter and associated conversion times can be set within a wide range, several data output formats may be chosen. If required, the inputs can be scaled differently. Automatic limit monitoring is also available. Parameterization may be carried out either via the fieldbus or, using the KS2000 software tool, through the configuration interface. The parameters are stored in the module.
-
IP3112-B528 | Fieldbus Box, 4-channel analog input, DeviceNet, current, 0/4…20 mA, 16 bit, differential, M12, integrated T-connector
0,00 ₽Аналоговый входной модуль IP3112 обрабатывает сигналы в диапазоне от 0/4 до 20 В мА. Входной ток оцифровывается до разрешения 16 В бит (по умолчанию 15 В бит) и передается, электрически изолированно, на устройство автоматизации более высокого уровня. Четыре входных канала имеют дифференциальные входы и обладают общим внутренним потенциалом заземления. Приложенное вспомогательное напряжение (которое может иметь любое значение до 30 В постоянного тока) подается для питания датчика. Модуль достаточно универсален, но настройки по умолчанию были выбраны таким образом, что в большинстве случаев нет необходимости выполнять настройку. Входной фильтр и соответствующее время преобразования могут быть установлены в широком диапазоне, можно выбрать несколько форматов вывода данных. При необходимости входы можно масштабировать по-разному. Также доступен автоматический контроль пределов. Параметризация может осуществляться либо через полевую шину, либо с помощью программного инструмента KS2000 через интерфейс настройки. Параметры хранятся в модуле.
