EPI2008-0001 | IO-Link box, 8-channel digital output, 24В VВ DC, 0.5В A, M8
0,00 ₽The EPI2008-0001 IO-Link box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 0.5В A, and although the total current is limited to 4В A, they indicate their status through light emitting diodes. The signals are connected via M8 screw type connectors. The outputs are short-circuit proof and protected against inverse connection.
-
EPI2008-0002 | IO-Link box, 8-channel digital output, 24В VВ DC, 0.5В A, M12
0,00 ₽The EPI2008-0002 IO-Link box with digital outputs connects binary control signals from the controller on to the actuators at the process level. The eight outputs handle load currents of up to 0.5В A, and although the total current is limited to 4В A, they indicate their status through light emitting diodes. The signals are connected via M12 screw type connectors. The outputs are short-circuit proof and protected against inverse connection.
-

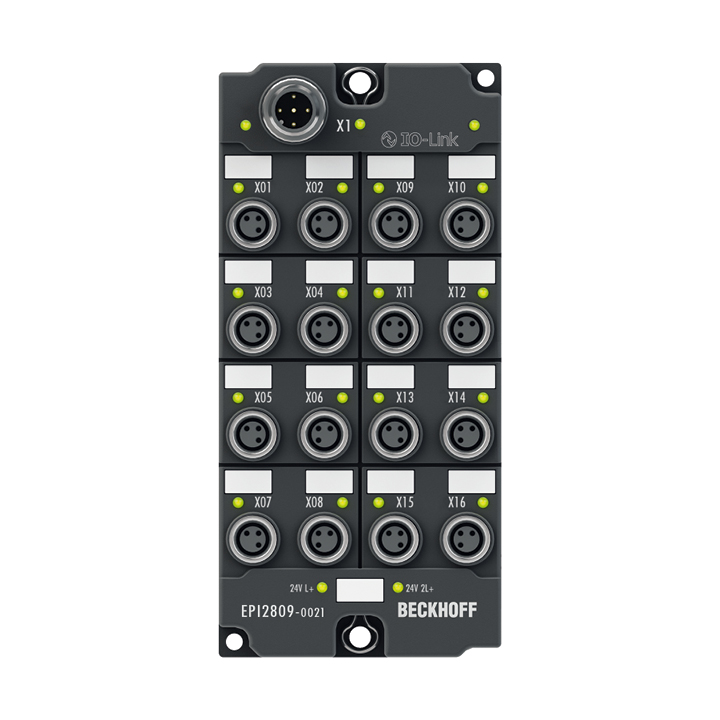

EPI2809-0021 | IO-Link box, 16-channel digital output, 24В VВ DC, 0.5В A, M8
0,00 ₽The EPI2809-0021 IO-Link box with digital outputs connects the binary control signals from the controller on to the actuators at the process level. The 16 outputs handle load currents of up to 0.5В A each, although the total current is limited to 4В A. This makes these modules particularly suitable for applications in which not all of the outputs are active at the same time, or in which not all of the actuators draw 0.5В A current.
