EP1859-0042 | EtherCAT Box, 8-канальный цифровой вход + 8-канальный цифровой выход, 24 В В постоянного тока, 3 В мс, 0,5 В А, M12
0,00 ₽EtherCAT Box EP1859-0042 объединяет восемь цифровых входов (четыре разъема M12 слева) и восемь цифровых выходов (четыре разъема M12 справа) в одном устройстве. Входы имеют фильтр 3,0 В мс. Выходы обрабатывают токи нагрузки до 0,5 В А, защищены от короткого замыкания и переполюсовки. Состояние сигналов отображается светодиодами. Сигналы подключаются через винтовые разъемы M12.
-
EP1957-0022 | EtherCAT Box, 8-channel digital input + 4-channel digital output, 24В VВ DC, 0.5В A, M12, TwinSAFE, TwinSAFE Logic
0,00 ₽The EP1957-0022 TwinSAFE component provides safe digital outputs in a module with IP67 protection (four outputs for 24В VВ DC actuators up to 0.5В A). It also has eight fail-safe inputs for sensors with potential-free contacts for 24В VВ DC. The signals are connected via M12 screw connectors. The sensors are powered by the load voltage UP.
-

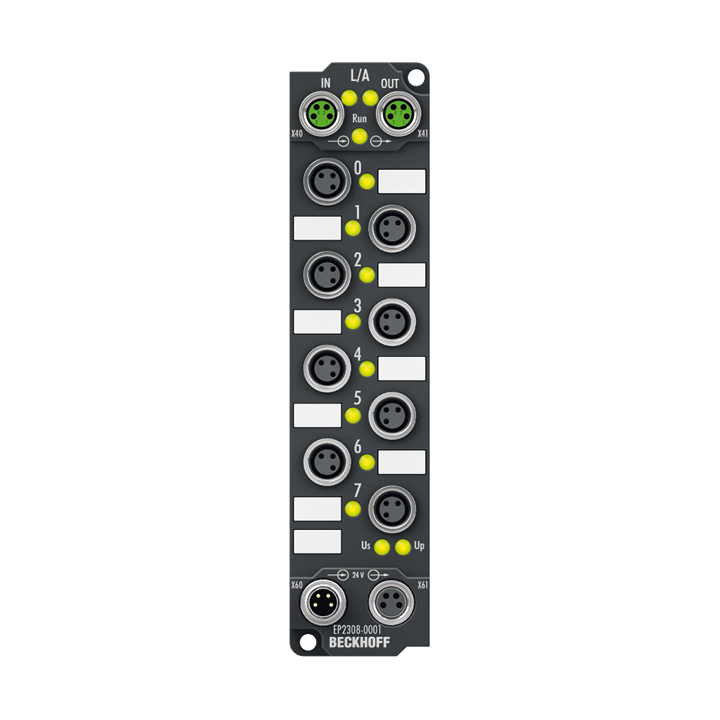

EP2308-0001 | EtherCAT Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 3В ms, 0.5В A, M8
0,00 ₽The EP2308-0001 EtherCAT Box combines four digital inputs (four M8 sockets at the top) and four digital outputs (four M8 sockets at the bottom) in one device. The inputs have a filter of 3.0В ms. The outputs process load currents up to 0.5В A and are short-circuit-proof and protected against reverse polarity. The signal status is indicated by LEDs. The signals are connected via screw type M8 connectors.
-

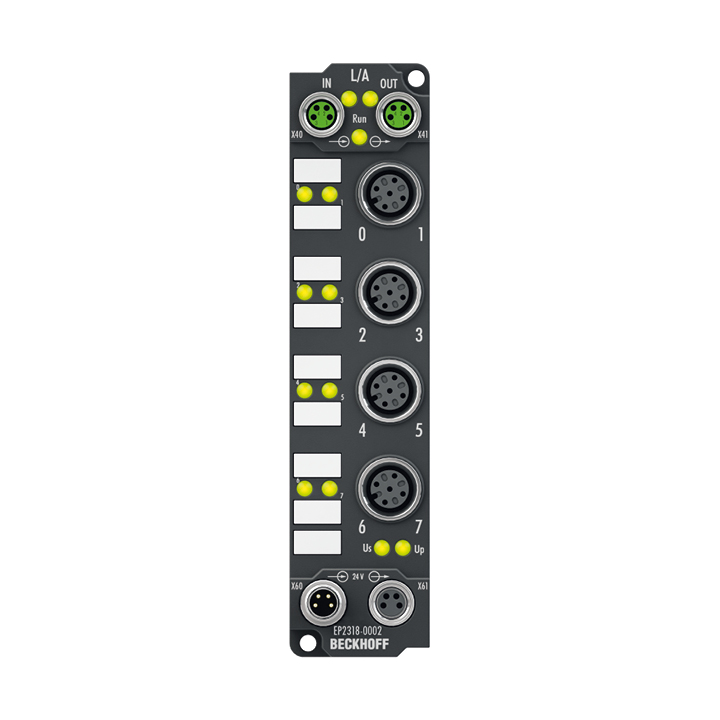

EP2318-0002 | EtherCAT Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 10В Вµs, 0.5В A, M12
0,00 ₽The EP2318-0002 EtherCAT Box combines four digital inputs (two M12 sockets at the top) and four digital outputs (two M12 sockets at the bottom) in one device. The inputs have a filter of 10В Вµs. The outputs process load currents up to 0.5В A, are short-circuit-proof and protected against reverse polarity. The signal status is indicated by LEDs. The signals are connected via M12 screw type connectors. Two channels are available per M12 socket.
-

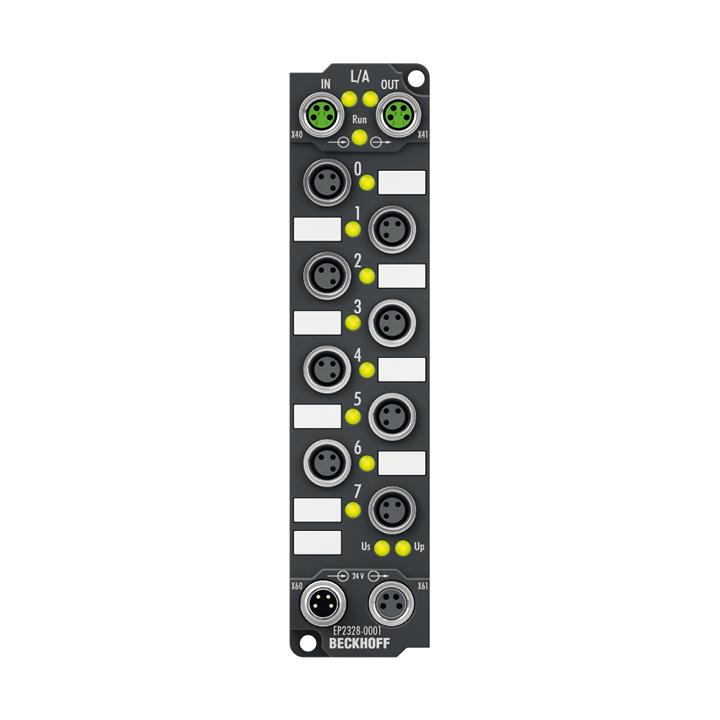

EP2328-0001 | EtherCAT Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 3В ms, 2В A, M8
0,00 ₽The EP2328-0001 EtherCAT Box combines four digital inputs (four M8 sockets at the top) and four digital outputs (four M8 sockets at the bottom) in one device. The inputs have a filter of 3.0В ms. The outputs process load currents up to 2.0В A, are short-circuit-proof and protected against reverse polarity. The signal status is indicated by LED. The signals are connected via M8 screw type connectors. The total current of all outputs is limited to 4В A.
-

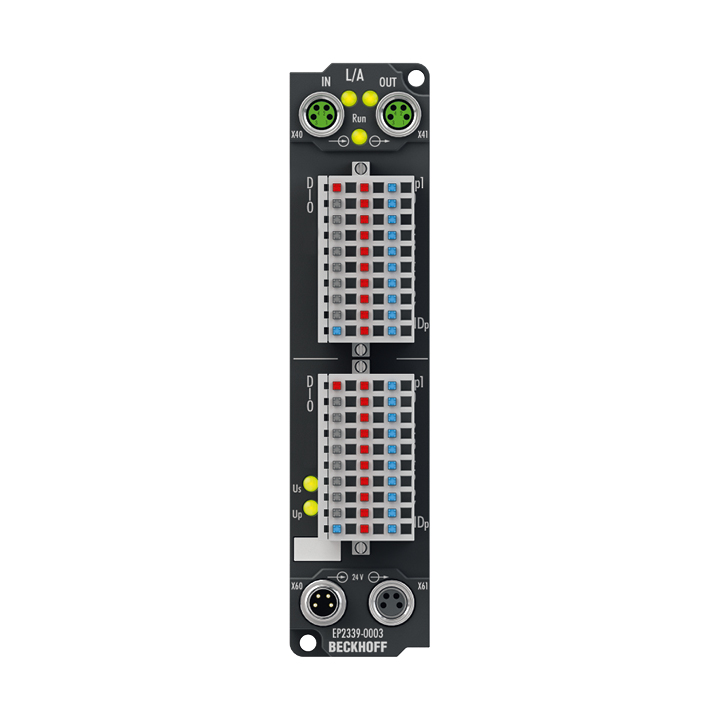

EP2339-0003 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, IP20 connector
0,00 ₽The EP2339-0003 EtherCAT Box has 16 digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
-
EP2339-0021 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M8Preferred type
0,00 ₽The EP2339-0021 EtherCAT Box has 16 digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel (pin 4 of the M8) is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
-

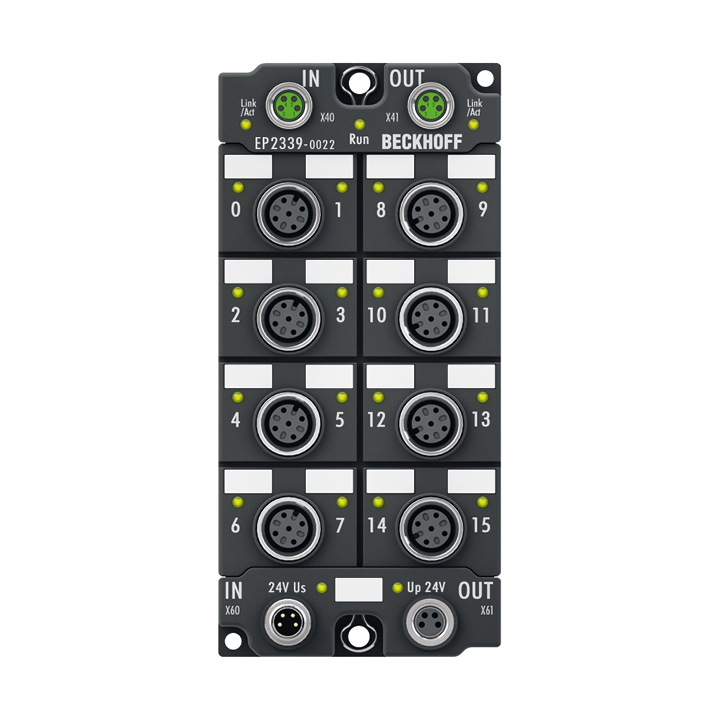

EP2339-0022 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M12
0,00 ₽The EP2339-0022 EtherCAT Box has 16 digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel (pin 2 and 4 of the M12) is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
-

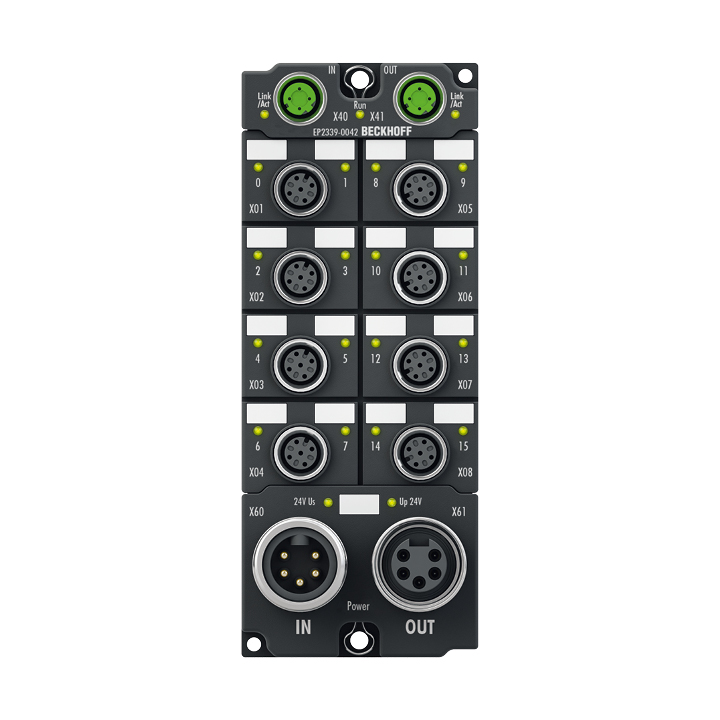

EP2339-0042 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M12
0,00 ₽The EP2339-0042 EtherCAT Box has 16 digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel (pin 2 and 4 of the M12) is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
