EP1xxx | Digital input

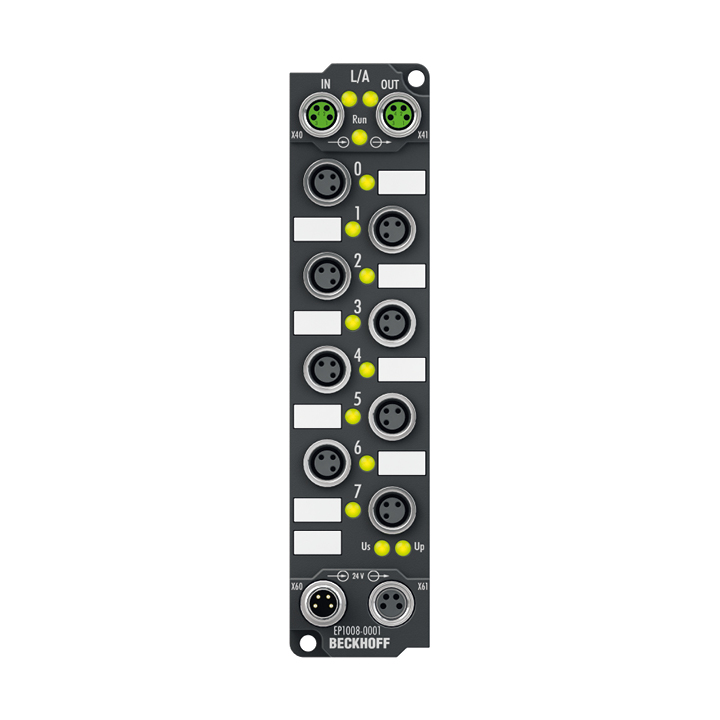

The EP1008-0001 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M8 screw type connectors.

EtherCAT Box EP1809-0021 с цифровыми входами получает двоичные сигналы управления с уровня процесса и передает их в электрически изолированной форме на контроллер. Состояние сигналов отображается светодиодами. Сигналы подключаются через винтовые разъемы M8.

The EP1839-0042 EtherCAT Box with 16 digital inputs acquires binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The signal state is indicated by LEDs. The signals are connected via M12 screw type connectors. An open-circuit recognition can be enabled/disabled for each channel. The signal input filters are individually adjustable. Each M12 socket has an independent 24В VВ DC/0.5В A short-circuit proof sensor supply from the US for the two connected sensors. This is monitored and any errors are reported to the PLC via diagnostics. Module-related undervoltage detection of the input voltage takes place. The load voltage UP is not used in the input module, but it can optionally be connected for forwarding and is fed through to the next device. Due to the adjustable input filter and the comprehensive supply and diagnostics logic, the EP1839-0042 is particularly suitable for applications in which a high plant availability and thus fast fault-finding and troubleshooting are required. The EP1839-0042 has M12 D-coded EtherCAT connections and 7/8′ connectors for the power supply.

The EP2316-0008 EtherCAT Box combines eight digital inputs (upper socket connector) and eight digital outputs (lower socket connector) in a single device. The inputs have a filter of 10В Вµs. The outputs process load currents up to 0.5В A and are short-circuit-proof and protected against reverse polarity. The signal status is displayed via the optional plug connector. The signal connection is made via spring-cage connectors, optionally available in 1- and 3-pole versions. The module is delivered without connectors.

The EP2338-1001 EtherCAT Box has eight digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel (pin 4 of the M8) is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
