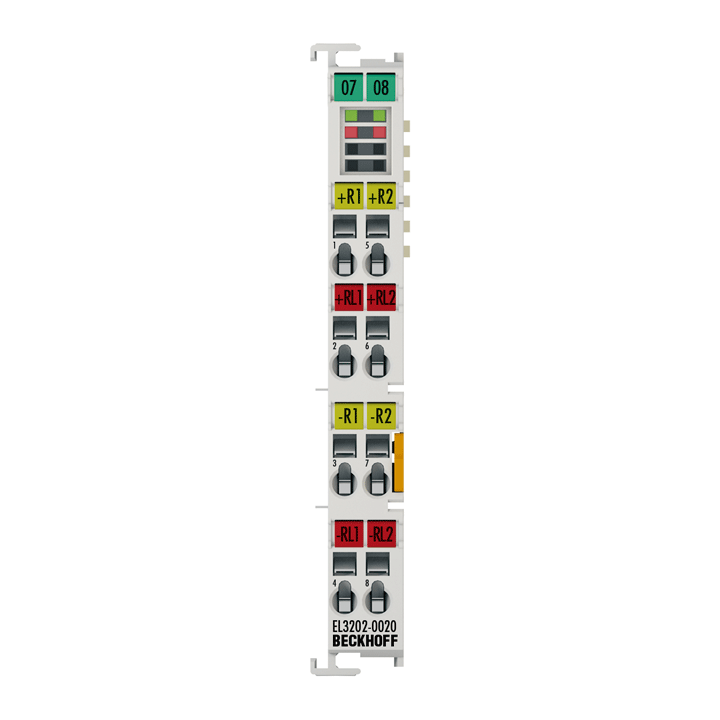

EL3202-0020 | EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16В bit, high-precision, factory calibrated
0,00 ₽The EL3202-0020 is the factory calibrated version of the EL3202-0010. The EL3202-0020 analog input terminal facilitates the direct connection of two resistance sensors. The measured resistance value can either be output directly in ohms or transformed into a temperature. If the temperature at the measuring point is of interest, the conversion from resistance to temperature can be carried out in the terminal according to various sensor characteristics (Pt100, Pt1000, NI120, NI1000, KTY types, etc.). The EL3202-0020 can operate sensors in 4-wire technology, external bridges must be set for the 2- and 3-wire connection. This terminal must be operated using 4-wire technology for maximum accuracy. The EtherCAT Terminals indicate their measurement capability by means of light emitting diodes and status bits in the EtherCAT process image.
-
EL3356-0030 | EtherCAT Terminal, 1-channel analog input, measuring bridge, fullВ bridge, 24В bit, high-precision, externally calibrated
0,00 ₽The analog EL3356-0030 input terminal enables direct connection of a resistor bridge or load cell in a 4- or 6-wire connection technology. The ratio between the bridge voltage UD and the supply voltage UREF is determined simultaneously in the input circuit and the final load value is calculated as a process value on the basis of the settings in the terminal. With automatic self-calibration (can be deactivated), dynamic filters and distributed clock support, the terminal with measuring cycles of 100В Вµs can be used for fast and precise monitoring of torque or vibration sensors.
-

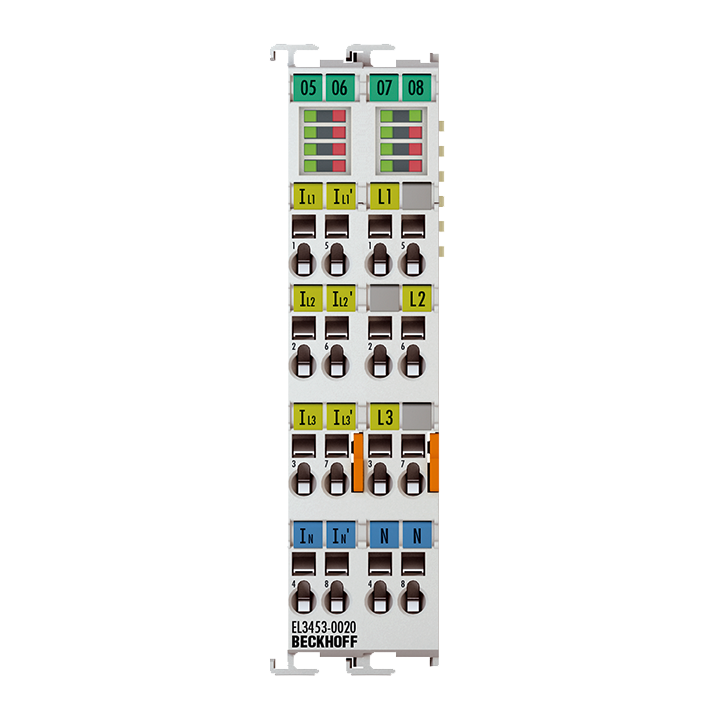

EL3453-0020 | EtherCAT Terminal, 3-channel analog input, power measurement, 690В VВ AC, 0.1/1/5В A, 24В bit, electrically isolated, factory calibrated
0,00 ₽The EL3453-0020 EtherCAT power measurement terminal has voltage inputs for direct monitoring of high-capacity generators up to max. 690 V AC, as is common in the wind industry, for example. No upstream voltage transformer is required. The four current inputs are electrically isolated so that the terminal can be used in all common grounded current transformer configurations such as 2- or 3-transformer configurations with star or delta connection incl. neutral conductor current measurement. The EL3453-0020 can be used for simple grid analysis up to the 63rd harmonics analysis. Alternatively, all readings can be combined in a power quality factor for simplified diagnostics. Like all measured terminal data, the harmonic content can be read via the process data. The EL3453-0020 offers the “ExtendedRange” feature enabling the use of the full technical measuring range, which equals 130% of the specified nominal measuring range.
-
EL3612-0020 | Терминал EtherCAT, 2-канальный аналоговый вход, ток, 0–20 мА, 24 бит, высокая точность, заводская калибровка
0,00 ₽Аналоговый входной терминал EL3612-0020 обрабатывает сигналы в диапазоне от 0 до 20 В мА. Напряжение оцифровывается с разрешением 24 В бит и передается, электрически изолированным, на устройство автоматизации более высокого уровня. Входные каналы терминала EtherCAT имеют дифференциальные входы и обладают общим внутренним потенциалом заземления. Состояние сигнала терминала EtherCAT отображается светодиодами.
-

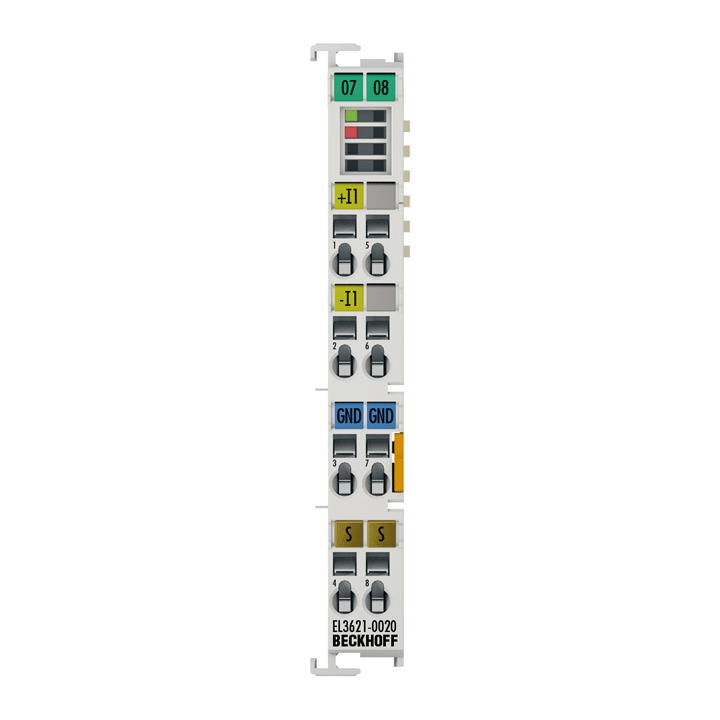

EL3621-0020 | EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 24 bit, high-precision, factory calibrated
0,00 ₽The EL3621-0020 analog input terminal handles signals in the range between 4 and 20В mA. The voltage is digitized to a resolution of 24В bit and is transmitted, electrically isolated, to the higher-level automation device. The terminal has a differential input. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
-
EL3751-0020 | EtherCAT Terminal, 1-channel analog input, multi-function, 24В bit, 10В ksps, factory calibrated
0,00 ₽The EL3751-0020 analog input terminal is part of the new generation of analog EtherCAT measurement terminals. The nominal measuring range of the input channel can be comprehensively parameterized, both electrically and on the software side:
-
EL3751-0024 | Терминал EtherCAT, 1-канальный аналоговый вход, температура, термометр сопротивления (Pt100), 24 В бит, 10 В квыб/с, заводская калибровка
0,00 ₽Аналоговый входной терминал EL3751-0024 является вариантом многофункционального терминала EL3751-0000, который был уменьшен до сопротивления или измерения температуры (RTD). Он измеряет до 5В кОм полной шкалы в 2-/3-/4-проводном соединении. Также могут быть подключены датчики температуры RTD (Pt100/1000, NI, KTY и т. д.).
-

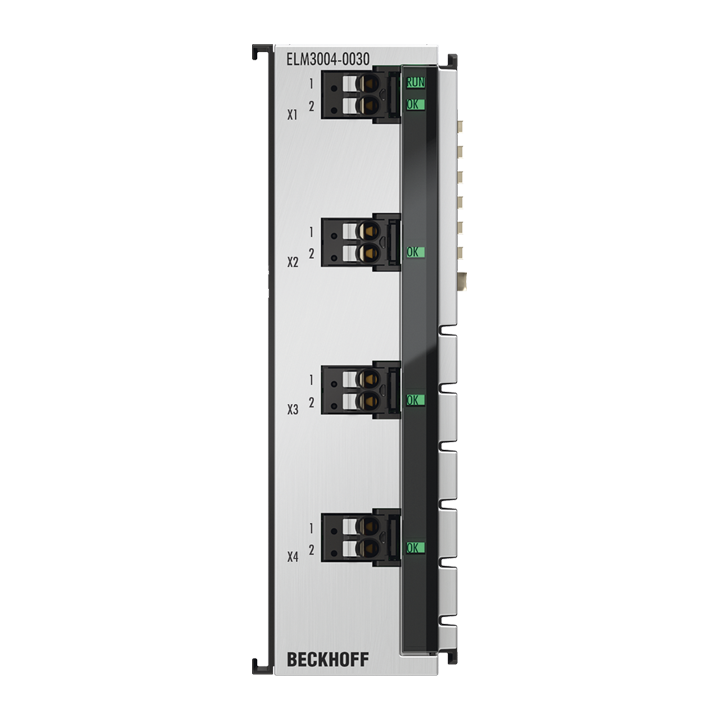

ELM3004-0030 | EtherCAT Terminal, 4-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 10 ksps, externally calibrated
0,00 ₽The ELM300x EtherCAT Terminals are designed for flexible voltage measurement from 20В mV to 30В V in eleven measuring ranges. The measuring range is selected in the CoE, as are the other setting options such as the filter parameters. Irrespective of the signal configuration, all ELM modules have the same technological properties. The ELM300x modules for voltage measurement offer a maximum sampling rate of 10,000 or 20,000В samples per second. The 2-pin plug (push-in) can be removed for maintenance purposes without releasing the individual wires.
-

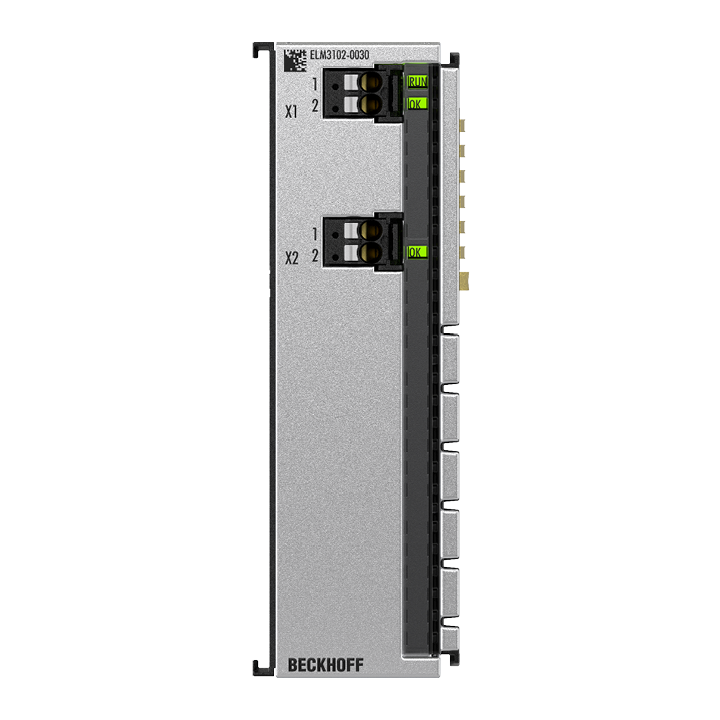

ELM3102-0030 | EtherCAT Terminal, 2-channel analog input, current, В±20 mA, 24 bit, 20В ksps, externally calibrated
0,00 ₽The ELM310x EtherCAT Terminals are designed for flexible current measurement ranging from -20 to +20 mA. They offer selectable measuring ranges from -20/0/4 to В±20 mA, as well as current measurement in accordance with NAMUR NE43.
-

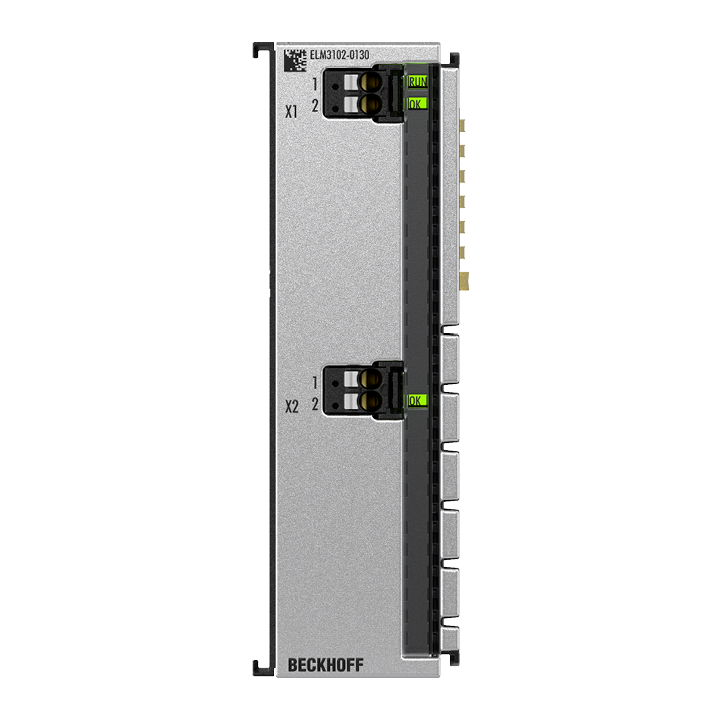

ELM3102-0130 | EtherCAT Terminal, 2-channel analog input, multi-function, В±60В V, В±20В mA, 24В bit, 20В ksps, electrically isolated, externally calibrated
0,00 ₽Терминал ELM3102-0130 EtherCAT базовой серии представляет собой урезанную версию ELM3702-0101, предназначенную для измерения напряжения и тока. Он обеспечивает диапазоны измерения от +60 В до -20 мВ и ±20 мА при высокой частоте дискретизации 20 kSps на канал. Электрическая изоляция между каналами позволяет обнаруживать сигналы с разными или флуктуирующими потенциалами с высокой точностью в сложных условиях.
-

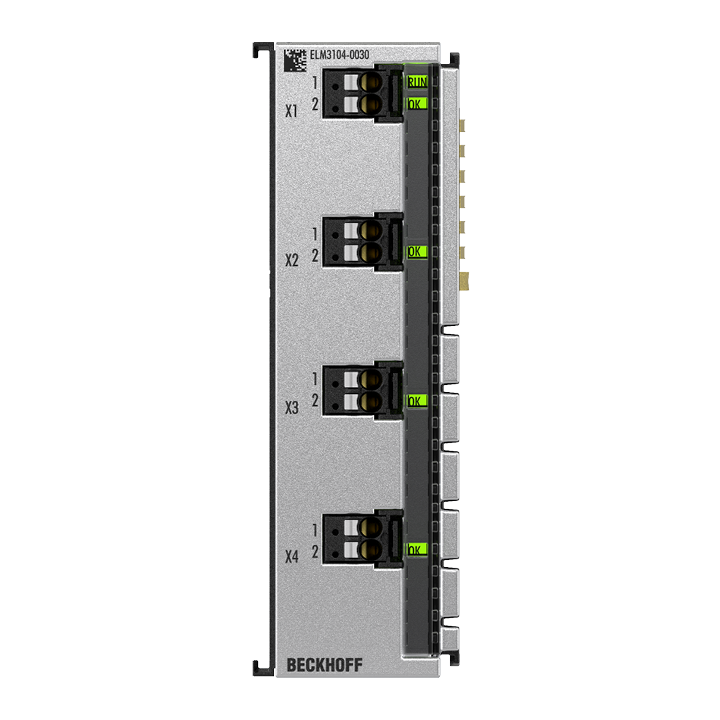

ELM3104-0030 | EtherCAT Terminal, 4-channel analog input, current, В±20 mA, 24В bit, 10В ksps, externally calibrated
0,00 ₽Терминалы ELM310x EtherCAT предназначены для гибкого измерения тока в диапазоне от -20 до +20 мА. Они предлагают выбираемые диапазоны измерения от -20/0/4 до ±20 мА, а также измерение тока в соответствии с NAMUR NE43.
-

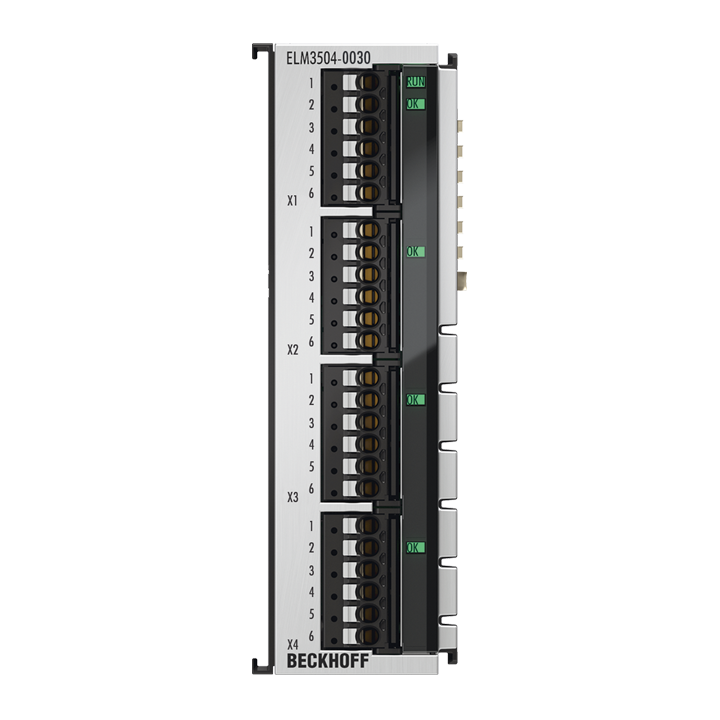

ELM3504-0030 | EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarterВ bridge, 24В bit, 10В ksps, externally calibrated
0,00 ₽The ELM350x EtherCAT Terminals are designed for the evaluation of measuring bridges in full-bridge, half-bridge and quarter-bridge configuration. The terminals feature internally switchable supplementary resistors. The feed is integrated. Like all other parameters, the supply voltage is adjustable in the CoE. Irrespective of the signal configuration, all ELM modules have the same technological properties. The ELM350x modules for the evaluation of measuring bridges offer a maximum sampling rate of 10,000 or 20,000В samples per second. The 6-pin plug (push-in) can be removed for maintenance purposes without releasing the individual wires.
