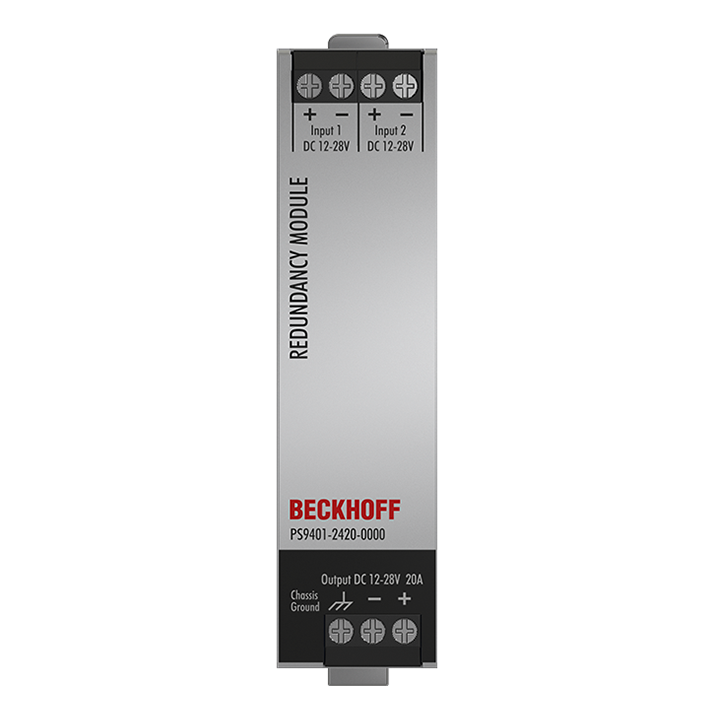

PS9401-2420-0000 | MOSFET redundancy module PS9400, input: 12…28 V DC, 2 x 10 A, output: 12…28 V DC, 1 x 20 A
01.01.2025

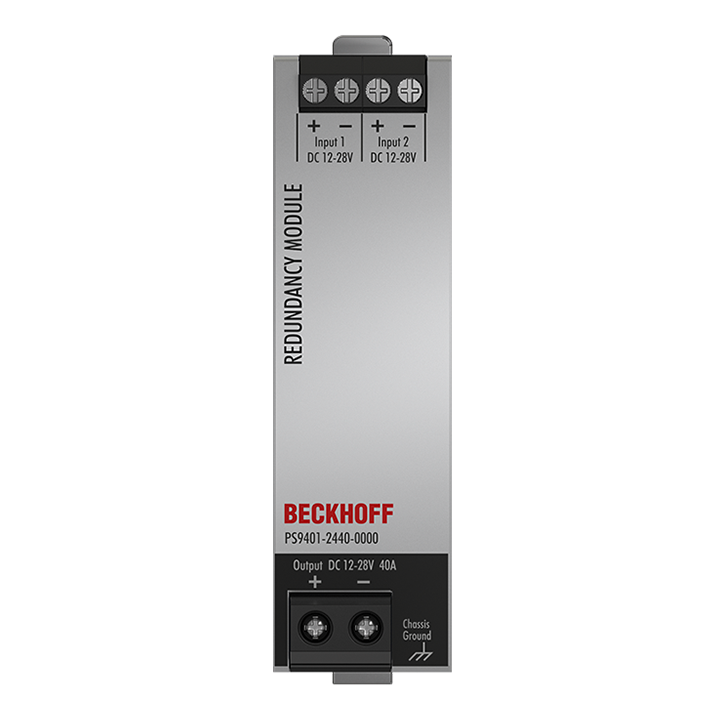

PS9401-2440-0000 | MOSFET redundancy module PS9400, input: 12…28 V DC, 2 x 20 A, output: 12…28 V DC, 1 x 40 A
01.01.2025
MSD1514-333
General specification Core Material: Ferrite Weight: 9.0 – 11.8 g Packaging: 175/13 reel, Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 14.3 mm pocket depth Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.
900,00 ₽
Specifications
Electrical specifications at 25C.
For Flyback Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,20%) | DCR (Ω) 3 | Isolation Voltage (V) | Leakage Inductance (nH) 5 | Turns Ratio | |
|---|---|---|---|---|---|---|
| typ | max | |||||
| MSD1514-333ME_ | 33 | 0.045 | 0.052 | 500 | 450 | 1 : 1 |
For SEPIC Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,20%) | DCR (Ω) 3 | SRF typ (MHz) 4 | Coupling coefficient | Leakage Inductance (nH) 5 | Isat (A) 6 | Irms (A) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| typ | max | 10% drop | 20% drop | 30% drop | both windings 7 | one winding 8 | |||||
| MSD1514-333ME_ | 33 | 0.045 | 0.052 | 7.2 | >,0.99 | 450 | 7.4 | 8.2 | 9.0 | 3.0 | 3.9 |
