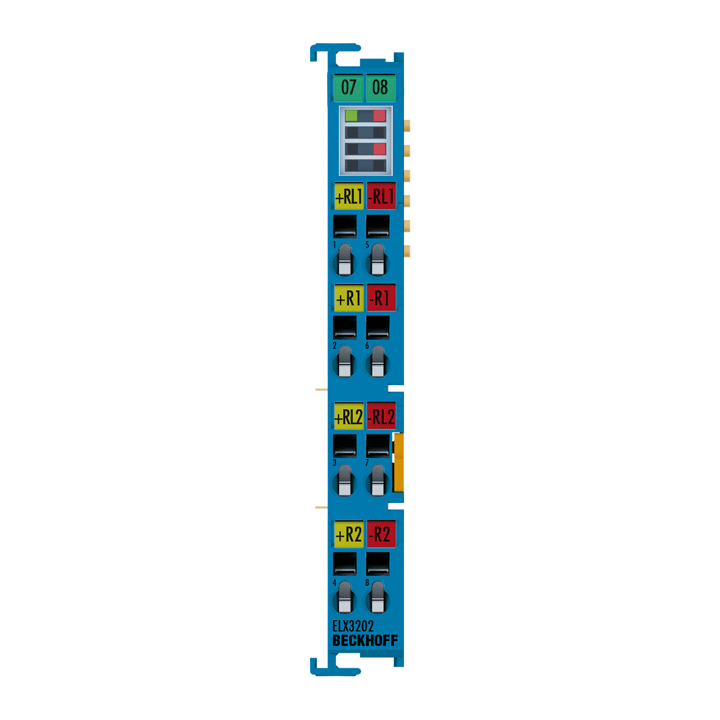

ELX3202 | EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16В bit, ExВ i
0,00 ₽The ELX3202 analog input terminal allows the direct connection of RTDs located in hazardous areas classified zone 0/20 or 1/21. The circuitry of the ELX3202 can operate sensors with 2-, 3- and 4-wire technology. Linearization is carried out over the entire freely selectable temperature range. By default the terminal is set to Pt100 sensors with 3-wire technology. The ELX3202 terminal indicates signal state and sensor malfunctions (e.g. wire breakage) by means of LEDs.
-

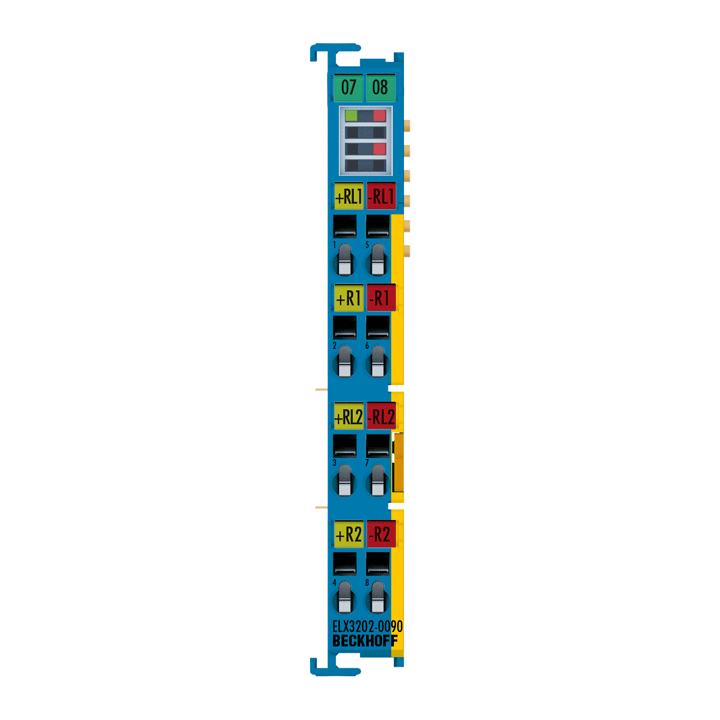

ELX3202-0090 | EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16В bit, ExВ i, TwinSAFEВ SC
0,00 ₽The ELX3202-0090 analog input terminal allows the direct connection of RTDs located in hazardous areas classified zone 0/20 or 1/21. The circuitry of the ELX3202-0090 can operate sensors with 2-, 3- and 4-wire technology. Linearization is carried out over the entire freely selectable temperature range. By default the terminal is set to Pt100 sensors with 3-wire technology. The ELX3202-0090 terminal indicates signal state and sensor malfunctions (e.g. wire breakage) by means of LEDs.
-

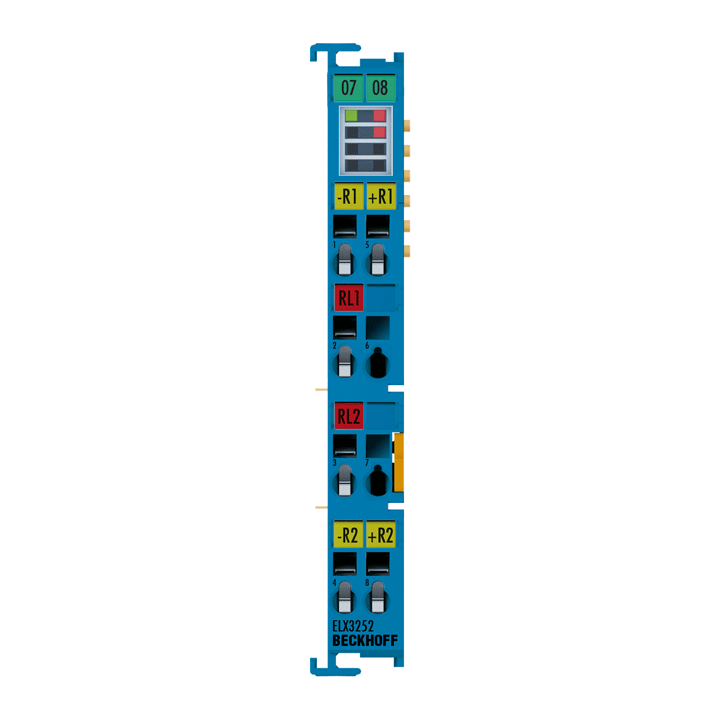

ELX3252 | EtherCAT Terminal, 2-channel analog input, potentiometer, 300 Ω…40 kΩ, 16 bit, Ex i
0,00 ₽The ELX3252 EtherCAT Terminal enables potentiometers located in hazardous areas classified zone 0/20 or 1/21 to be connected directly. A stabilized power supply via power contacts of the ELX9560 power supply terminal and the ratiometric measurement of the input voltage offer the preconditions for precise measurement. Potentiometers from 300В О© to 40В kО© can be connected to the inputs and the maximum resistance value of the used potentiometer can be stored in the terminal.
-

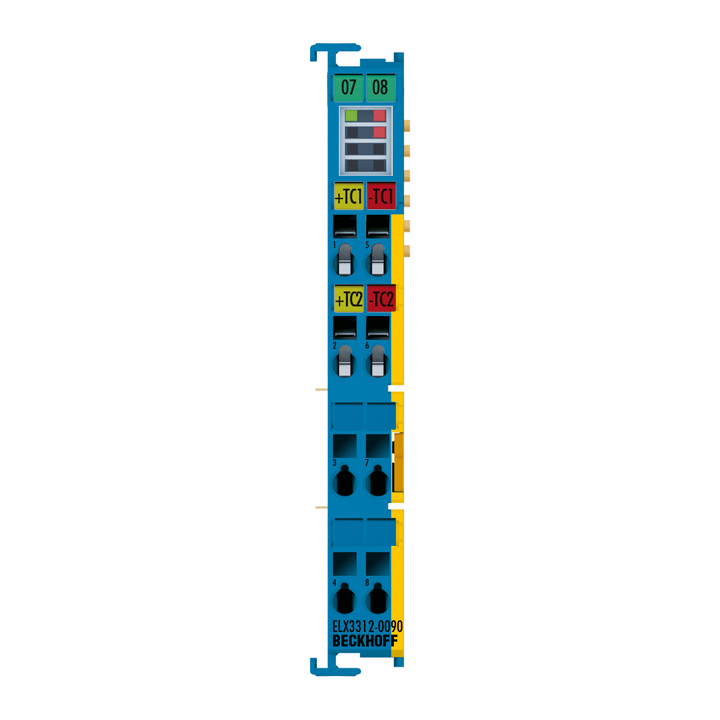

ELX3312-0090 | EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16В bit, ExВ i, TwinSAFEВ SC
0,00 ₽The ELX3312 analog input terminals allows the direct connection of thermocouples located in hazardous areas classified zone 0/20 or 1/21. The circuitry of the ELX3312 can operate sensors with 2-wire technology. Linearization is possible over the entire freely selectable temperature range. The error LEDs indicate a broken wire. Compensation for the cold junction is achieved through internal temperature measurement. Millivolt measurement is also possible with ELX3312.
-
ELX3314 | EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16В bit, ExВ i
0,00 ₽Аналоговые входные клеммы ELX3314 позволяют напрямую подключать термопары, расположенные в опасных зонах, классифицированных как зона 0/20 или 1/21. Схемы ELX3314 могут работать с датчиками с 2-проводной технологией. Линеаризация возможна во всем свободно выбираемом диапазоне температур. Светодиоды ошибок указывают на обрыв провода. Компенсация холодного спая достигается за счет внутреннего измерения температуры. Измерение милливольт также возможно с ELX3314.
-

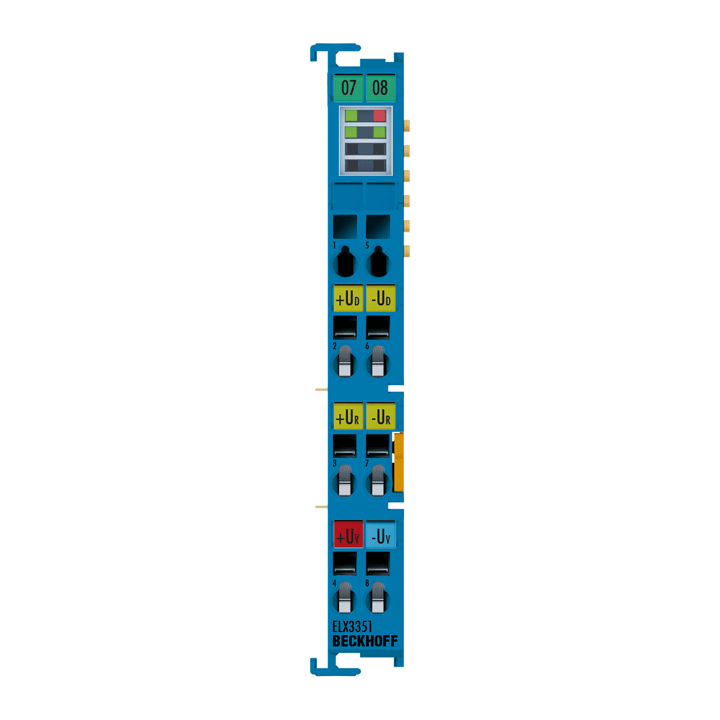

ELX3351 | EtherCAT Terminal, 1-channel analog input, measuring bridge, fullВ bridge, 24В bit, ExВ i
0,00 ₽The analog ELX3351 input terminal enables direct connection of a resistor bridge or load cell from hazardous areas, zone 0/20 and 1/21. The terminal can be connected in 4- or 6-wire technology. The ratio between the bridge voltage UD and the supply voltage UREF is determined in 24-bit resolution, and the load value is calculated as a process value. Apart from automatic self-calibration (can be deactivated), additional functions such as Tare and Freeze as well as dynamic filters are integrated. The ELX3351 is therefore functionally comparable to the EL3356.
-

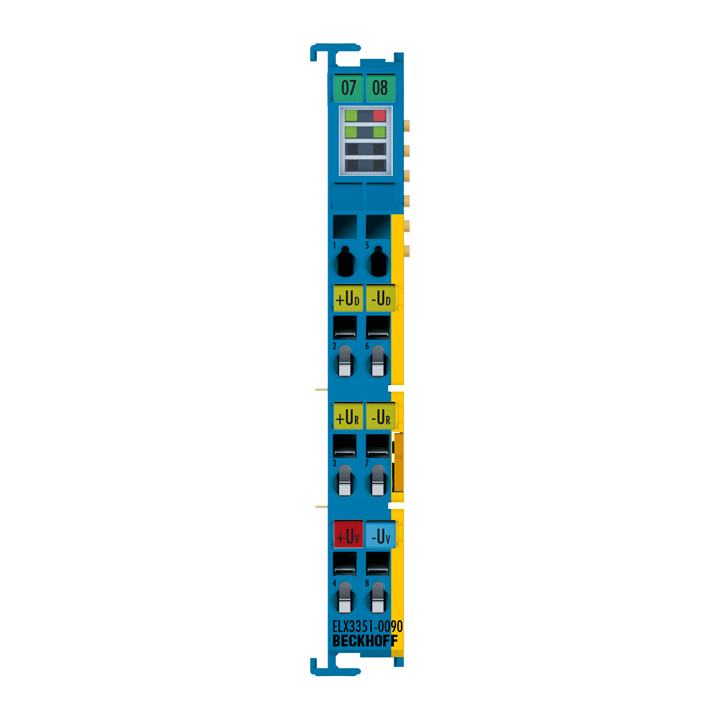

ELX3351-0090 | EtherCAT Terminal, 1-channel analog input, measuring bridge, fullВ bridge, 24В bit, ExВ i, TwinSAFEВ SC
0,00 ₽The analog ELX3351-0090 input terminal enables direct connection of a resistor bridge or load cell from hazardous areas, zone 0/20 and 1/21. The terminal can be connected in 4- or 6-wire technology. The ratio between the bridge voltage UD and the supply voltage UR is determined in 16-bit resolution, and the load value is calculated as a process value. Apart from automatic self-calibration (can be deactivated), additional functions such as Tare and Freeze as well as dynamic filters are integrated.
-
ELX3351-0090 | Терминал EtherCAT, 1-канальный аналоговый вход, измерительный мост, полный мост, 24 бит, ExI, TwinSAFESC
0,00 ₽Аналоговый входной терминал ELX3351-0090 позволяет напрямую подключать резистивный мост или тензодатчик из опасных зон, зон 0/20 и 1/21. Терминал может быть подключен по 4- или 6-проводной технологии. Соотношение между напряжением моста UD и напряжением питания UR определяется с разрешением 16 бит, а значение нагрузки рассчитывается как значение процесса. Помимо автоматической самокалибровки (может быть отключена), интегрированы дополнительные функции, такие как тарирование и заморозка, а также динамические фильтры.
-

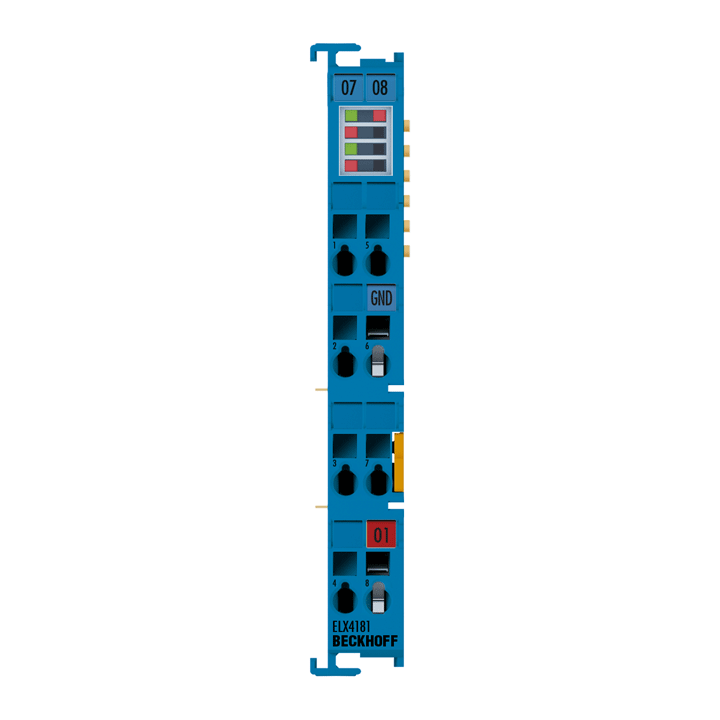

ELX4181 | Терминал EtherCAT, 1-канальный аналоговый выход, ток, 0/4–20 мА, 16 бит, несимметричный, HART, Ex i
0,00 ₽Аналоговый выходной терминал EtherCAT ELX4181 позволяет напрямую подключать искробезопасные полевые устройства с поддержкой HART, расположенные в опасных зонах, классифицированных как зона 0/20 или 1/21. Например, ELX4181 можно использовать для управления искробезопасными контроллерами для регулирующих клапанов. Светодиоды состояния и ошибок предоставляют информацию о состоянии связи HART и указывают на любые ошибки связи.
-

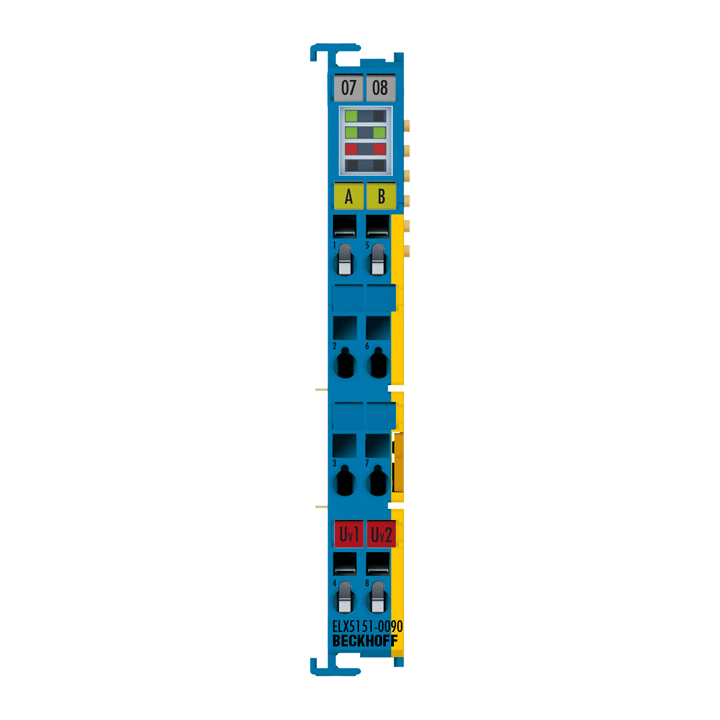

ELX5151-0090 | Терминал EtherCAT, 1-канальный интерфейс кодера, инкрементальный, NAMUR, ExВ i, TwinSAFEВ SC
0,00 ₽The ELX5151-0090 EtherCAT Terminal allows the direct connection of an intrinsically safe incremental encoder from zone 0/20 and 1/21 hazardous areas. The terminal supplies the encoder with 8.2В VВ DC and evaluates a diagnostic-capable NAMUR signal according to IEC 60947-5-6. In this way, a wire breakage or short circuit can be detected in addition to the switching state. The ELX5151-0090 can also be used as an up/down counter and allows switching between 16- and 32-bit counting.
-

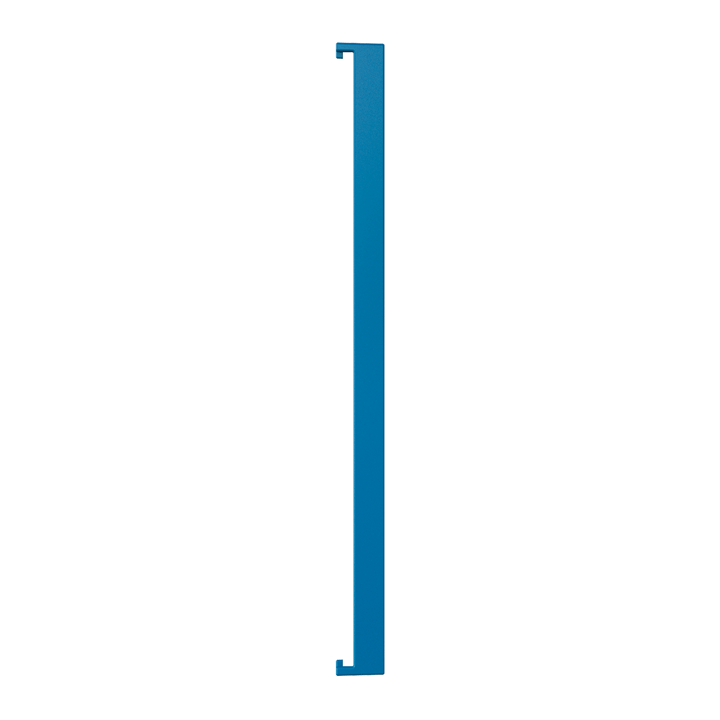

ELX9012 | Bus end cover for ELX, blue
0,00 ₽ELX9012 используется для терминирования сегмента терминала ELX и охватывает контакты питания в соответствии с IECВ 60079-11, в дополнение к контактам E-bus. Он соответствует по цвету серии терминалов ELX.
-
ELX9012 | Крышка конца шины для ELX, синяя
0,00 ₽ELX9012 используется для терминирования сегмента терминала ELX и охватывает контакты питания в соответствии с IECВ 60079-11, в дополнение к контактам E-bus. Он соответствует по цвету серии терминалов ELX.
-

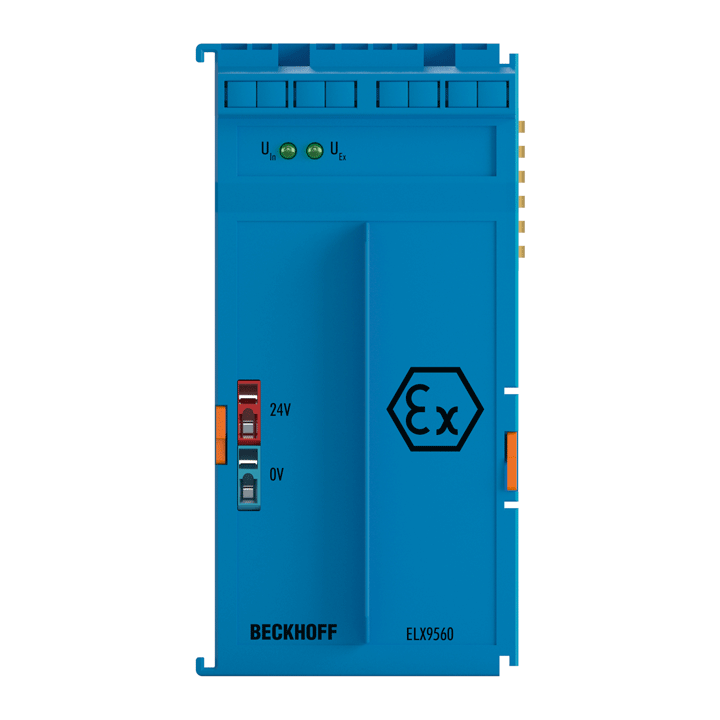

ELX9560 | Power supply terminal, 24В VВ DC, electrically isolated
0,00 ₽The ELX9560 power supply terminal generates an electrically isolated output voltage of 24В VВ EX from an 24В VВ DC input voltage for supplying downstream ELX terminals. The connected ELX terminals are supplied via the power contacts. The applied voltage and the voltage output at the power contacts are continuously monitored. The operating state of the terminal is indicated by the LEDs and can be read out for diagnostics purposes within the process image of the higher-level control system.
-
EM2042 | EtherCAT Terminal, 16-channel digital output, 24В VВ DC, 0.5В A, D-sub
0,00 ₽The EM2042 EtherCAT module combines 16 digital outputs in a compact D-sub connector and is therefore ideally suited for valve terminals with multi-pin plug connection. The binary control signals are transferred (electrically isolated) to the actuators at the process level. The EM2042 is integrated into the I/O system like standard EtherCAT Terminals. The X2 connector for the power supply is included in the scope of supply.
-
EM3702 | EtherCAT Terminal, 2-channel analog input, relative pressure, 0…7500В hPa (0…+7.5В bar)
0,00 ₽The EM3702 analog input terminal measures the pressure value as a difference to the environment (relative pressure measurement) in a measuring range up to 7.5В bar. The pressure value is directly available to the controller as a 16-bit value, and errors such as out-of-range values are also displayed. The compact design and simple connection system support space-saving and quick installation with no need for additional measuring devices.
-

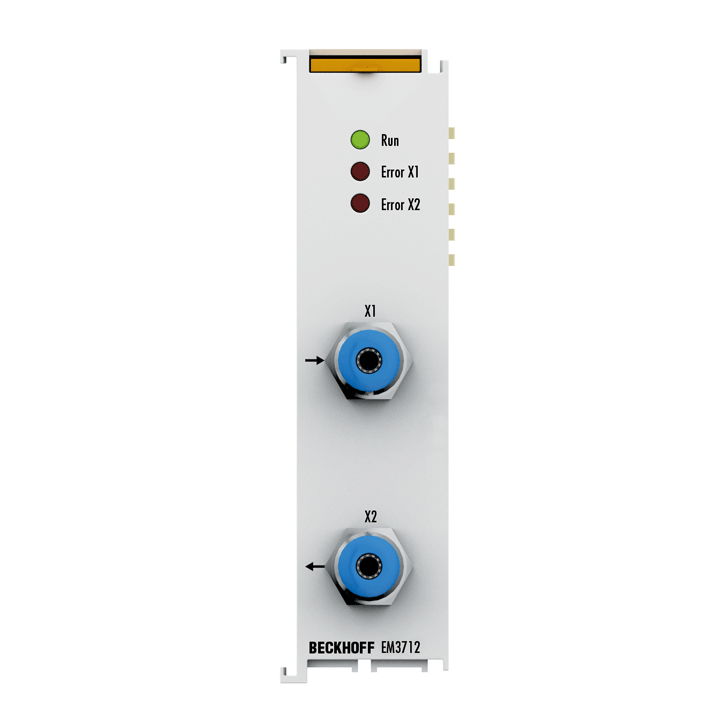

EM3712 | EtherCAT Terminal, 2-channel analog input, relative pressure, ±1000 hPa (-1…+1 bar)
0,00 ₽The EM3712 analog input terminal measures the pressure value as a difference to the environment (relative pressure measurement), in the measuring range of В±1В bar. This means that negative pressure values are also permissible as a difference to the environment. The pressure value is directly available to the controller as a 16-bit value, and errors such as out-of-range values are also displayed. The compact design and simple connection system support space-saving and quick installation with no need for additional measuring devices.
-

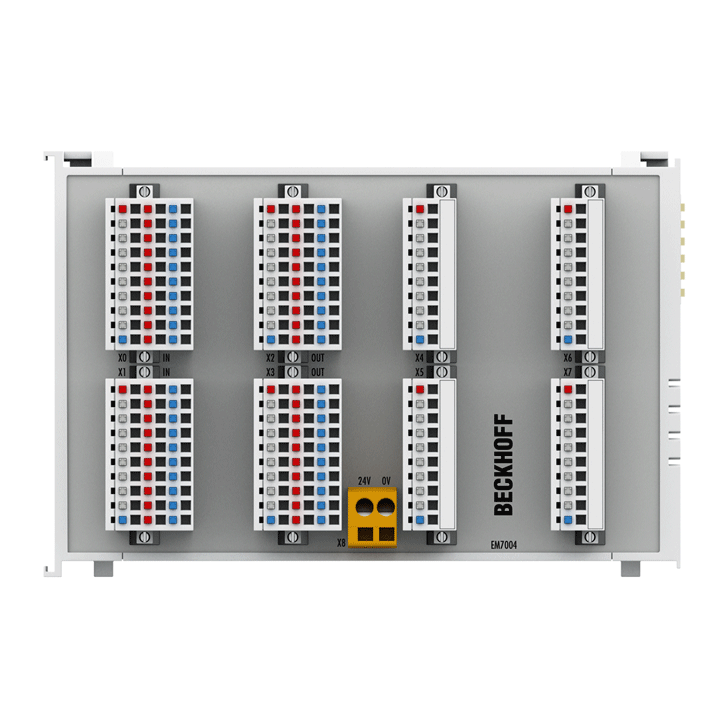

EM7004 | EtherCAT Terminal module, 4-channel motion interface, axis/servo drive, 24В VВ DC
0,00 ₽Интерфейс модуля EtherCAT EM7004 оптимизирован для прямого подключения четырех сервоприводов. Компактный модуль оснащен четырьмя встроенными инкрементальными энкодерами, 16 В цифровых входов и выходов 24 В постоянного тока и четырьмя аналоговыми выходами ±10 В. Для быстрой предварительной обработки цифровые выходы могут быть подключены напрямую через четыре энкодера (PLS). Эта функция параметризуется. Все входы и выходы работают с питанием 24 В. Штекерные разъемы X4, X5, X6 и X7 имеют вход энкодера и аналоговый выход. Разъемы гальванически изолированы друг от друга и от напряжения питания. Разъемы X0 и X1 с 16 В цифровыми входами, а также разъемы X2 и X3 с 16 В цифровыми выходами обеспечивают 3-проводное подключение. Разъем X8 входит в комплект поставки.
