EJ1100 | EtherCAT plug-in module, EtherCAT Coupler, RJ45
0,00 ₽The EJ1100 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the EtherCAT plug-in modules. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation. A module station consists of a coupler and any number of EtherCAT plug-in modules, which are automatically detected and individually displayed in the process image.
-
EJ1122 | EtherCAT plug-in module, 2-port junction, EtherCAT
0,00 ₽The EJ1122 2-port EtherCAT junction can be positioned in an EtherCAT module segment anywhere between the EtherCAT plug-in modules and enables configuration of EtherCAT star topologies. A modular EtherCAT star hub can be realized by using several EJ1122 on one signal distribution board.
-
EJ11xx | EtherCAT Coupler
0,00 ₽ -
EJ1859 | Подключаемый модуль EtherCAT, 8-канальный цифровой вход + 8-канальный цифровой выход, 24 В В постоянного тока, 3 В мс, 0,5 В А
0,00 ₽Подключаемый модуль EJ1859 EtherCAT объединяет восемь цифровых входов и восемь цифровых выходов в одном корпусе. Состояние сигнала каналов отображается светодиодами.
-

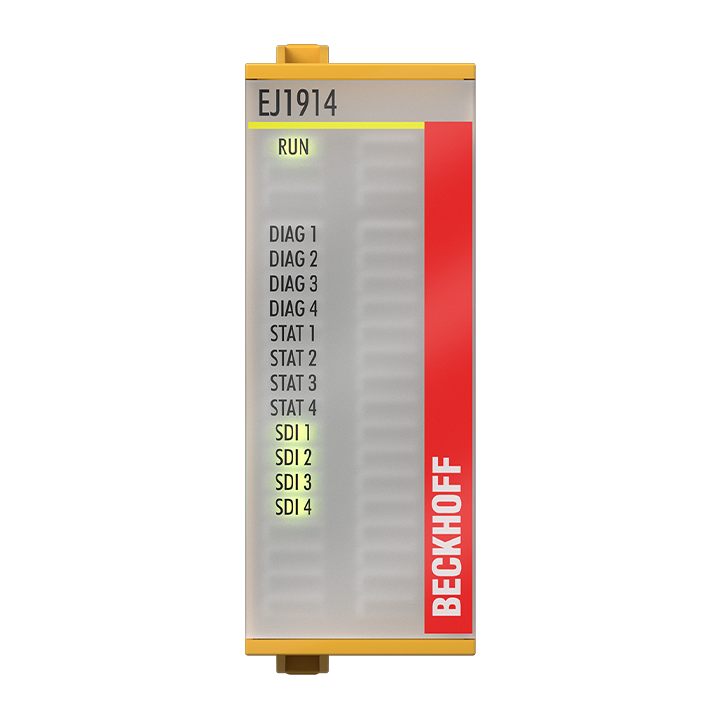

EJ1914 | EtherCAT plug-in module, 4-channel digital input, 24В VВ DC, TwinSAFE, TwinSAFE Logic
0,00 ₽The EJ1914 EtherCAT plug-in module is a TwinSAFE component with inputs for sensors with potential-free contacts for 24В VВ DC. The module has four fail-safe inputs, which are transmitted via FSoE to a TwinSAFE Logic-capable component.
-
EJ1914 | EtherCAT plug-in module, 4-channel digital input, 24В VВ DC, TwinSAFE, TwinSAFE Logic
0,00 ₽Подключаемый модуль EJ1914 EtherCAT представляет собой компонент TwinSAFE с входами для датчиков с беспотенциальными контактами для 24 В В DC. Модуль имеет четыре отказоустойчивых входа, которые передаются через FSoE на компонент TwinSAFE Logic-capable.
-

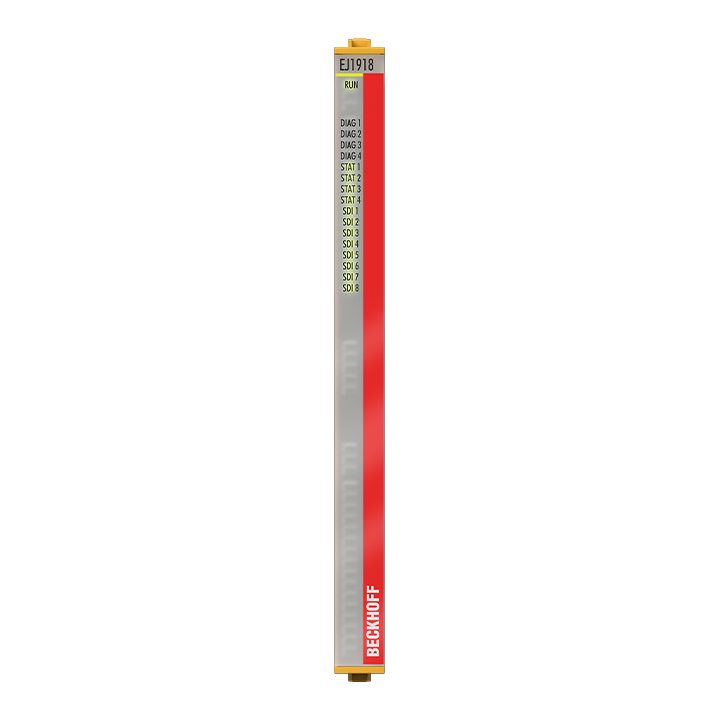

EJ1918 | EtherCAT plug-in module, 8-channel digital input, 24В VВ DC, TwinSAFE, TwinSAFE Logic
0,00 ₽The EJ1918 EtherCAT plug-in module is a TwinSAFE component with inputs for sensors with potential-free contacts for 24В VВ DC. The module has eight fail-safe inputs, which are transmitted via FSoE to a TwinSAFE Logic-capable component.
-
EJ1957 | EtherCAT plug-in module, 8-channel digital input + 4-channel digital output, 24В VВ DC, 0.5В A, TwinSAFE, TwinSAFE Logic
0,00 ₽The EJ1957 EtherCAT plug-in module is a TwinSAFE component with inputs and outputs. The module has eight fail-safe inputs and four fail-safe outputs, which are controlled or processed via FSoE by a TwinSAFE Logic-capable component.
-
EJ2502 | EtherCAT plug-in module, 2-channel PWM output, 24В VВ DC, 0.5В A
0,00 ₽The EJ2502 EtherCAT plug-in module modulates the pulse width of a binary signal and outputs it electrically isolated from the E-bus. The mark/space ratio is preset by a 16-bit value from the automation device. The output stage is protected against overload and short circuit. The module has two channels, whose signal states are indicated by LEDs.
-

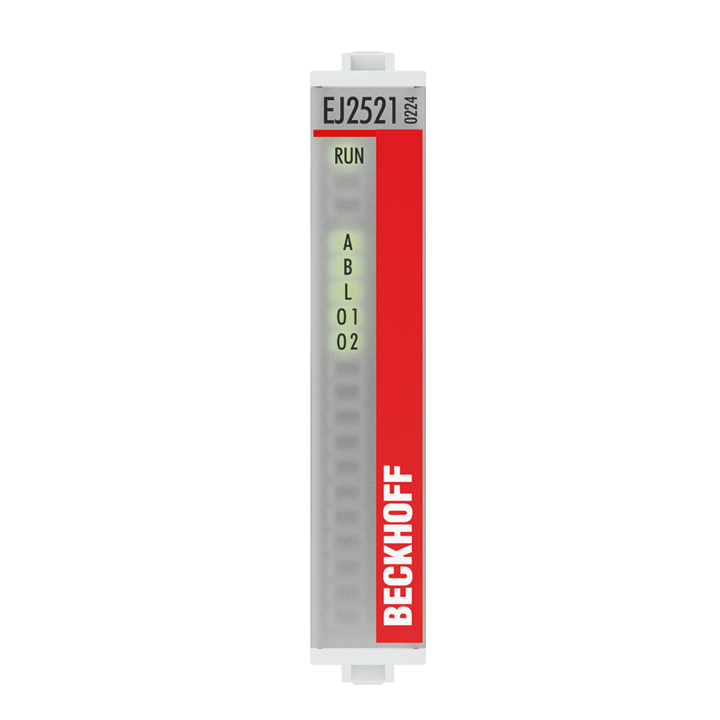

EJ2521-0224 | EtherCAT plug-in module, 1-channel pulse train output, 24В VВ DC, 1В A, with capture/compare input/output
0,00 ₽The EJ2521-0224 EtherCAT plug-in module ist a 1-channel pulse train and outputs a digital frequency signal via two 24В V tracks (A/B). The signal is used to control motor drivers and signal receivers which are controlled by single cycles. The pulse sequence and the pulse frequency or number of pulses are specified directly via the process data. The module has a 24В V latch input for connecting a limit switch, for example, and two 24В V switch outputs (capture/compare), which can be switched depending on the counter value in the module. The LEDs indicate the active outputs and the input.
-

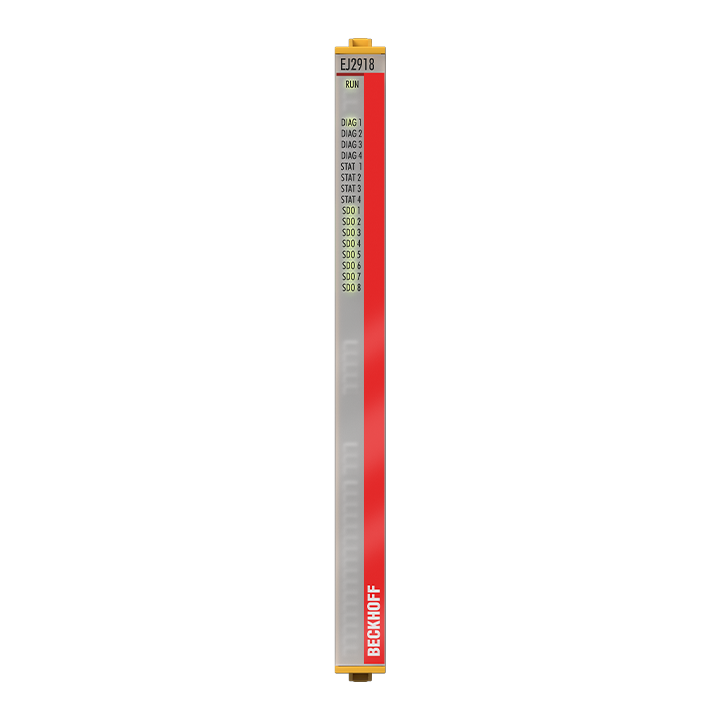

EJ2918 | EtherCAT plug-in module, 8-channel digital output, 24В VВ DC, 0.5В A, TwinSAFE, TwinSAFE Logic
0,00 ₽Подключаемый модуль EJ2918 EtherCAT представляет собой компонент TwinSAFE с выходами для приводов с 24 В В DC. Модуль имеет восемь отказоустойчивых выходов, которые управляются через FSoE компонентом TwinSAFE Logic-capable.
-
EJ3048 | EtherCAT plug-in module, 8-channel analog input, current, 0…20 mA, 12 bit, single-ended
0,00 ₽The EJ3048 EtherCAT plug-in module processes signals in the range between 0 and 20В mA. The current is digitized to a resolution of 12В bit, and is transmitted, electrically isolated, to the higher-level automation device. The module combines eight channels in one housing. The signal state is indicated by light emitting diodes.
-
EJ3108 | EtherCAT plug-in module, 8-channel analog input, voltage, В±10В V, 16В bit
0,00 ₽The EJ3108 EtherCAT plug-in module processes signals in the range between -10 and +10В V. The voltage is digitized to a resolution of 16В bits, and is transmitted, electrically isolated, to the higher-level automation device. Of the eight input channels, six are designed as differential and two as single-ended inputs. The signal state is indicated by light emitting diodes.
-

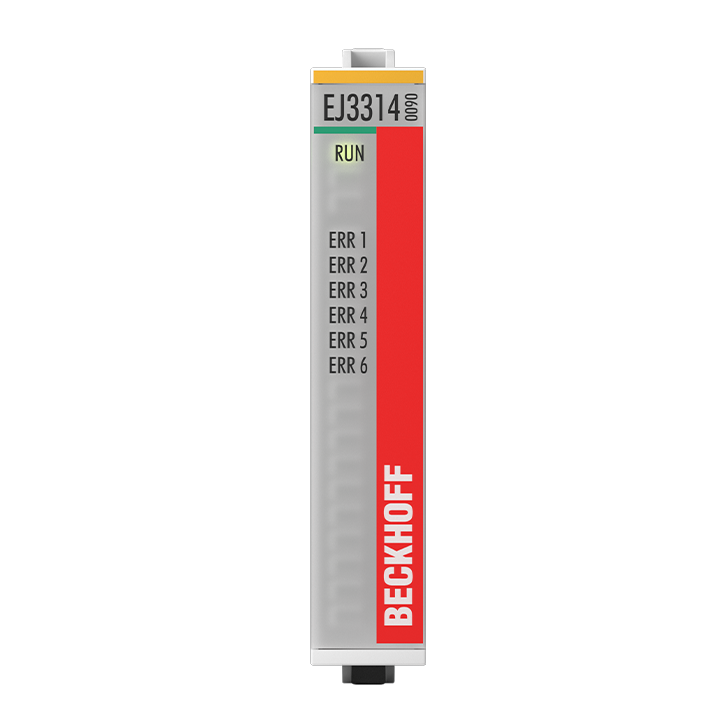

EJ3314-0090 | EtherCAT plug-in module, 4-channel analog input, temperature, thermocouple, 16В bit, TwinSAFE SC
0,00 ₽The EJ3314-0090 EtherCAT plug-in module allows four thermocouples to be connected directly. The module circuit can operate thermocouple sensors using the 2-wire technique. A microprocessor handles linearization across the whole temperature range, which is freely selectable. Compensation for the cold junction is made through an internal temperature measurement at the module. The EJ3314-0090 can also be used for mV measurement.
-
EJ3318 | EtherCAT plug-in module, 8-channel analog input, temperature, thermocouple, 16В bit
0,00 ₽The EJ3318 EtherCAT plug-in module allows the direct connection of eight thermocouples and is therefore particularly well suited to compact applications on the signal distribution board. The module’s circuit can operate thermocouple sensors using the 2-wire technique. A microprocessor handles linearization across the whole temperature range, which is freely selectable. The error LEDs indicate a broken wire. The compensation for the cold junction is done by two RTDs (Pt1000), which can be placed anywhere on the signal distribution board. The EJ3318 can also be used for mV measurements.
-

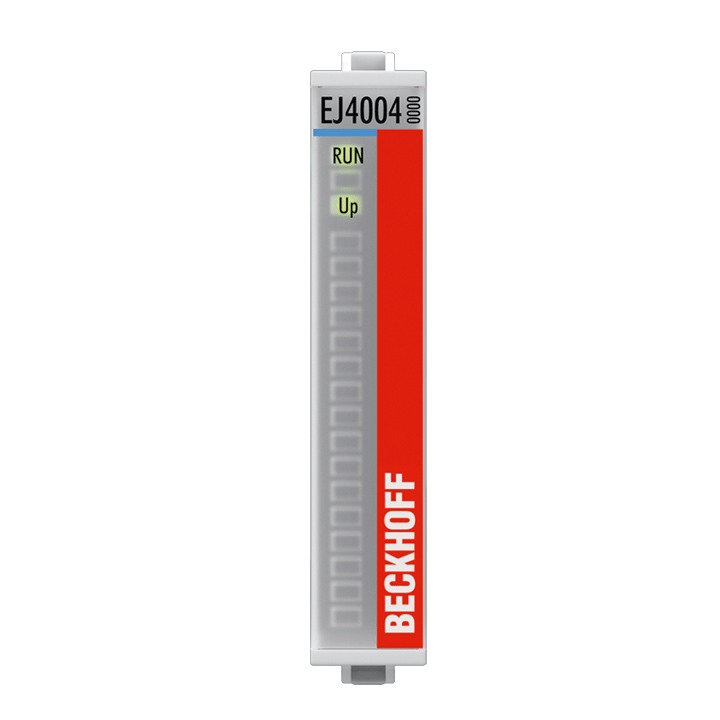

EJ4004 | EtherCAT plug-in module, 4-channel analog output, voltage, 0…10 V, 12 bit
0,00 ₽The EJ4004 EtherCAT plug-in module generate signals in the range between 0В and 10В V. The voltage is supplied to the process level with a resolution of 12В bit and is electrically isolated. The output channels have a common ground potential. The module combines four channels in one housing. The output stages are powered by the 24В V supply. The signal state is indicated by light emitting diodes.
-
EJ4008 | Подключаемый модуль EtherCAT, 8-канальный аналоговый выход, напряжение, 0–10 В В, 12 В бит
0,00 ₽Подключаемый модуль EJ4008EtherCAT генерирует сигналы в диапазоне от 0В до 10В. Напряжение подается на уровень процесса с разрешением 12В бит и электрически изолировано. Выходные каналы имеют общий потенциал земли. Модуль объединяет восемь каналов в одном корпусе. Выходные каскады питаются от источника 24В В. Состояние сигнала индицируется светодиодами.
-
EJ4132 | EtherCAT plug-in module, 2-channel analog output, voltage, В±10В V, 16В bit
0,00 ₽The EJ4132 EtherCAT plug-in module generates signals in the range from -10…+10 V. The voltage is supplied to the process level with a resolution of 16 bit, and is electrically isolated. The output channels have a common ground potential.
-
EJ5021 | EtherCAT plug-in module, 1-channel encoder interface, SinCos, 1В VPP
0,00 ₽The EJ5021 EtherCAT plug-in module is used for the direct connection of a measuring probe or encoder with sinusoidal, differential voltage output 1В VPP. Input frequencies of max. 250В kHz can be evaluated. The current counter reading can be zeroed (reset) or stored separately via the C track of the encoder, which is also called reference mark. The 5В V supply to the encoder is provided directly via the signal distribution board (UP). The EJ5021 features amplitude and frequency error detection of the input signals.
-

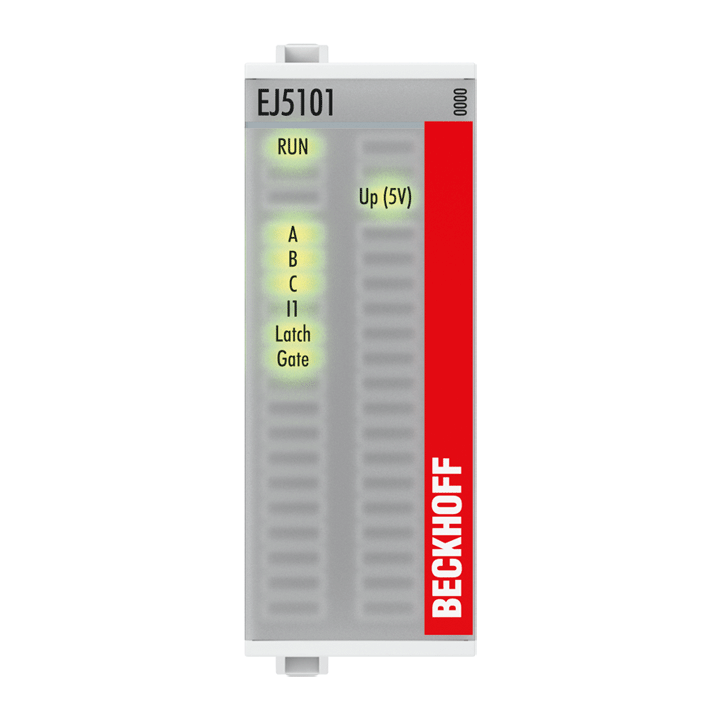

EJ5101 | EtherCAT plug-in module, 1-channel encoder interface, incremental, 5В VВ DC (DIFFВ RS422,В TTL), 1В MHz
0,00 ₽The EJ5101 EtherCAT plug-in module is an interface for the direct connection of incremental encoders with differential signals (RS422) or TTL single ended signals via the signal distribution board. Two additional 24В V digital inputs are available for storing, blocking and setting the counter status. The error message output of an encoder can be connected and evaluated via the status input of the module. The encoder can be supplied with 5В VВ DC directly from the EtherCAT plug-in module.
-

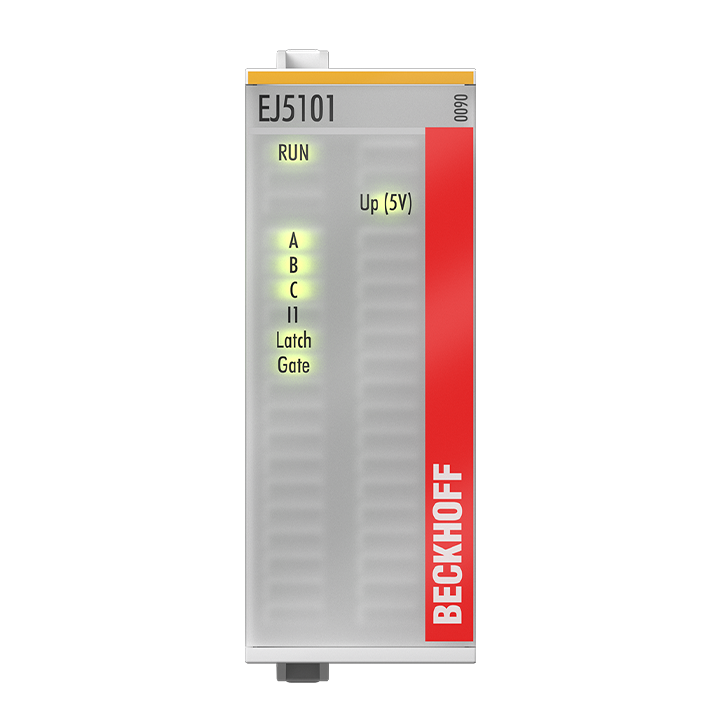

EJ5101-0090 | EtherCAT plug-in module, 1-channel encoder interface, incremental, 5В VВ DC (DIFFВ RS422,В TTL), 1В MHz, TwinSAFE SC
0,00 ₽The EJ5101-0090 EtherCAT plug-in module is an interface for the direct connection of incremental encoders with differential signals (RS422) or TTL single ended signals via the signal distribution board. Two additional 24В V digital inputs are available for storing, blocking and setting the counter status. The error message output of an encoder can be connected and evaluated via the status input of the module. The encoder can be supplied with 5В VВ DC directly from the EtherCAT plug-in module.
-
EJ5101-0090 | EtherCAT plug-in module, 1-channel encoder interface, incremental, 5В VВ DC (DIFFВ RS422,В TTL), 1В MHz, TwinSAFE SC
0,00 ₽The EJ5101-0090 EtherCAT plug-in module is an interface for the direct connection of incremental encoders with differential signals (RS422) or TTL single ended signals via the signal distribution board. Two additional 24В V digital inputs are available for storing, blocking and setting the counter status. The error message output of an encoder can be connected and evaluated via the status input of the module. The encoder can be supplied with 5В VВ DC directly from the EtherCAT plug-in module.
-
EJ6002 | Подключаемый модуль EtherCAT, 2-канальный интерфейс связи, последовательный, RS232/RS422/RS485
0,00 ₽The EJ6002 EtherCAT plug-in module enables the connection of devices with two RS232, RS485 or RS422 interfaces. Apart from the convenient selection of the communication standard (RS232, RS485 or RS422) using the TwinCAT software, various operation modes can be set for the termination of connection cables. The devices connected to the module communicate with the automation device via the coupler. The active communication channel operates independently of the higher-level EtherCAT system in full duplex mode with 300В baud up to 256В kbaud. The serial interfaces guarantee high immunity to interference through electrically isolated signals. In conjunction with the TwinCAT Virtual Serial COM Driver, the EJ6002 can be used as a normal Windows COM interface.
-
EJ6080 | EtherCAT plug-in module, 1-channel communication interface, memory, 128В kbyte, NOVRAM
0,00 ₽The EJ6080 EtherCAT plug-in module has 128 kB of non-volatile memory (NOVRAM). The module can be used to store and read out parameters and recipes. Part of the memory can also be used for the cyclic storage of machine data such as operating hour meters or production numbers. The module is used, for example, in modular machine concepts with central control for storing machine-specific parameter data.
-
EJ6224 | EtherCAT plug-in module, 4-channel communication interface, IO-Link, master
0,00 ₽The EJ6224 EtherCAT plug-in module is an IO-Link master and enables the connection of up to four IO-Link devices. IO-Link devices can be actuators, sensors or a combination of both. A point-to-point connection is used between the module and the device.
-
EJ6910 | EtherCAT plug-in module, communication interface, TwinSAFE, TwinSAFE Logic
0,00 ₽With the EJ6910, the functionality of the EL6910 as the new generation of dedicated safety controllers is also available as an EtherCAT plug-in module. The EJ6910 offers a variety of certified function blocks to enable the safe processing of Boolean values and analog values and thus to realize even more complex safety applications.
-
EJ7031 | EtherCAT plug-in module, 1-channel motion interface, stepper motor, 24В VВ DC, 1.5В A
0,00 ₽The EJ7031 EtherCAT plug-in module is designed for the direct connection of stepper motors in the low power range up to 1.5В A. The compact stepper motor output stage is accommodated in the module together with two digital inputs for limit switches. Through parameterization, the EJ7031 can be adapted to the motor to be operated and the application requirements. Particularly smooth and precise motor operation is ensured by 64-fold microstepping.
-
EJ7037 | EtherCAT plug-in module, 1-channel motion interface, stepper motor, 24В VВ DC, 1.5В A, with incremental encoder
0,00 ₽The EJ7037 EtherCAT plug-in module is designed for the direct connection of stepper motors in the medium power range up to 1.5В A. The compact stepper motor output stage is accommodated in the module together with two digital inputs for limit switches.
-

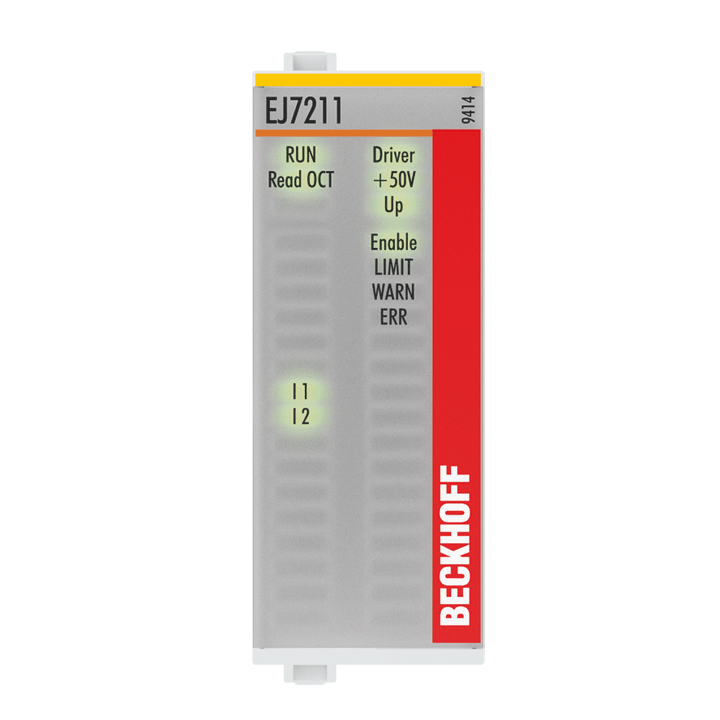

EJ7211-9414 | EtherCAT plug-in module, 1-channel motion interface, servomotor, 48В VВ DC, 4.5В A, OCT, suitable for STO applications, TwinSAFEВ SC
0,00 ₽The EJ7211-9414 EtherCAT plug-in module with OCT, STO and TwinSAFEВ SC offers high servo performance in a very compact design for the AM8100 motor series up to 4.5 A (Irms). One-cable technology (OCT) combines motor cable and feedback cable for an absolute feedback system in a single cable. The integrated electronic identification plate of the AM8100 motors is read by the module for automatic configuration of the motor parameters. This reduces wiring expenditure and commissioning to a minimum.
-
EJ7211-9414 | Подключаемый модуль EtherCAT, 1-канальный интерфейс движения, серводвигатель, 48 В постоянного тока, 4,5 В А, OCT, подходит для приложений STO, TwinSAFE SC
0,00 ₽Подключаемый модуль EJ7211-9414 EtherCAT с OCT, STO и TwinSAFEВ SC обеспечивает высокую производительность сервопривода в очень компактном исполнении для серии двигателей AM8100 до 4,5 А (Irms). Технология одного кабеля (OCT) объединяет кабель двигателя и кабель обратной связи для создания системы абсолютной обратной связи в одном кабеле. Интегрированная электронная идентификационная табличка двигателей AM8100 считывается модулем для автоматической настройки параметров двигателя. Это сводит к минимуму расходы на проводку и ввод в эксплуатацию.
-

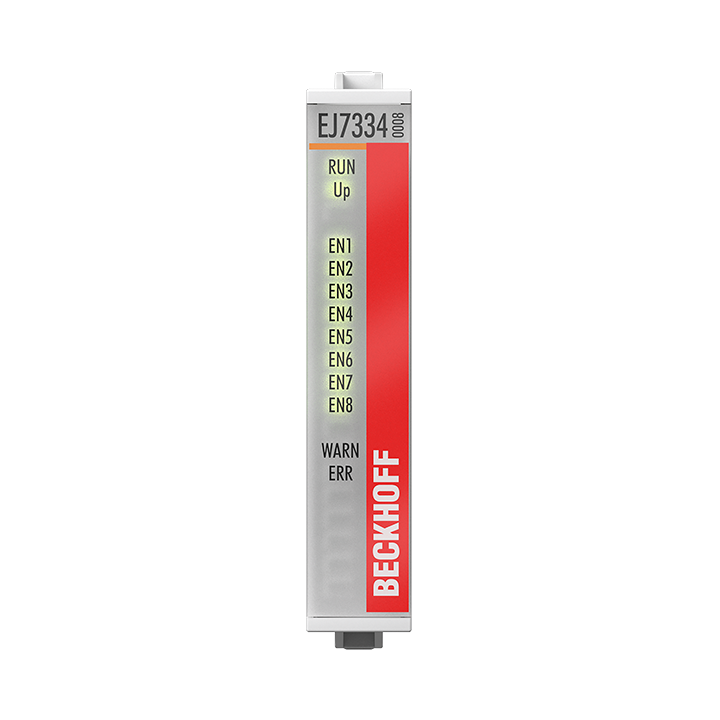

EJ7334-0008 | EtherCAT plug-in module, 4-channel motion interface, DC motor, 24В VВ DC, 3В A
0,00 ₽The EJ7334-0008 EtherCAT plug-in module enables direct operation of four DC motors and is electrically isolated from the E-bus. The speed is preset by a 16 bit value from the automation unit. The output stage is overload-proof. If direction reversal is not required, up to eight motors can be operated unidirectionally on the EJ7334-0008.
-

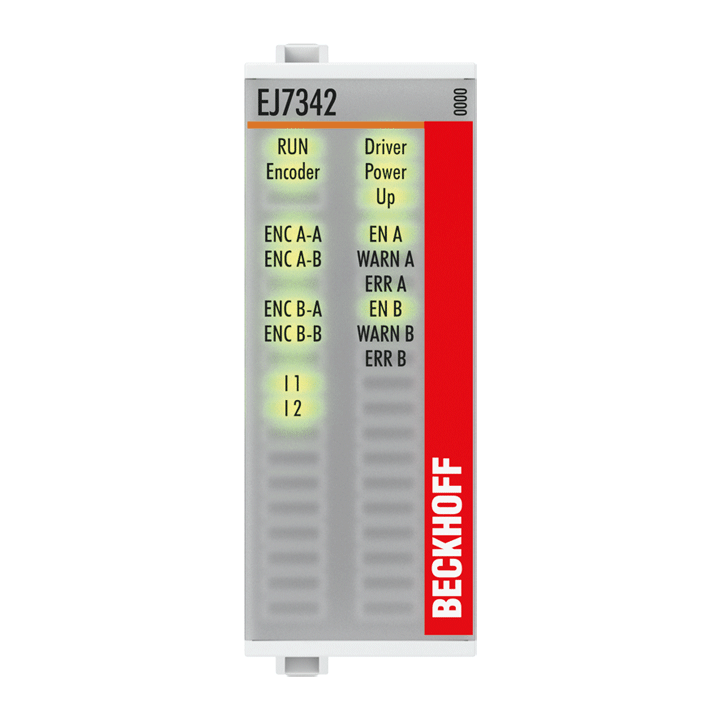

EJ7342 | EtherCAT plug-in module, 2-channel motion interface, DC motor, 48В VВ DC, 3.5В A, with incremental encoder
0,00 ₽The EJ7342 EtherCAT plug-in module enables direct operation of two DC motors. It is galvanically isolated from the E-bus. The speed or position is specified by the automation device via a 16В bit value. Connection of an incremental encoder enables a simple servo axis to be realized. The output stage is protected against overload and short circuit, the common thermal overload warning applies to both output stages together. The EJ7342 has two channels that indicate their signal state via light emitting diodes. The LEDs enable quick local diagnostics.
-

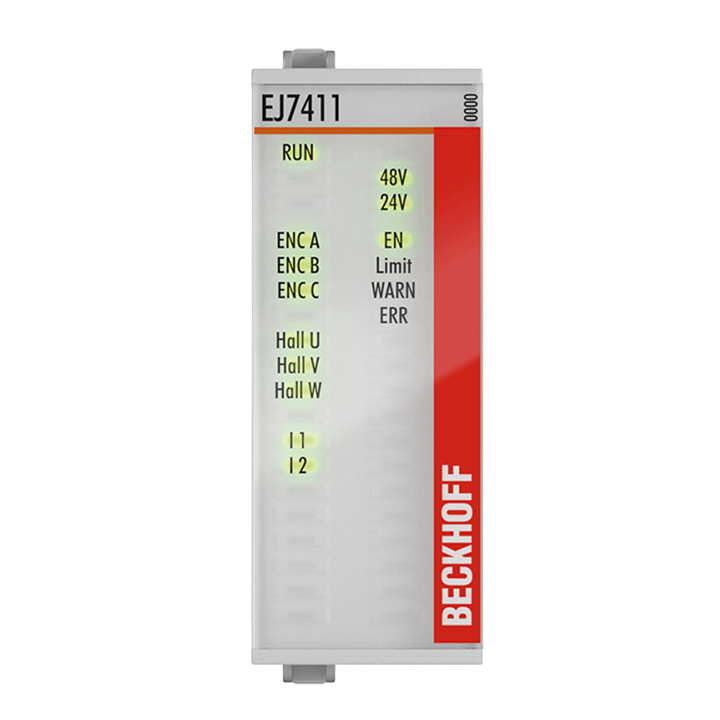

EJ7411 | EtherCAT plug-in module, 1-channel motion interface, BLDC motor, 48В VВ DC, 4.5В A, with incremental encoder
0,00 ₽The EJ7411 EtherCAT plug-in module provides high control performance in a very compact design for the medium output range of BLDC motors. Due to the fast control technology and the connection of an incremental encoder, both very high speed profiles and dynamic positioning tasks can be implemented. Maximum operational reliability is provided through the monitoring of numerous parameters, such as overvoltage, undervoltage, overcurrent, module temperature or motor load via the calculation of an IВІT model.
-

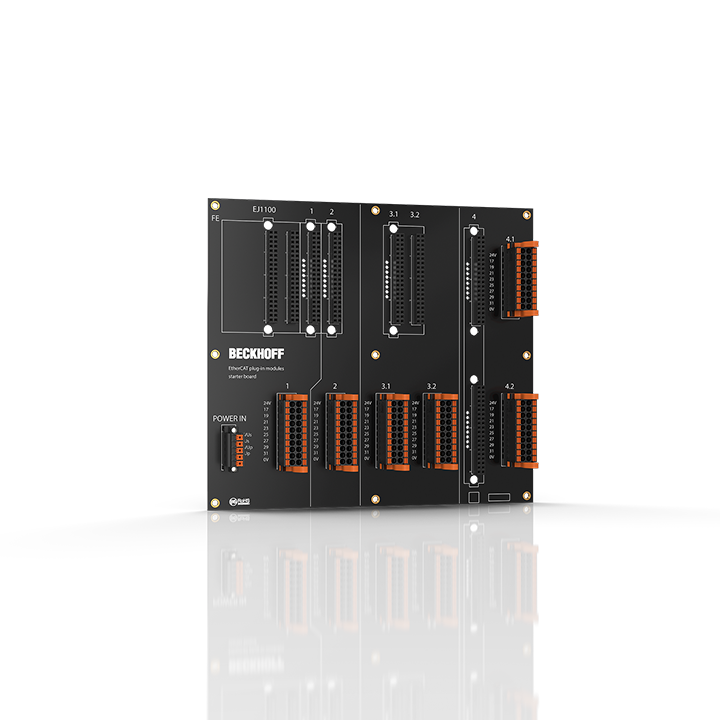

EJ8906-0005 | EJ starter board
0,00 ₽The EJ Starter Board offers an easy entry into the system world of EtherCAT plug-in modules. Without previous investments in the development of individual Signal Distribution Boards the EJ Starter Board enables the validation and easy testing of the EtherCAT plug-in modules.
-

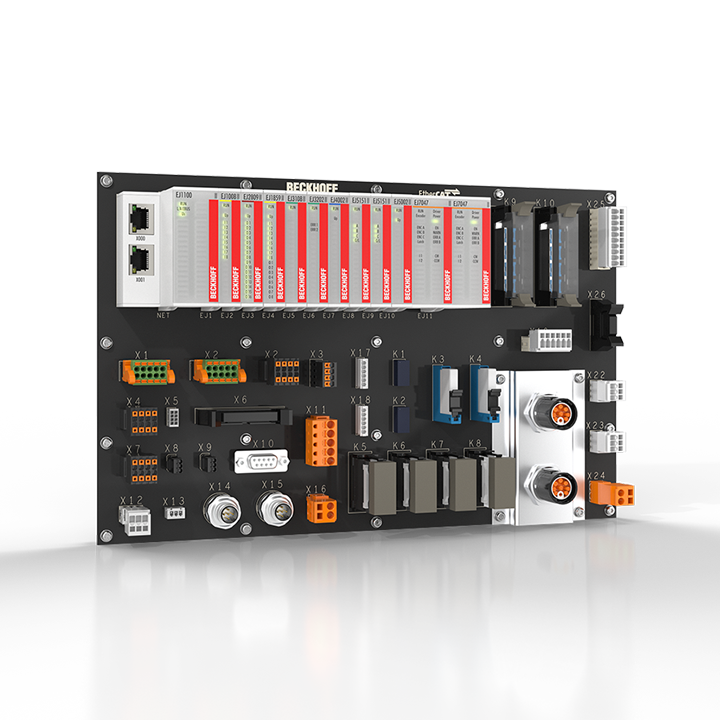

EJ8xxx | Signal distribution board development
0,00 ₽Beckhoff offers development of signal distribution boards as an engineering service. Alternatively, customers can use a design guide to develop the signal distribution board themselves, something that allows them to harness their own development capabilities and reinforce their expertise.
-
EJ9001 | EtherCAT plug-in module, placeholder
0,00 ₽The EJ9001 EtherCAT plug-in module is used as a placeholder and can be plugged into unused slots on the signal distribution board. The slots reserved in such a way can be equipped with functional modules when the range of functions is extended.
-
EJ9400 | EtherCAT plug-in module, power supply for E-bus, 24В VВ DC, 2.5В A
0,00 ₽The EJ9400 EtherCAT plug-in module is used in combination with the EJ1101-0022 EtherCAT Coupler to supply the E-bus with power. Data is exchanged between the coupler and the module over the E-bus. Each EtherCAT plug-in module draws a certain amount of current from the E-bus (see “Current consumption E-bus” in the technical data). This current is fed into the E-bus by the power supply plug-in module. The maximum output current is 2.5 A.
-

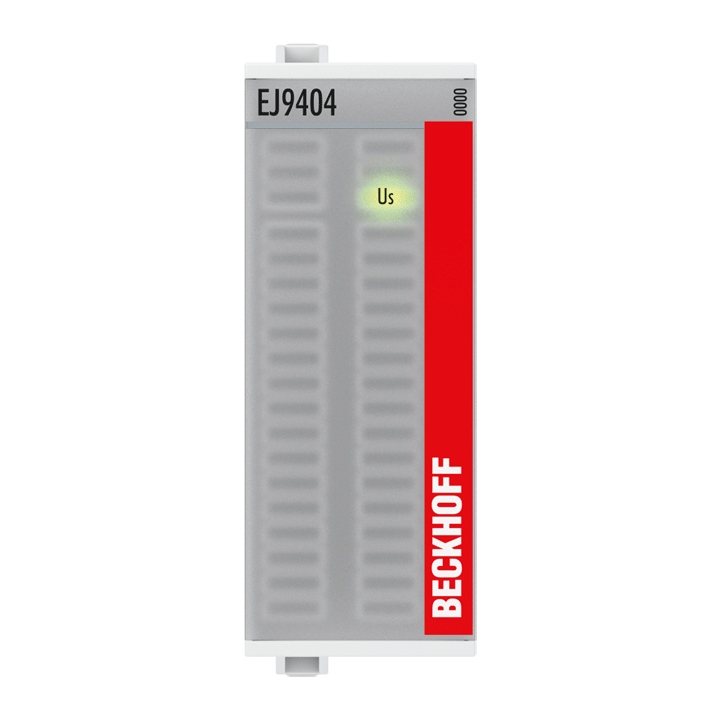

EJ9404 | EtherCAT plug-in module, power supply for E-bus, 24В VВ DC, 12В A
0,00 ₽The EJ9404 EtherCAT plug-in module is used in combination with the EJ1101-0022 EtherCAT Coupler to supply the E-bus with power. Data is exchanged between the coupler and the module over the E-bus. Each EtherCAT plug-in module draws a certain amount of current from the E-bus (see “Current consumption E-bus” in the technical data). This current is fed into the E-bus by the power supply plug-in module. The maximum output current is 12 A.
-

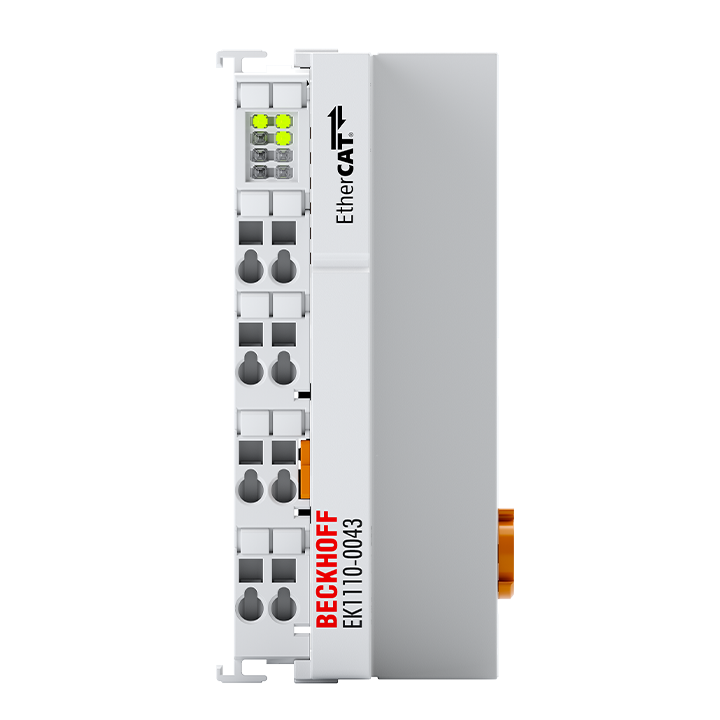

EK1110-0043 | EtherCAT EJ coupler, CX and EL terminal connection
0,00 ₽The EK1110-0043 EtherCAT EJ Coupler connects the compact Embedded PCs from the CX series and the attached EtherCAT Terminals with the EtherCAT plug-in modules on an application-specific circuit board (signal distribution board).
-

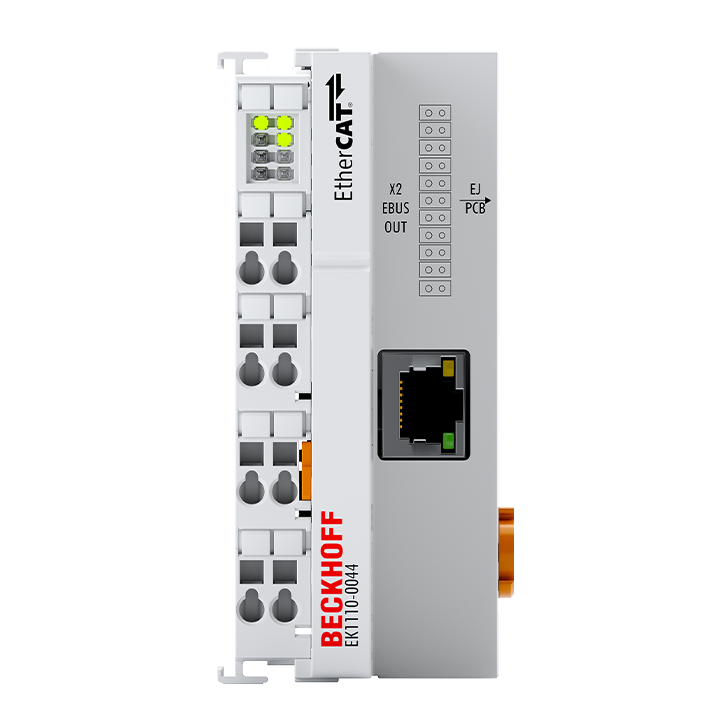

EK1110-0044 | EtherCAT EJ coupler, CX and EL terminal connection, EtherCAT junction
0,00 ₽The EK1110-0044 EtherCAT EJ Coupler connects the compact Embedded PCs from the CX series and the attached EtherCAT Terminals with the EtherCAT plug-in modules on an application-specific circuit board (signal distribution board).
