ZB1313-CL

General specification Core Material: Ferrite Weight: 2.7 – 3.0 g Packaging: 400 per 13 reel Plastic tape: 32 mm wide, 0.4 mm thick, 20 mm pocket spacing, 7.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

1350,00 ₽

Артикул: ZB1313-CLD Категорий: No Opto, Power Transformers, Products, Transformers, ZB1313, ZB1313-CL

Описание

Specifications

Electrical specifications at 25C.

Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Inductance min at 5 A (H) 2	DCR max (Ω)		Leakage Inductance max (H) 3	Turns Ratio 4	Current (A)	Isolation Voltage (Vrms) 5
Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Inductance min at 5 A (H) 2	Pri	Sec	Leakage Inductance max (H) 3	Pri : Sec	Current (A)	Isolation Voltage (Vrms) 5
ZB1313-CLD	10.5	9.45	0.0611	0.0647	0.18	1 : 1.27	5.0	1500

Каталог

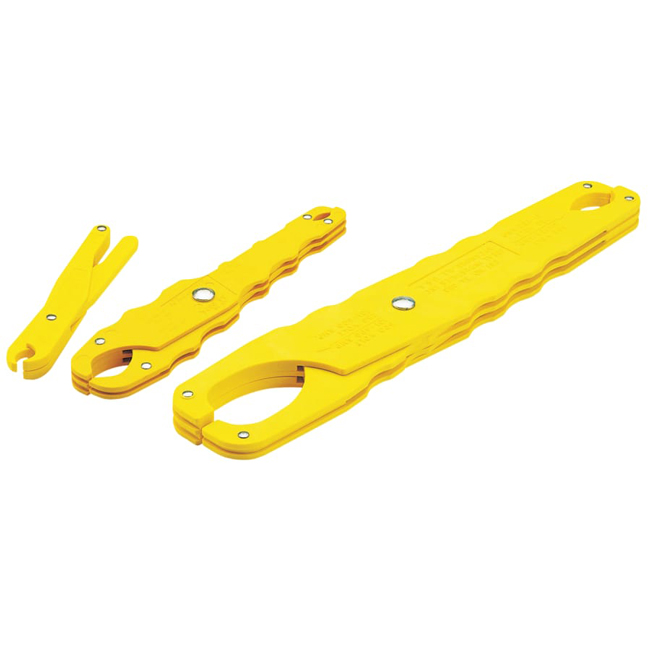

Ideal Industries Safe-T-Grip Fuse Puller
