XGL1313-472

General specification Core Material: Composite Weight: 13 – 16 g Packaging: 200/13 reel Plastic tape: 32 mm wide, 0.50 mm thick, 24 mm pocket spacing, 13.2 mm pocket depth. Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

1350,00 ₽

Артикул: XGL1313-472MED Категорий: Molded Inductor, Power, Products, Shielded Inductors, XGL, XGL1313, XGL1313-472

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 — 60 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XGL1313-472MED	4.7	2.5	2.8	16.0	16.0	25.0	35.0	26.7	36.7

Каталог

EP7041-1002 | EtherCAT Box, 1-channel motion interface, stepper motor, 48В VВ DC, 1.5В A, M12, with incremental encoder

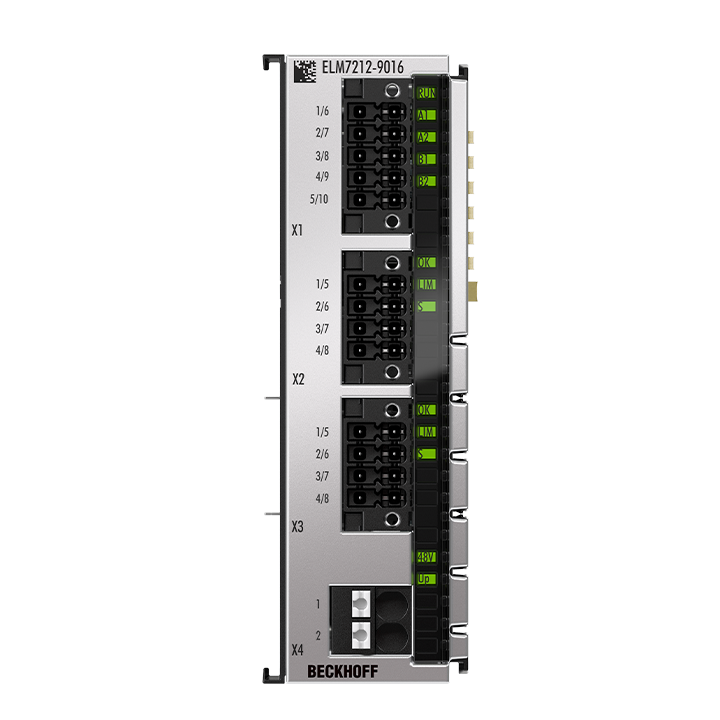

ELM7212-9016 | EtherCAT Terminal, 2-channel motion interface, servomotor, 48В VВ DC, 4.5В A, OCT, STO, TwinSAFE Logic
