XFL4020-471

General specification Core Material: Composite Weight: 162 – 169 mg Packaging: 1000/7 reel, 3500/13 reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 2.3 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: XFL4020-471MEC Категорий: Molded Inductor, Power, Products, Shielded Inductors, XFL, XFL4020, XFL4020-471

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 – 20 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XFL4020-471ME_	0.47	4.40	5.10	83	4.6	6.6	7.5	12.0	17.0

Каталог

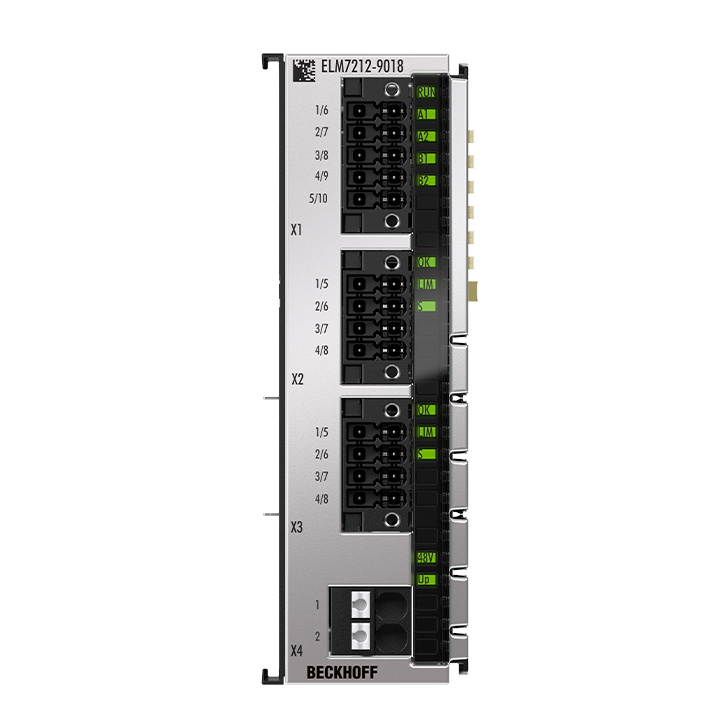

ELM7212-9018 | EtherCAT Terminal, 2-channel motion interface, servomotor, 48В VВ DC, 4.5В A, OCT, STO, Safe Motion, TwinSAFE Logic
