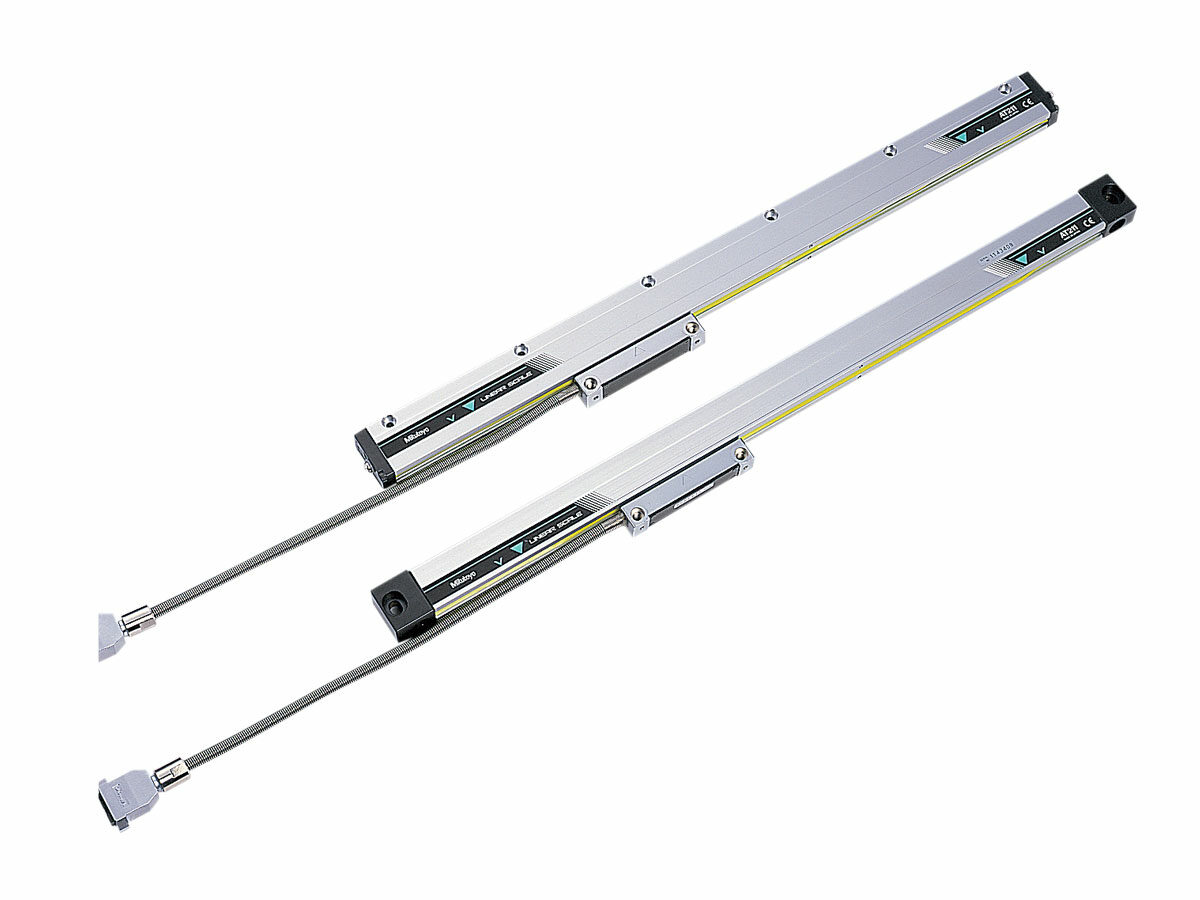

The Mitutoyo SDV-E Digimatic multi-function vertical linear scale facilitates mounting on jigs, tools and small machine tools to enable accurate positioning. A built-in ABSOLUTE scale is also included, using the Mitutoyo ABS point, which doesn”t require zero-set when powered on. In addition, overspeed errors have been eliminated which improves reliability.

  • ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements
  • Vertical display according to the scale mounting direction
  • Long battery life for easier maintenance
  • Equipped with an output port to transfer measurement data to implement in control and gaging systems
  • EC counters are available as external display units

Order No.: Product Image: Model: Units: Battery: Range: Resolution: Accuracy: Repeatability: L1: L2: t: G: H: Depth including the screw on the rear of the display: Mass:

Order No.:

572-560 – SDV-10E Metric SR44 (1 pc.) 938896 0-100mm – 0.03mm – 244mm 220mm – – – Less than 2mm 250g
572-561 – SDV-15E Metric SR44 (1 pc.) 938897 0-150mm – 0.03mm – 294mm 270mm – – – Less than 2mm 280g
572-562 – SDV-20E Metric SR44 (1 pc.) 938898 0-200mm – 0.03mm – 344mm 320mm – – – Less than 2mm 310g
572-563 – SDV-30E Metric SR44 (1 pc.) 938899 0-300mm – 0.04mm – 444mm 420mm – – – Less than 2mm 370g
572-564 – SDV-45E Metric SR44 (1 pc.) 938900 0-450mm – 0.04mm – 594mm 570mm 6mm 23.2mm 14.6mm Less than 3mm 760g
572-565 – SDV-60E Metric SR44 (1 pc.) 938901 0-600mm – 0.05mm – 774mm 750mm 6mm 23.2mm 14.6mm Less than 3mm 900g
572-566 – SDV-80E Metric SR44 (1 pc.) 938902 0-800mm – 0.06mm – 974mm 950mm 10mm 27.2mm 18.6mm Less than 3mm 1710g
572-567 – SDV-100E Metric SR44 (1 pc.) 938903 0-1000mm – 0.07mm – 1174mm 1150mm 10mm 27.2mm 18.6mm Less than 3mm 2040g
572-570 – SDV-4″E Inch/Metric SR44 (1 pc.) 938904 0-100mm / 0-4″ .0005″ 0.03mm / .001″ .0005″ 244mm 220mm – – – Less than 2mm 250g
572-571 – SDV-6″E Inch/Metric SR44 (1 pc.) 938905 0-150mm / 0-6″ .0005″ 0.03mm / .001″ .0005″ 294mm 270mm – – – Less than 2mm 280g
572-572 – SDV-8″E Inch/Metric SR44 (1 pc.) 938906 0-200mm / 0-8″ .0005″ 0.03mm / .001″ .0005″ 344mm 320mm – – – Less than 2mm 310g
572-573 – SDV-12″E Inch/Metric SR44 (1 pc.) 938907 0-300mm / 0-12″ .0005″ 0.04mm / .002″ .0005″ 444mm 420mm – – – Less than 2mm 370g
572-574 – SDV-18″E Inch/Metric SR44 (1 pc.) 938908 0-450mm / 0-18″ .0005″ 0.04mm / .002″ .0005″ 594mm 570mm 6mm 23.2mm 14.6mm Less than 3mm 760g
572-575 – SDV-24″E Inch/Metric SR44 (1 pc.) 938909 0-600mm / 0-24″ .0005″ 0.05mm / .002″ .0005″ 774mm 750mm 6mm 23.2mm 14.6mm Less than 3mm 900g
572-576 – SDV-32″E Inch/Metric SR44 (1 pc.) 938910 0-800mm / 0-32″ .0005″ 0.06mm / .0025″ .0005″ 974mm 950mm 10mm 27.2mm 18.6mm Less than 3mm 1710g
572-577 – SDV-40″E Inch/Metric SR44 (1 pc.) 938911 0-1000mm / 0-40″ .0005″ 0.07mm / .0025″ .0005″ 1174mm 1150mm 10mm 27.2mm 18.6mm Less than 3mm 2040g

572-560
572-561
572-562
572-563
572-564
572-565
572-566
572-567
572-570
572-571
572-572
572-573
572-574
572-575
572-576
572-577

Технические характеристики

Type: Vertical multi-function type
Display: LCD
Optional Accessories: 905338, 905409, 905689, 905690, 905691, 905692, 905693, 905694
SPC Output: Yes
Resolution: 0.01mm
Repeatability: 0.01mm
