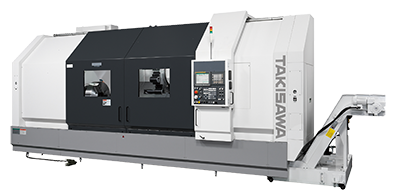

Серия Takisawa TMM

Серия TMM является новым поколением многофункциональных машин для интеграции процессов с фрезерованием и токарной обработкой, отличаясь высокой эффективностью.

Технические характеристики

Модели TMM:

• TMM-250M1

  Specification	Detail
  Type	6-side Milling and Turning
  Axis Configuration	8 Axis
  Simultaneous Axis Control	4-axis
  Maximum Swing	30.7″
  Maximum Turning Diameter	13.77″
  Maximum Turning Length	31.49″
  Bar Capacity Left	3″
  Bar Capacity Right	2″
  Chuck Size Left	10″
  Chuck Size Right	8″
  Spindle RPM Left	4000
  Spindle RPM Right	4000
  Spindle Horsepower Left	29.9 HP
  Spindle Horsepower Right	24.8 HP
  Control	Fanuc 180is-TB
  Number of Tools Upper	15
  Number of Tools Lower	15
  Live Tooling	Upper and Lower Turret
  Y-Axis Milling	Upper Turret
  Rotating Tool RPM	4000
  Rotating Tool HP	7.5
  Machining Spindle (module3 upper)
  Tool Changer Capacity	–
  Tool Shank	–
  Axes	–
  Spindle RPM	–
  Spindle Horsepower	–

• TMM-250M3

  Specification	Detail
  Type	6-side Milling and Turning
  Axis Configuration	9 Axis
  Simultaneous Axis Control	4-axis with FANUC 180is-TB 5-axis with FUNUC 160is-TB
  Maximum Swing	30.7″
  Maximum Turning Diameter	13.77″
  Maximum Turning Length	51.18″
  Bar Capacity Left	3″
  Bar Capacity Right	2″
  Chuck Size Left	10″
  Chuck Size Right	8″
  Spindle RPM Left	4000
  Spindle RPM Right	4000
  Spindle Horsepower Left	29.9 HP
  Spindle Horsepower Right	24.8 HP
  Control	Fanuc 180is-TB (opt. Funuc 160is-TB)
  Number of Tools Upper	–
  Number of Tools Lower	15
  Live Tooling	Lower Turret
  Y-Axis Milling	–
  Rotating Tool RPM	opt. 4000
  Rotating Tool HP	opt. 7.5
  Machining Spindle (module3 upper)
  Tool Changer Capacity	30 (opt 60)
  Tool Shank	KM63 (opt. C6)
  Axes	Y, B, Z1, X1
  Spindle RPM	8,000 (opt. 12,000)
  Spindle Horsepower	14.75 HP
