RFC1010B-335

General specification Core Material: Ferrite Weight: 3.2 – 3.7 g Packaging: 150 parts per tray Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: RFC1010B-335KE Категорий: Power, Products, Radial lead, RFC RFB, RFC1010B, RFC1010B-335, Unshielded Inductors

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR (Ω) 3		SRF typ (kHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	typ	max	SRF typ (kHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
RFC1010B-335KE	3300	4.2	4.8	750	0.48	0.53	0.57	0.28	0.38

Каталог

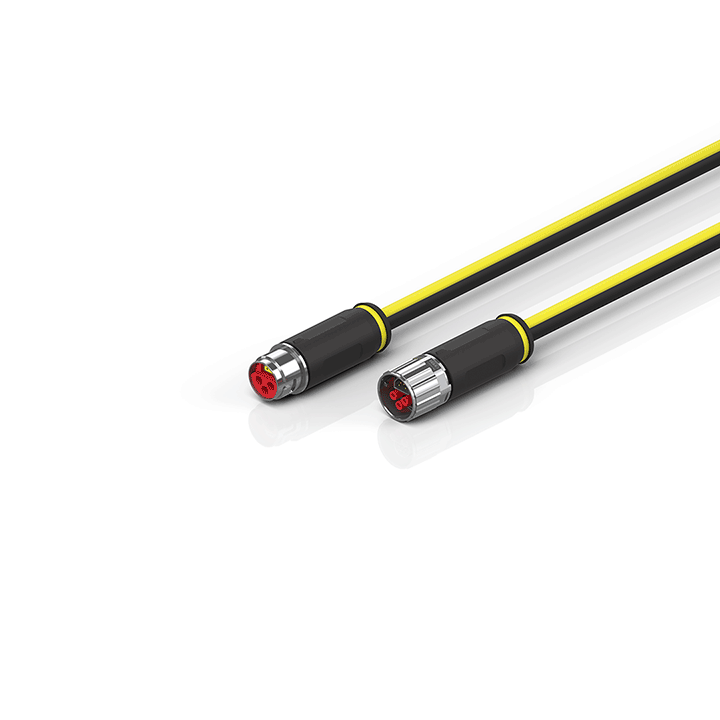

ZK7210-2219-Axxx | B17, кабель ENP, PUR, 3 G 2,5 мм² + (1 x 4 x AWG22), подходит для кабельной цепи, ключ 1 (24В В постоянного тока)
