PWB1010-1

General specification Core Material: Ferrite Weight: 250 – 270 mg Packaging: 250/7reel, 1000/13 reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 5.0 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info

450,00 ₽

Артикул: PWB1010-1LC Категорий: Products, PWB, PWB1010-1, Transformers, Wideband RF Transformers

Описание

Specifications

Electrical specifications at 25C. Measurements are referenced to 50 Ohms.

Part number 1 (Hover for schematics)	L min per winding (H) 2		DCR max (mΩ) 3		Imp. ratio pri:sec	Current rating (mA)	Insertion loss (db)	Bandwidth (MHz)	Isolation Voltage (Vrms)	Schematic
Part number 1 (Hover for schematics)	Pri	Sec	Pri	Sec	Imp. ratio pri:sec	Current rating (mA)	Insertion loss (db)	Bandwidth (MHz)	Isolation Voltage (Vrms)	Schematic
PWB1010-1L_	95	95	200	200	1 : 1	250	0.2	0.03 250	300	A

Каталог

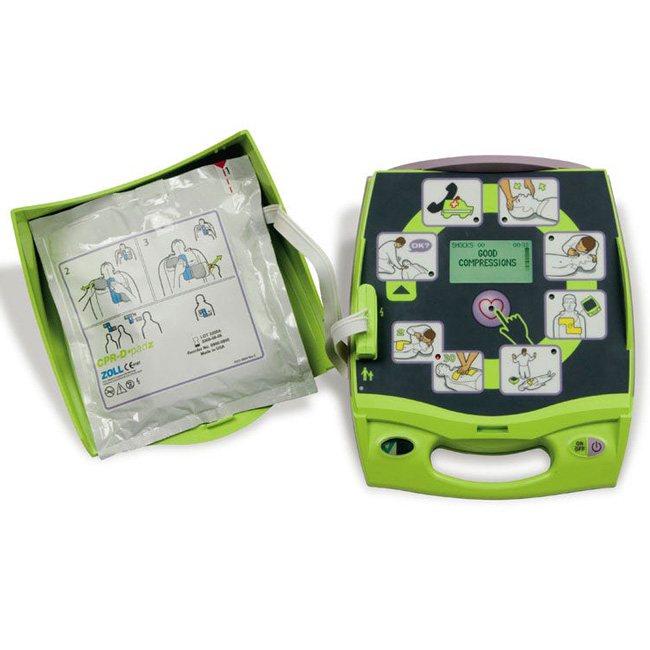

CPR-D-Padz One-Piece Electrode Pad with Real CPR Help
