POE60F-33

General specification Core Material: Ferrite Weight: 5.0 – 5.6 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

675,00 ₽

Артикул: POE60F-33LD Категорий: POE13_60F, Power Over Ethernet, Power Transformers, Products, Transformers, ПОЭ60Ф-33

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,10%)	Inductance min at 1.2 A (H)	DCR max (Ω) 3			Leakage Inductance max (H) 4	Turns Ratio 5	Isolation Voltage (Vrms) 6	Secondary Output (V, A) 7
Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,10%)	Inductance min at 1.2 A (H)	Pri	Sec	Bias	Leakage Inductance max (H) 4	Pri : Sec : Bias	Isolation Voltage (Vrms) 6	Secondary Output (V, A) 7
POE60F-33L_	6	65.0	58.5	0.138	0.007	0.180	3.9	1 : 0.11 : 0.36	1500	3.3 V , 1.8 A

Каталог

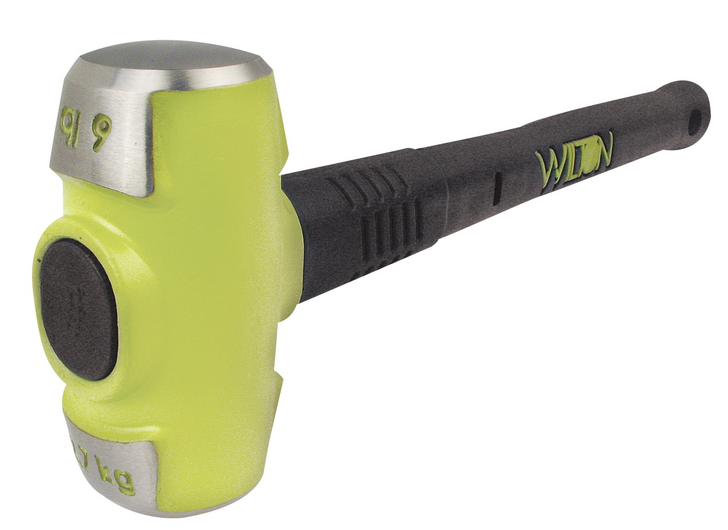

Wilton BASH 6 Pound Sledge Hammer

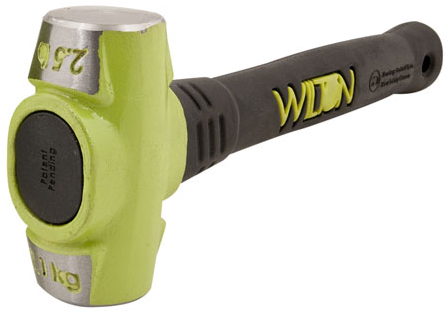

Wilton BASH Sledge Hammer – 2.5 lb Head
