POE60C-25

General specification Core Material: Ferrite Weight: 2.6 – 2.9 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.

675,00 ₽

Артикул: POE60C-25LD Категорий: POE60C-25, POExxC, Power Over Ethernet, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Continuous mode

Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,10%)	Inductance min at 0.6 A (H)	DCR max (Ω) 3			Leakage Inductance max (H) 4	Turns Ratio	Isolation Voltage (Vrms) 5	Secondary Output (V, A) 6
Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,10%)	Inductance min at 0.6 A (H)	Pri	Sec	Bias	Leakage Inductance max (H) 4	Pri : Sec : Bias	Isolation Voltage (Vrms) 5	Secondary Output (V, A) 6
POE60C-25L_	6	177.0	159.3	0.353	0.027	0.660	7.0	1 : 0.083 : 0.333	1500	2.5 V , 2.4 A

Каталог

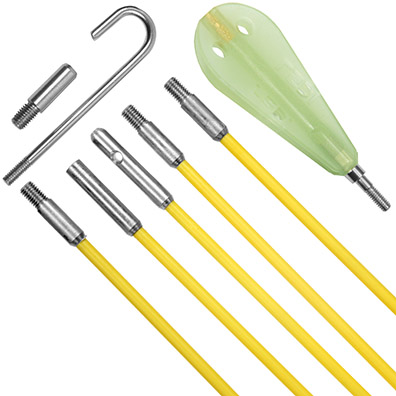

Labor Saving Devices, Inc. Wire Running Kit

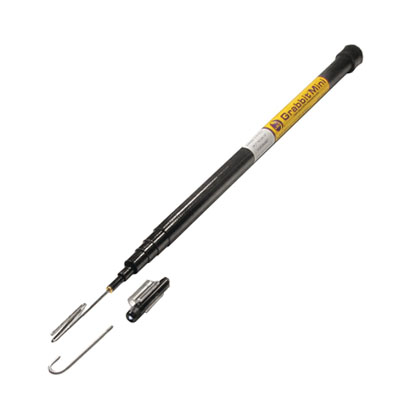

Labor Saving Devices, Inc. Telescoping Pole (10ft)
