POE36PR-12

General specification Core Material: Ferrite Packaging: 150 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 14.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering.

675,00 ₽

Артикул: POE36PR-12ED Категорий: POE36PR-12, POExxPR, Power Over Ethernet, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Flyback Transformers

Part number (Hover for schematics)	Power (W)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Isat (A) 2	DCR max (mΩ)				Leakage Inductance max (H) 3	Turns Ratio	Isolation Voltage (Vrms) 5	Secondary Output (V, A) 6
Part number (Hover for schematics)	Power (W)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Isat (A) 2	Pri	Sec1	Sec2	Aux	Leakage Inductance max (H) 3	Pri : Sec1 : Sec2 : Aux	Isolation Voltage (Vrms) 5	Secondary Output (V, A) 6
POE36PR-12E_	36	41	4.2	62.0	23.0	23.0	85.0	0.28	1 : 0.375 : 0.375 : 0.375	1500	12 V , 1.5 A

Каталог

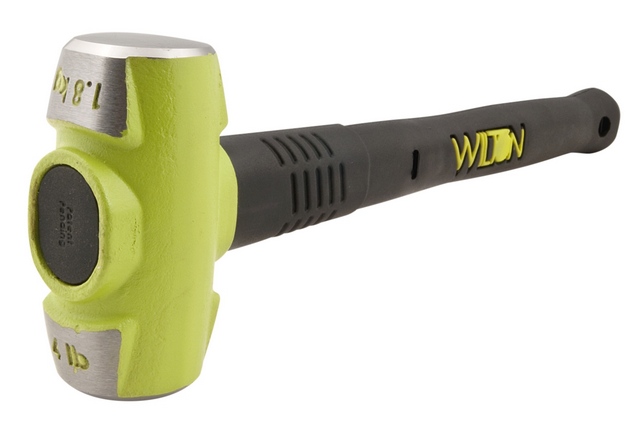

Wilton BASH 4 Pound Head Sledge Hammer

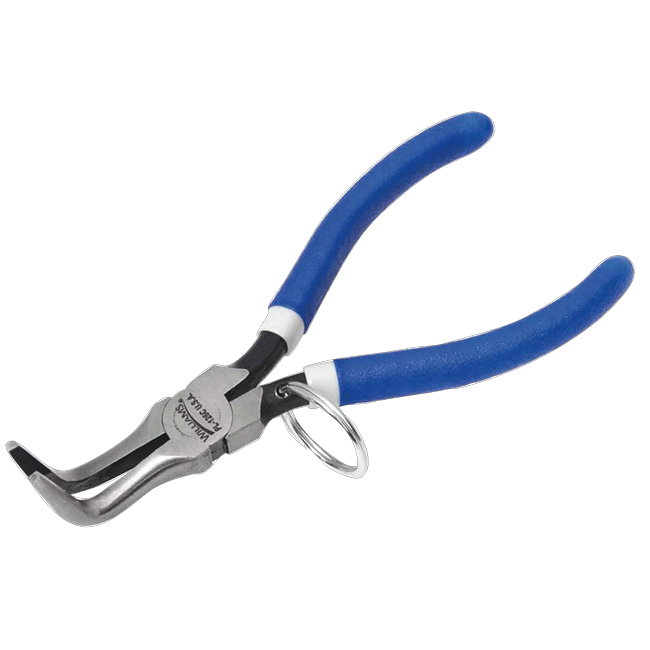

Snap On Williams Curved 6-1/4 Inch Chain Nose Pliers with Safety Ring
