POE13P-50

General specification Core Material: Ferrite Weight: 2.05 g, 3.85 g, 6.15 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

675,00 ₽

Артикул: POE13P-50LD Категорий: POE13P-50, POExxP, Power Over Ethernet, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,10%)	Inductance min at 1 A (H)	DCR max (Ω) 3			Leakage Inductance max (H) 4	Turns Ratio 5	Isolation Voltage (Vrms) 6	Secondary Output (V, A)
Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,10%)	Inductance min at 1 A (H)	Pri	Sec	Bias	Leakage Inductance max (H) 4	Pri : Sec : Bias	Isolation Voltage (Vrms) 6	Secondary Output (V, A)
POE13P-50L_	13	127	114	0.222	0.039	0.348	0.95	1 : 0.25 : 0.5	1500	5 V , 2.6 A

Каталог

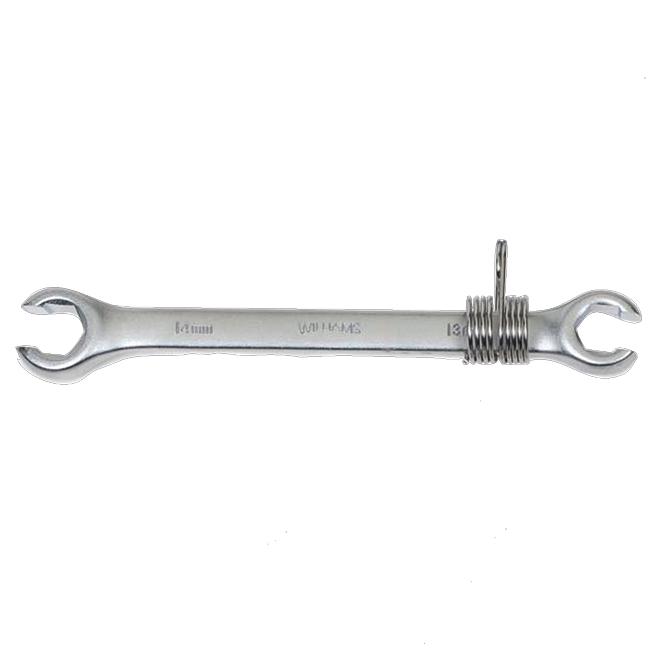

Snap On Williams Double Head Flare Nut Wrench 13 mm x 14 mm with Safety Coil

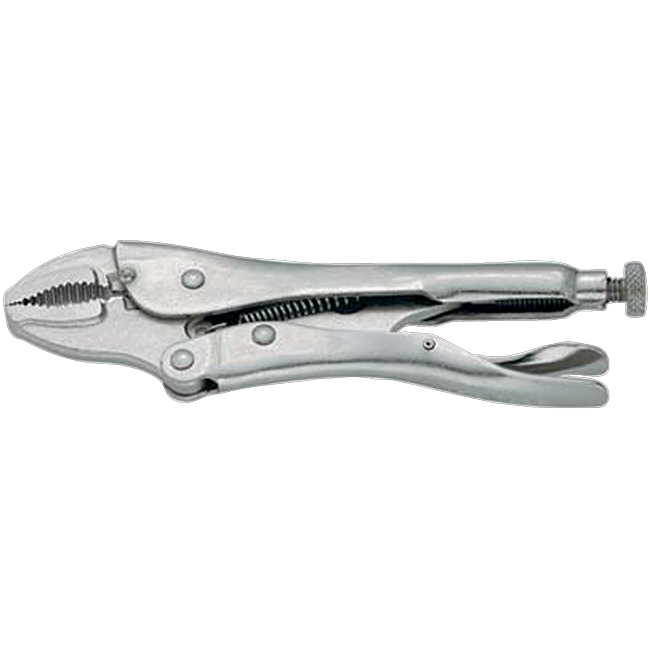

Snap On Williams Curv 7 Inch Locking Plier with Wire Cutter
