POE13F-24

General specification Core Material: Ferrite Weight: 5.0 – 5.6 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

675,00 ₽

Артикул: POE13F-24LD Категорий: POE13_60F, POE13F-24, Power Over Ethernet, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,10%)	Inductance min at 2 A (H)	DCR max (Ω) 3			Leakage Inductance max (H) 4	Turns Ratio 5	Isolation Voltage (Vrms) 6	Secondary Output (V, A) 7
Part number 1 (Hover for schematics)	Power (W)	Inductance at 0A (H) 2 (Tolerance: &plusmn,10%)	Inductance min at 2 A (H)	Pri	Sec	Bias	Leakage Inductance max (H) 4	Pri : Sec : Bias	Isolation Voltage (Vrms) 6	Secondary Output (V, A) 7
POE13F-24L_	13	37.0	33.3	0.086	0.049	0.150	0.4	1 : 0.67 : 0.33	1500	24 V , 0.54 A

Каталог

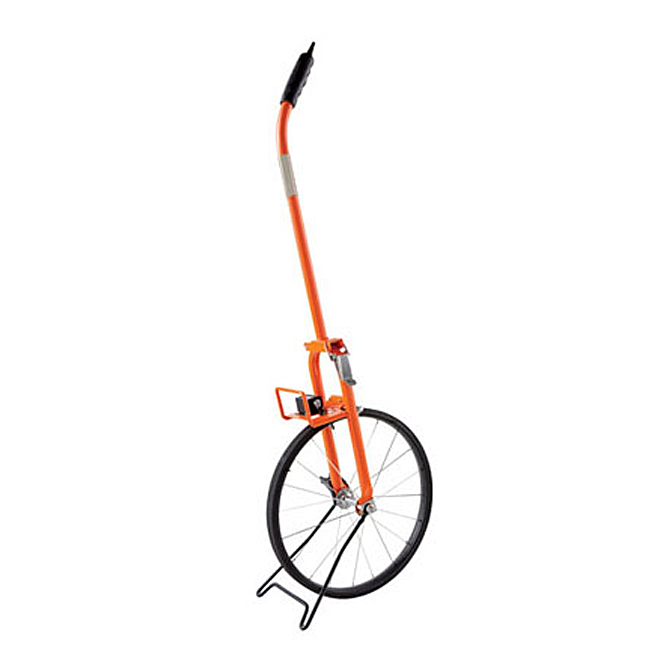

Keson Industries 14-1/2 inch Measuring Wheel
