PL140-114L

General specification Core Material: Ferrite Weight: 10.9 – 12 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Категорий: PL140-114L, Planar Transformers, Products, Transformers, ПЛ140

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Power (W)	Input Voltage (V)	Inductance min (H) 2	DCR max (mΩ) 3			Leakage Inductance max (H) 4	Turns Ratio	Frequency (kHz)	Isolation Voltage (Vrms) 5
Part number 1 (Hover for schematics)	Power (W)	Input Voltage (V)	Inductance min (H) 2	Pri	Sec1	Sec2	Leakage Inductance max (H) 4	Pri : Sec1 : Sec2	Frequency (kHz)	Isolation Voltage (Vrms) 5
PL140-114L_	140	36 75	270	56.0	1.0	1.0	0.45	1 : 0.166 : 0.083	200	1500

Каталог

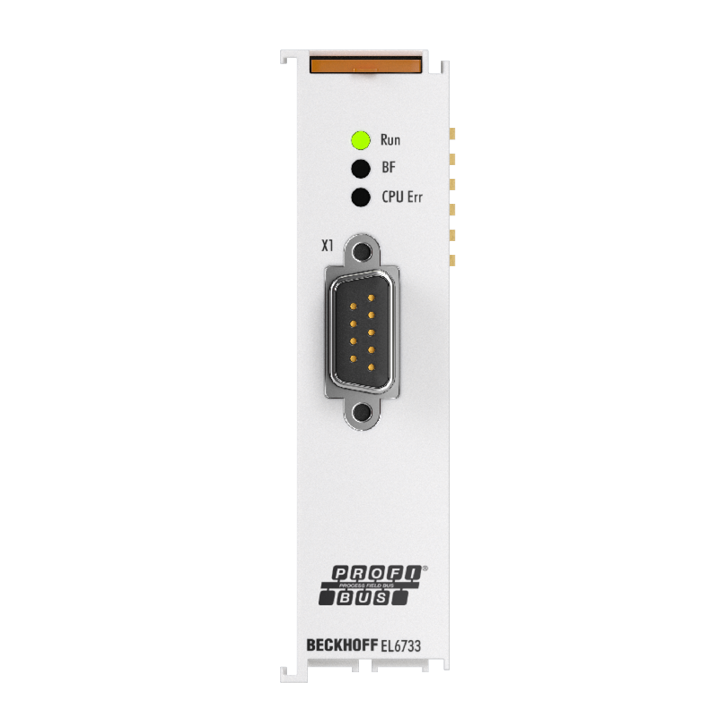

EL6733 | EtherCAT Terminal, 1-channel communication interface, PROFIBUS, master/slave

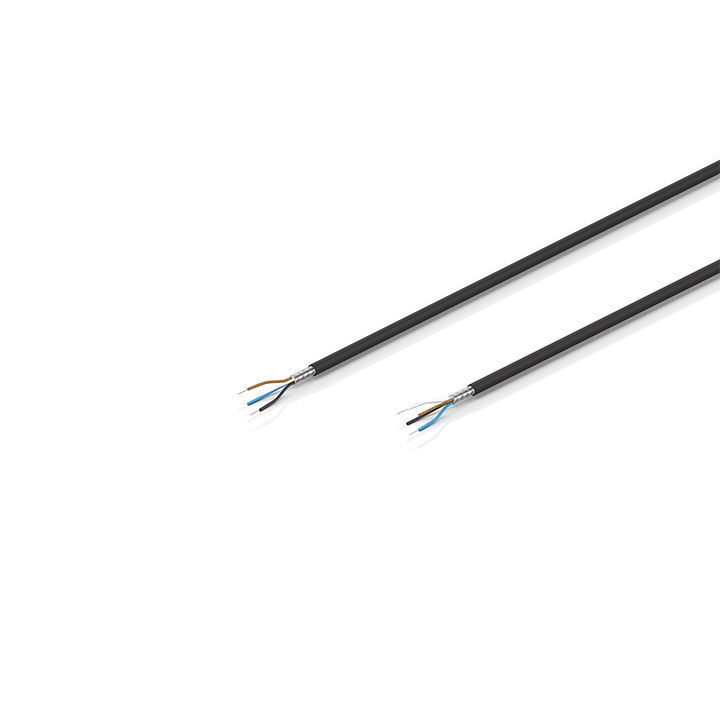

ZB9050 | Power/sensor cable, PUR, 4 x 0.34В mmВІ, drag-chain suitable, black
