NA6083-BLD

General specification Core Material: Ferrite Weight: 11.5 – 13.5 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 12 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Категорий: NA6083-BL, Power Over Ethernet, Power Transformers, Products, RA7129, Transformers

Описание

Specifications

Electrical specifications at 25C.

Flyback Transformer

Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Inductance min at 3.5 A (H)	DCR max (Ω)			Leakage Inductance max (H) 2	Turns Ratio	Isolation Voltage (Vrms) 3
Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Inductance min at 3.5 A (H)	Pri	Sec	Aux/Bias	Leakage Inductance max (H) 2	Pri : Sec : Aux/Bias	Isolation Voltage (Vrms) 3
NA6083-BLD	70	60	0.111	0.006	0.660	1.820	1 : 0.2 : 0.6	1500

Каталог

Большая упаковка канатов PMI

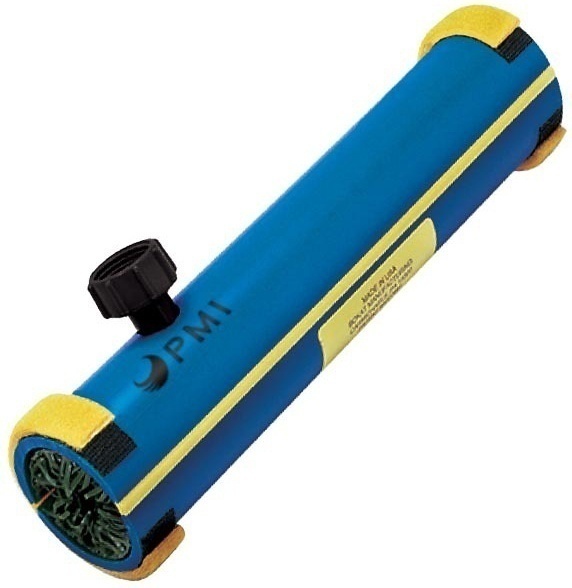

PMI Bokat Rope Washer

NA6083-BLD

Specifications

Flyback Transformer
