MSS6132T-333

General specification Core Material: Ferrite Weight: 0.33 – 0.38 g Packaging: 500/7 reel, 1500/13 reel, Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing, 3.1 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: MSS6132T-333MLC Категорий: Ferrite Drum, MSS6132T, MSS6132T-333, Power, Products, Shielded Inductors, МСС МОС

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
MSS6132T-333ML_	33	0.25	18.0	0.81	0.96	1.1	1.2	1.6

Каталог

EL3403-0333 | EtherCAT Terminal, 3-channel analog input, power measurement, 500В VВ AC, 333В mV, 16В bit

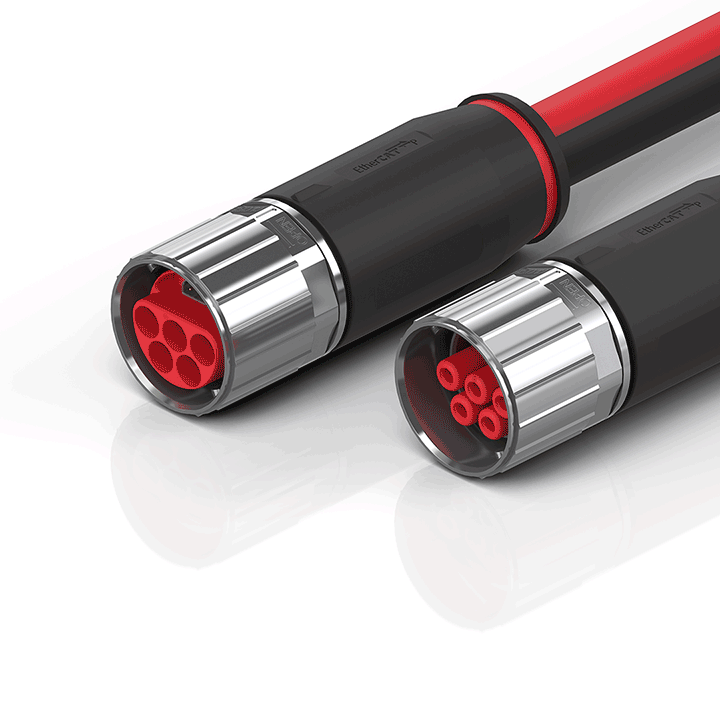

ZK7825-3031-0xxx | B40, кабель ECP, PUR, 5 G 16,0 В мм² + (1 x 4 x AWG22), подходит для кабельной цепи, ключ 2 (400 В В перем. тока)
