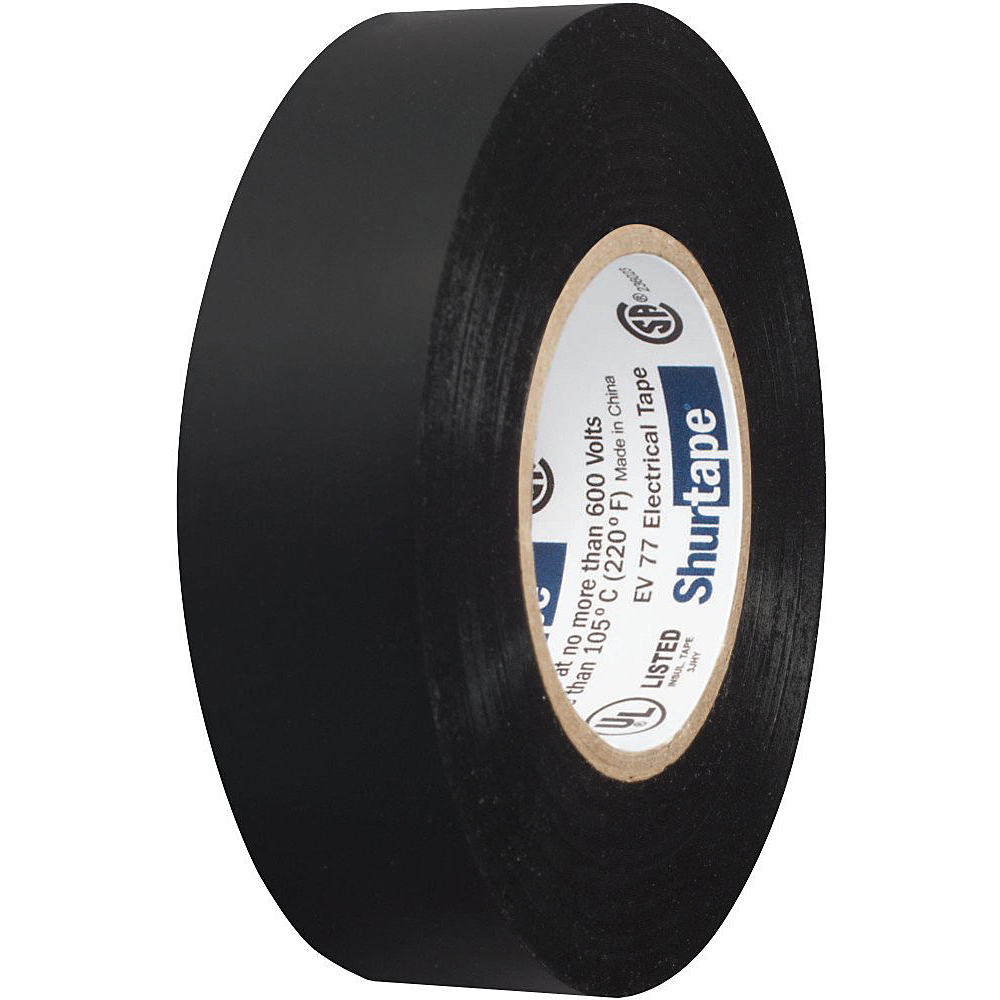

ShurTape Professional Grade Electrical Tape (Black)
01.01.2025

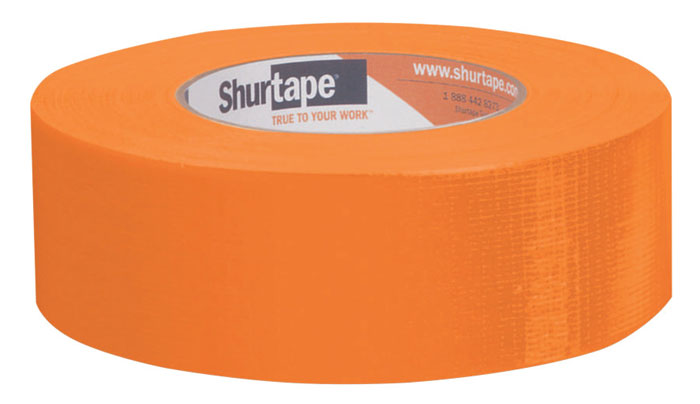

Shurtape General Purpose Duct Tape
01.01.2025
LPR4012-202D
General specification Core Material: Ferrite Weight: 54 – 64 mg Packaging: 1000/7 reel, 3500/13 reel Plastic tape: 12 mm wide, 0.25 mm thick, 8 mm pocket spacing, 1.45 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 4 mm, ID: &le, 2 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
225,00 ₽
Specifications
Electrical specifications at 25C.
For Flyback Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,20%) | DCR (Ω) 3 | Isolation Voltage (V) | Turns Ratio | |
|---|---|---|---|---|---|
| L1 max | L2 max | ||||
| LPR4012-202DMR_ | 2.0 | 0.24 | 1.2 | 100 | 1 : 3 |
For SEPIC Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,20%) | DCR max (Ω) 3 | SRF typ (MHz) 4 | Isat (A) 5 | Irms (A) 6 | |||
|---|---|---|---|---|---|---|---|---|
| L1 | L2 | 10% drop | 20% drop | 30% drop | ||||
| LPR4012-202DMR_ | 2.0 | 0.24 | 1.2 | 31.0 | 1.7 | 1.7 | 1.7 | 1.5 |
