KL2541 | Bus Terminal, 1-channel motion interface, stepper motor, 48В VВ DC, 5В A, with incremental encoder

The KL2541 Bus Terminal is intended for stepper motors with medium performance range. The PWM output stages cover a wide range of voltages and currents. Together with two inputs for limit switches, they are located in the Bus Terminal. The stepper motor terminal KL2541 can be adjusted to the motor and the application by changing just a few parameters. 64-fold micro stepping ensures particularly quiet and precise motor operation. Together with a stepper motor, the KL2541 represents an inexpensive small servo axis.

0,00 ₽

Артикул: KL2541 Категорий: Compact drive technology, Home Page, I/O components, Motion, Products

Описание

Technical dataKL2541KL2541-0006

Technology	compact drive technology
Number of channels	1
Number of outputs	1 x stepper motor, encoder input
Number of inputs	2 x end position, 1 x encoder
Connection technology	direct motor connection
Supply voltage electronics	24 V DC (via power contacts)
Supply voltage power	8вЂ¦48 V DC (external)
Output current	max. 5.0 A
Encoder supply	24 V DC	5 V DC
Step frequency	max. 125,000 steps/s
Step pattern	full step, half step, up to 64-fold micro stepping
Current controller frequency	approx. 25 kHz
Resolution	approx. 5000 positions in typ. applications (per revolution)
Diagnostics LED	error phase A and B, loss of step/stagnation, power, enable
Encoder input signal	5вЂ¦24 V DC, typ.В 5 mA, single-ended
Input frequency	max. 400,000 increments/s (with 4-fold evaluation)
Current consumption power contacts	typ. 35 mA
Current consumption K-bus	typ. 100 mA
Bit width in the process image	input/output: 2 x 16 bit data + 1 x 8 bit control/status
Special features	travel distance control, encoder input
Electrical isolation	500 V (K-bus/signal voltage)
Weight	approx. 100 g
Operating/storage temperature	0вЂ¦+55В°C/-25вЂ¦+85В°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/see documentation
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, UL

Каталог

EM7004 | EtherCAT Terminal module, 4-channel motion interface, axis/servo drive, 24В VВ DC

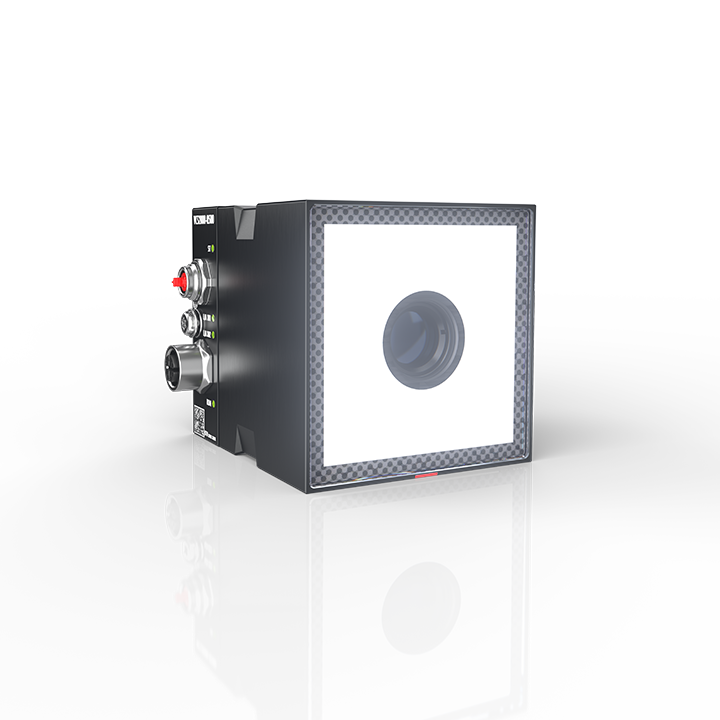

VUI2001-0516 | Area scan camera unit, 2.5 Gbit/s, Sony IMX264, color, 5.0 MP, integrated illumination and variable focus lens, fВ =В 16В mm
