HA3994-AL

General specification Core Material: Ferrite Weight: 25.0 g Packaging: 24 per tray Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.

900,00 ₽

Категорий: HA3994, HA3994-AL, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Inductance min at 5 A (H)	DCR max (Ω) 2				Leakage Inductance max (H) 3	Turns Ratio 4	Volt-time product (V-s)	Isolation Voltage (Vrms) 5
Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Inductance min at 5 A (H)	Pri	Sec1	Sec2	Sec3	Leakage Inductance max (H) 3	Pri : Sec1 : Sec2 : Sec3	Volt-time product (V-s)	Isolation Voltage (Vrms) 5
HA3994-AL	7.50	6.75	0.018	0.020	0.031	0.031	0.22	1 : 0.5 : 1.5 : 1.5	37.5	1500

Каталог

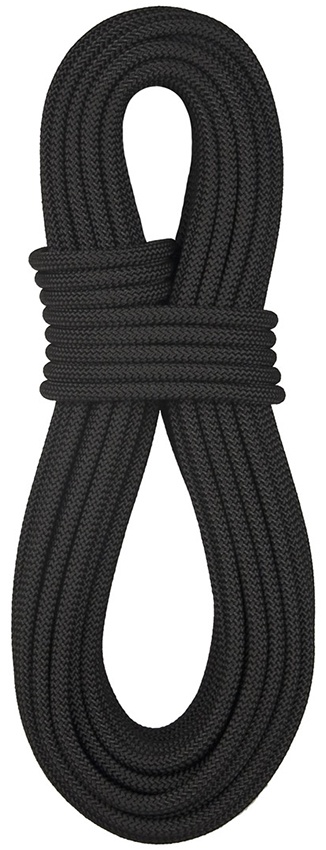

BlueWater 1/2 Inch x 300 Feet Protac Kernmantle Rope

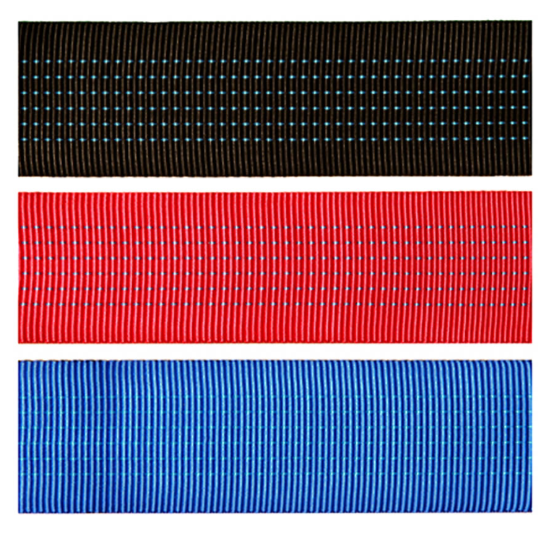

BlueWater Ropes Climb-Spec Tubular Webbing
